Innovate Motorsports LM-1 Digital Air/Fuel Ratio (Lambda) Meter User Manual
Page 21

- 21 -
1
+5V
from
Meter
2
Sensor
5
Input
3
Sensor
1
Input
4
Sensor
4
Input
5
Sensor
2
Input
6
Sensor
3
Input
7
Ground

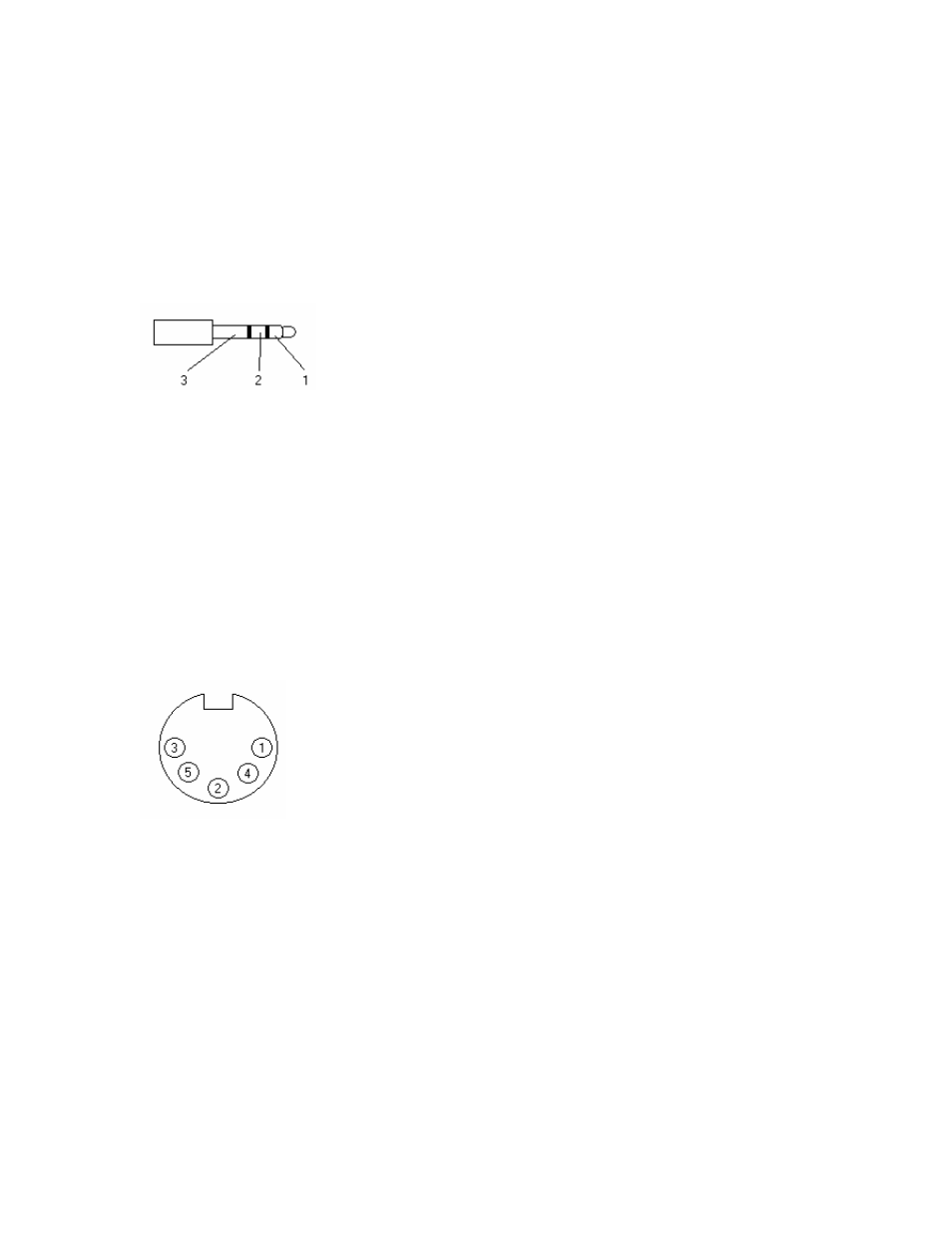

A3. Analog Outputs (3.5mm Stereo connector)
Stereo plug shown
Pin Assignments
Lambda Meter
Stereo
Signal
1
Analog
output
1
2
Analog
output
2
3
Ground
A4. Sensor Interface Connector (Standard DIN-5 female)
Pin Assignments
Lambda Meter Signal
Wire Colors
Bosch LSU4.2
1
Pump+
red
2
Sens+
black
3
Heater
-
white
4
Pump-/Sens-
yellow
5
Heater
+ gray
A5. Power Connector (3.5mm power connector female)
