Appendix a: lm-1 cable pinouts – Innovate Motorsports LM-1 Digital Air/Fuel Ratio (Lambda) Meter User Manual
Page 20
- 20 -
Appendix A: LM-1 Cable Pinouts

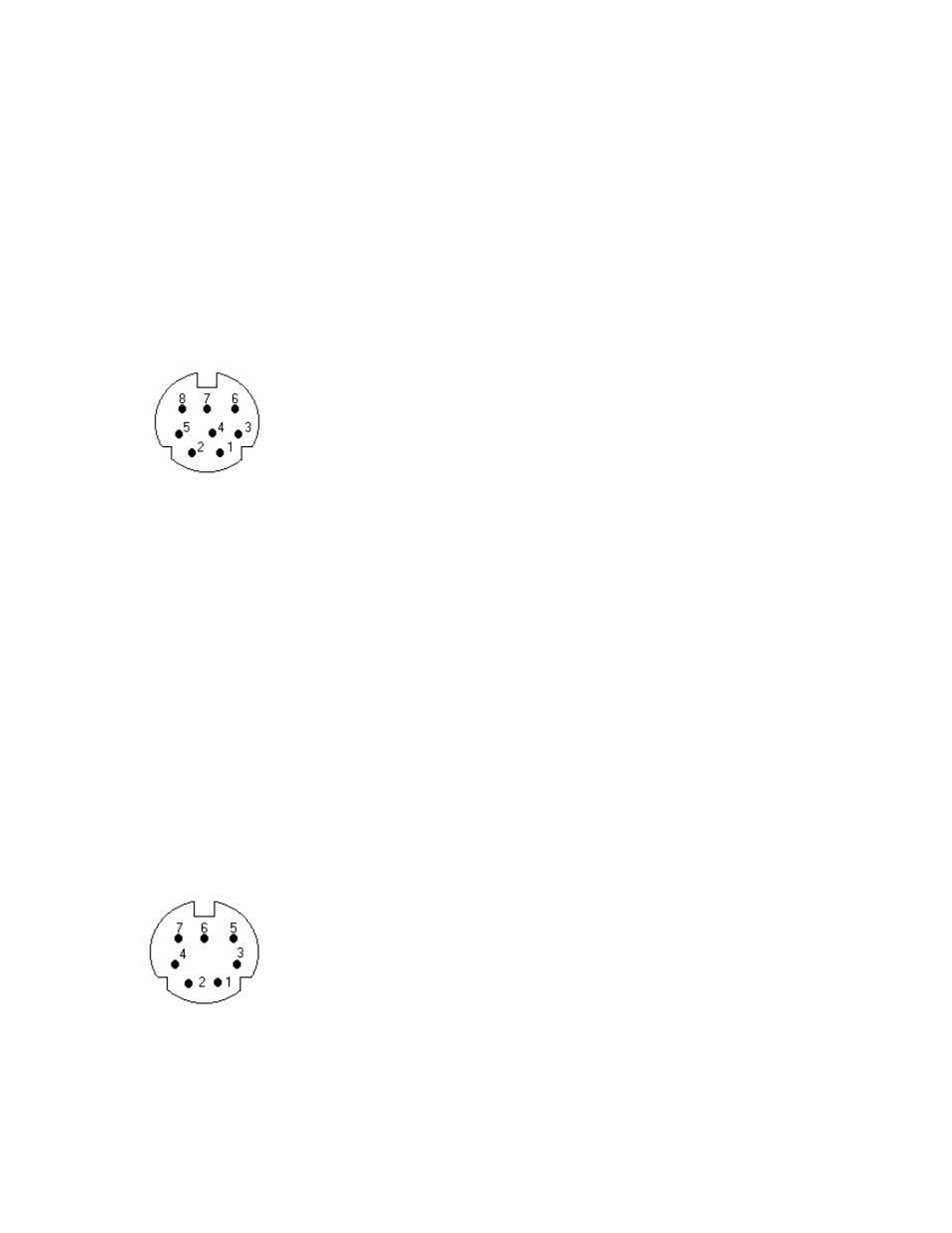

A1. Serial Interface (Mini-DIN8 female connector)
Serial Interface:
19.2 kBaud
8 Data bits
1 Stop bit
no parity
no hardware handshaking
Pin Assignments
Lambda Meter
Mini-DIN8
Signal
Computer DB-9 Computer DB-25
1 n/c
n/c n/c
2
CTS 8
5
Connected
to
+5V
3 RxD
2 3
4 GND
5 7
5 TxD
3 2
6 GND
5 7
7 n/c
n/c n/c
8 n/c
n/c n/c
A2. Aux Input Connector (Mini-DIN7 female connector)
Note: Connect to signal of maximum 5V only.
Serious damage to meter and/or sensor may result if connected to signals of more than 5V
amplitude.
Pin Assignments
Lambda Meter
Mini-DIN7
Signal
