- 7 -

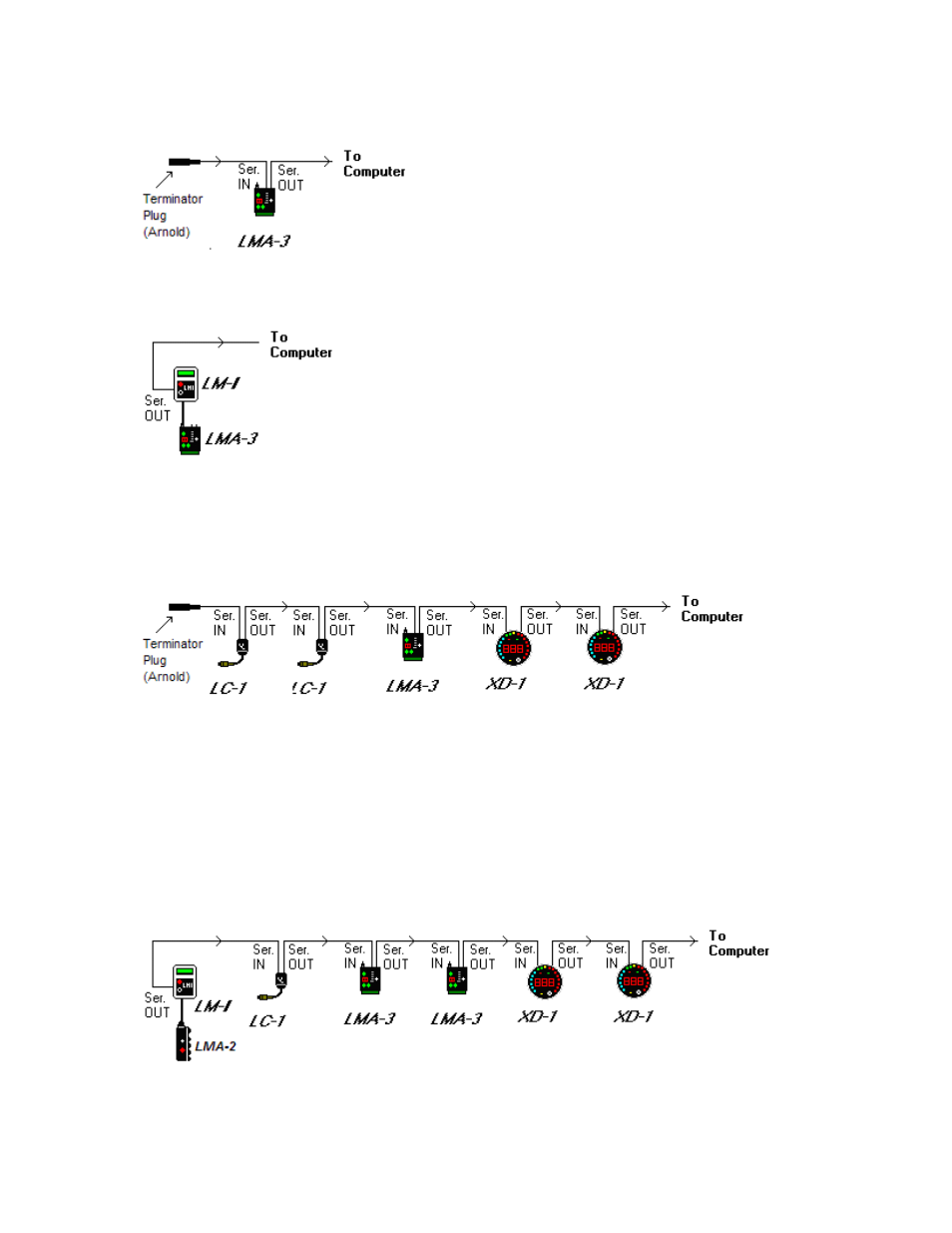

2.1 Log-Chain of 5 channels consisting of LMA-3 alone.
2.2 Log-Chain of 6 channels consisting of LMA-3 and LM-1
This allows to record LMA-3 data in the LM-1.
2.3 7-channel Log-Chain example with 2 AFR channels.
Notice that the LC-1’s are connected BEFORE the first LMA-3. LC-1’s should always be
connected before the first LMA-3.
2.4 17-Channel Log-Chain example
The example chain consists of a LM-1/LMA-2, a LC-1, two LMA-3’s and 2 XD-1’s. In this case
the chain has 17 channels (6 from LM-1, 1 from LC-1 and 5 each from the two LMA-3’s).
Devices attached to the LM-1’s analog input count as being part of the LM-1’s 6 channels. They
don’t count extra. XD-1’s do not contribute any channels, so you can add as many as needed.
