Last, “H” indicates that the unit is the MTS head unit. If the unit is not head this indicator
will appear as a “-“

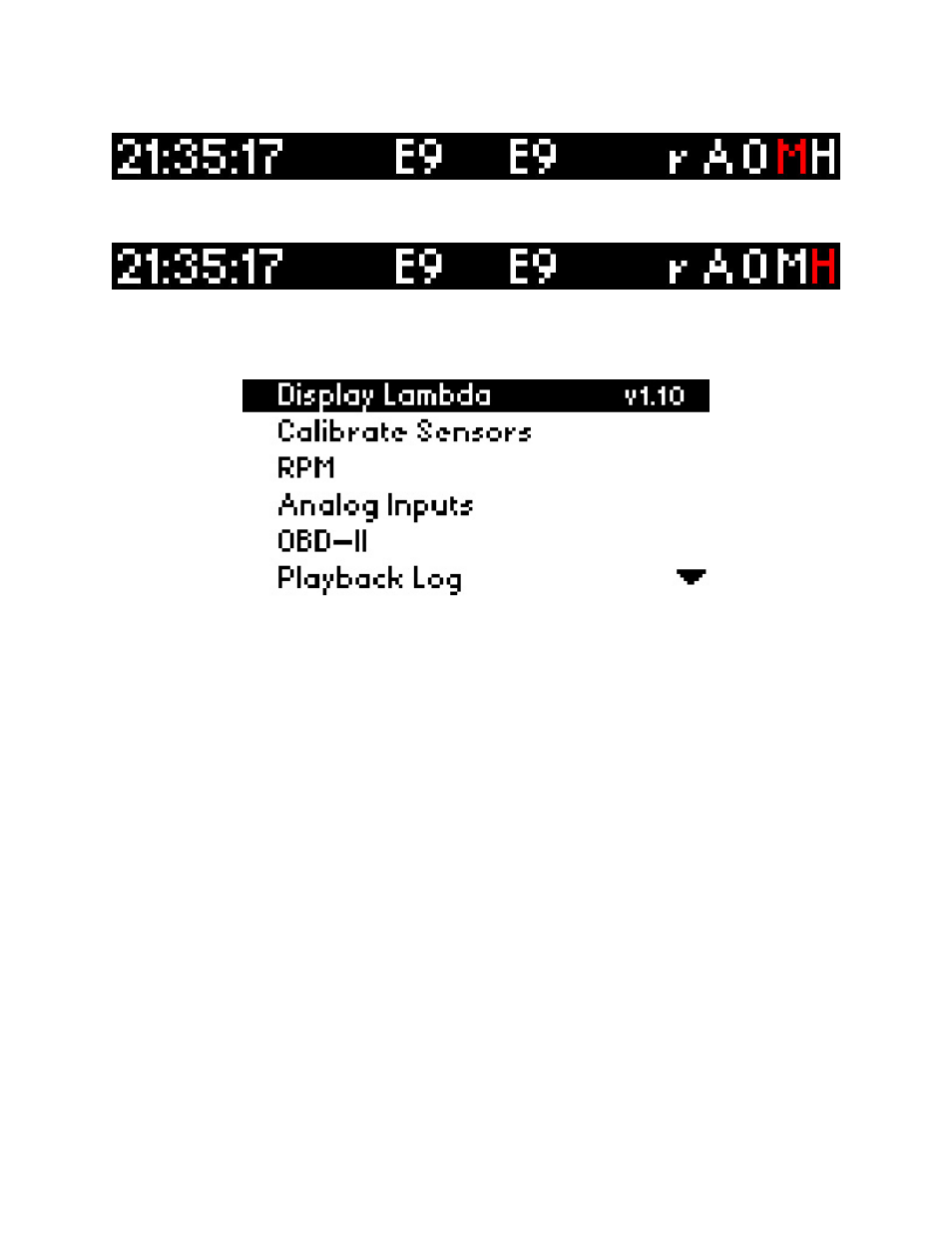

1.3 Configuration Menu Screen
To enter the Configuration Menu Screen press and hold the Mode button.
Navigating the Menu:
“Enter” Accepts
“Cancel” Returns one menu level
“Mode” Returns to Main Screen
Arrows adjust selection or value
“Record” has no effect
When “Mode” is first pressed, the following choices appear:
• Display AFR or Lambda. The factory default setting is AFR.
• Calibrate Sensors - Free Air Calibrate ALL O2 sensors connected will be
calibrated
• RPM – Enable/Disable RPM and Configure RPM.
• Analog Inputs- Enable/Disable Analog Inputs and Configure Inputs.
• OBD-II - Configure Number of Channels (0-16), Channel Use, Get/Clear DTC
codes Display in Metric/Imperial Units, and Start Trace File.
• Playback Log
• Reverse/Normal Display
• Set Date/Time - Set the current date/time
Important Note: Entering the Configuration Menus will stop recording and
suspend MTS packet output
