5

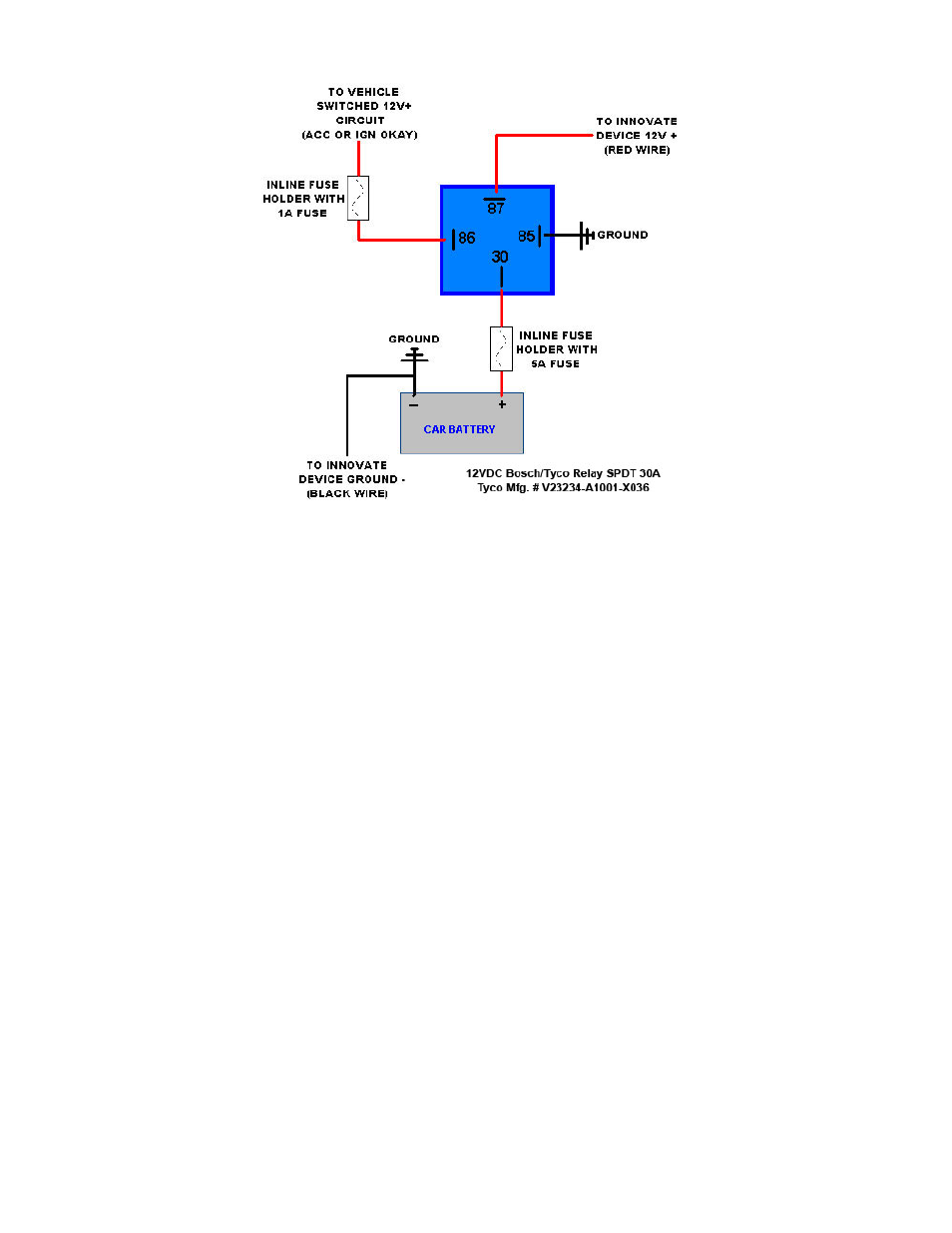

2.2.1 Single Innovate Device Relay Wiring Instructions
3 Sensor Placement
Optimum bung placement will vary from application to application, but using
the guideline below will ensure the longest sensor life with the most accurate
readings. Using a bung is the preferred method for mounting the oxygen
sensor in all applications.
outlet (after the collector), or 24 inches after the turbocharger if so
equipped. The bung should be welded before the X or H pipe if so
equipped.
o’clock and 3:00 o’clock position. Welding the bung in the lower
section of the exhaust pipe can result in sensor damage caused by
condensation making contact with the sensor’s internal heating
element.
