Hootoo HT-IP210F - Manual (Page 21)

Security Solutions Partner
21

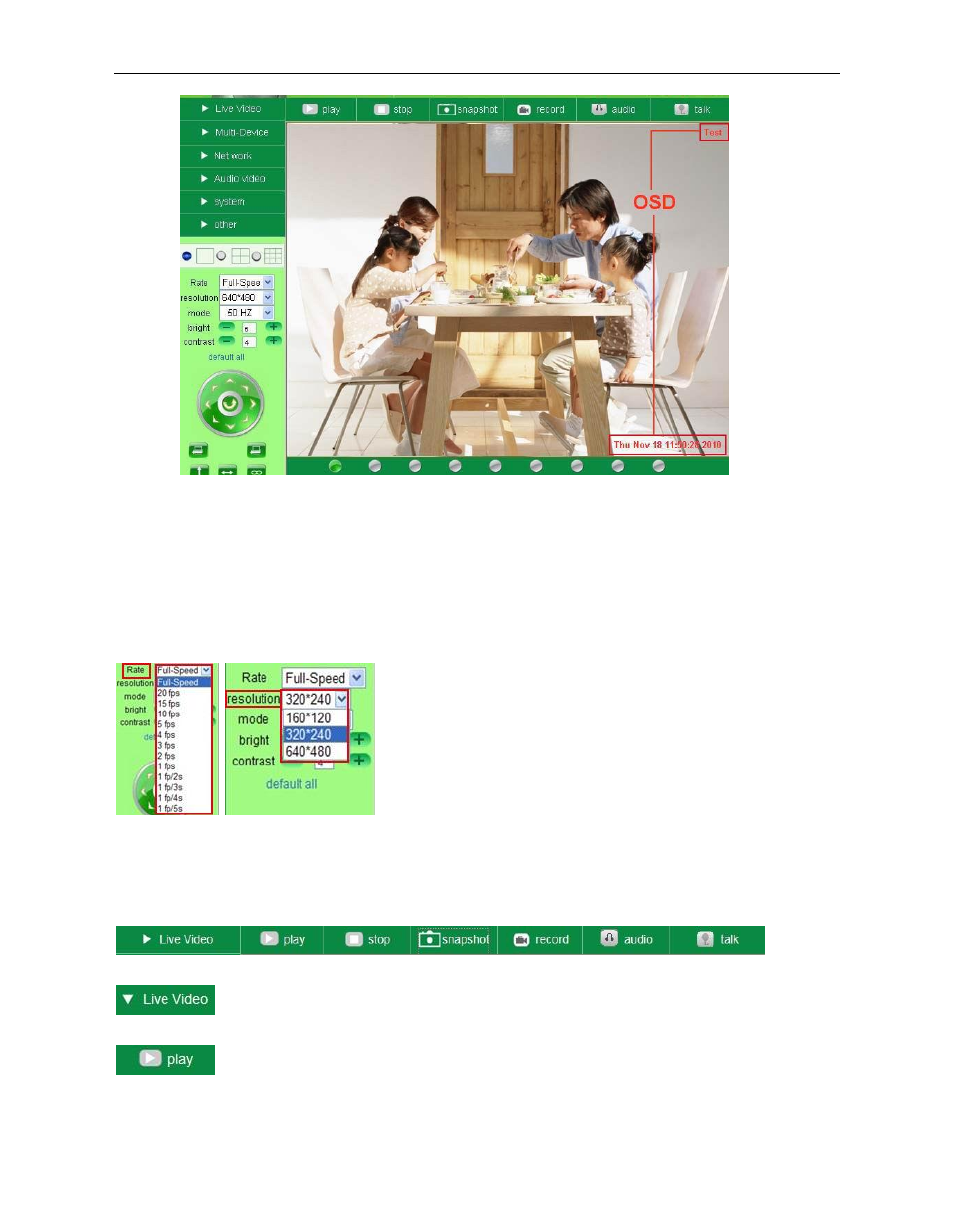

Figure 3.7
Rate and Resolution:
Rate: Set video frame rate here, from “full-speed to 1fp/5s”. (Figure 3.8)
Resolution: Set the resolution to be 160*120/ VGA(640*480)/ QVGA (320*240). (Figure 3.9)
NOTE: When doing recording, Rate and Resolution parameter settings is very helpful for getting small
sized recording files, the lower parameter to get the smaller file.
Figure 3.8 Figure 3.9
TOP Menu :
Figure 4.0
: Click it to get live video. When you want to go back to live video from other menus, just click it.
Only under live video, you can do the operations on the right side, such as play, stop, snapshot etc.
: Click it to get into play mode, when you click stop icon, the video will be stopped, then click
play icon, it will show the video again.
