4. Instructions for Use
1. Assembling the EyeDaptor FP7000-F67
a. Place the 67mm Add-On Plate on a flat and protected surface, so that the thread is facing down and
the concaved side of the plate is facing up (image #1).
b. Place the EyeDaptor FP7000 over the 67mm Add-On Plate so that the adaptor configuration is facing
up and the flat side of the adaptor is facing the 67mm Add-On Plate (image #2).
c. Gently turn the EyeDaptor FP7000 around, till the screw holes on the EyeDaptor FP7000 are aligned
with the screw holes on the 67mm Add-On Plate.
d. Insert the 6 screws included into the aligned screw holes of the EyeDaptor FP7000 and 67mm Add-
On Plate. Use the screwdriver included in order to tighten the screws (image #3). Tighten the screws
enough in order to keep them from falling out, but don’t tighten them too strongly, as this might
cause damage to the products.
e. Once the EyeDaptor FP7000-F67 is assembled, lens accessories featuring a 67mm male thread can
be mounted on the adaptor by gently screwing them into the female thread (image #4).
Important Notice
Please use the utmost care and do not use excessive force when assembling and
disassembling the different accessories, in order to not cause any damage to the
product.

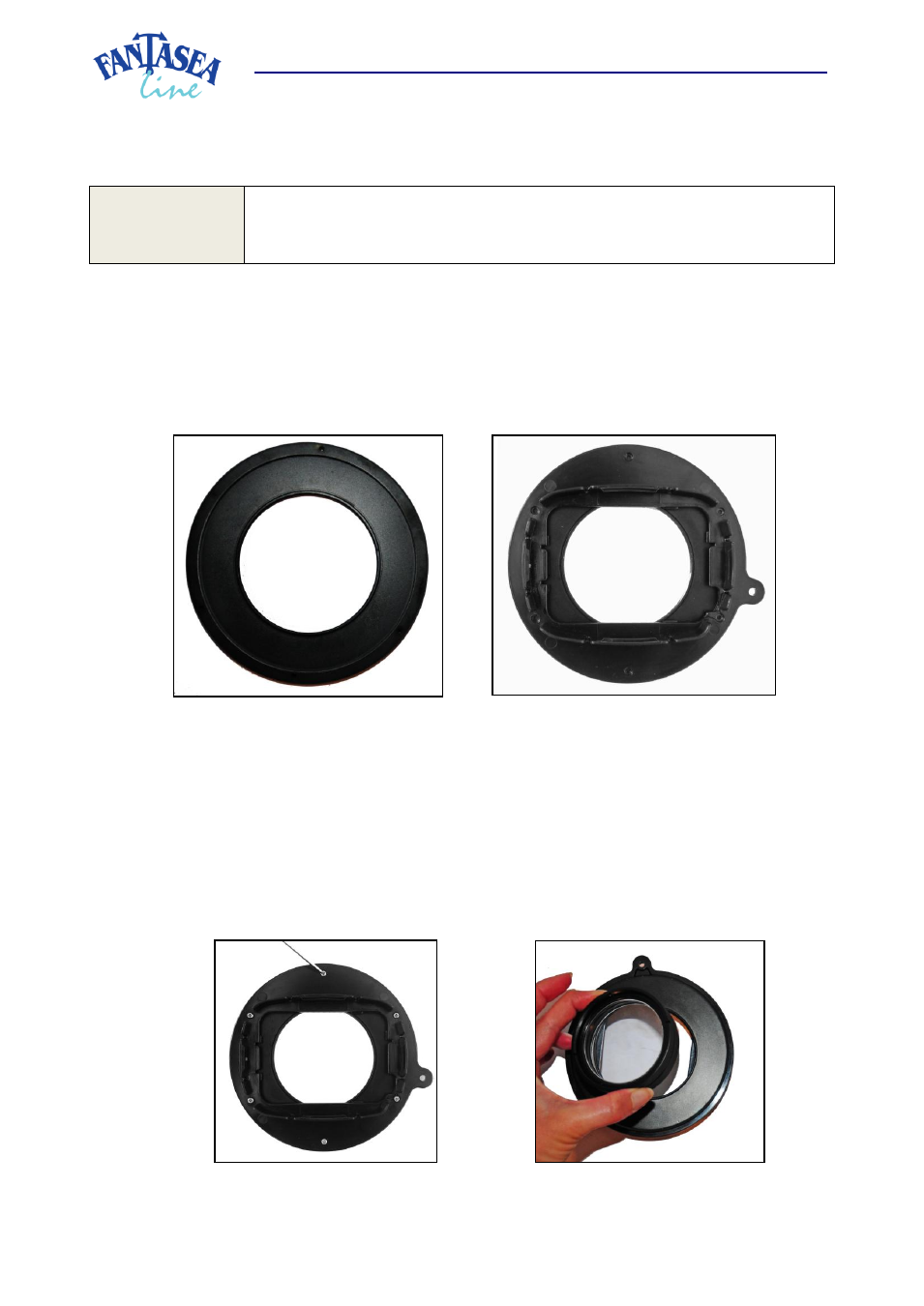

Image #1 Image #2
Image #3 Image #4
