Page 4

Installation and Set up

Unpacking your display

Your Public View display comes with the remote control and power connector. Carefully

remove the display from it’s packing and set the unit on a firm surface. Save the packing in

case of future service requirements.

NOTE: Any shipment of the display must have the protective plastic cover taped to the

front of the display to prevent shipping damage.

Installation of the display

The display should be located where it will have the most effect on deterring potential

shoplifting. Keep in mind the lighting conditions, viewing area, ease of installation, and

distance from the power supply when choosing a location. The display is compatible with

many available wall and ceiling mounts, consult your dealer for suggestions. The rear of the

display has a VESA 100mm mounting pattern that accepts M4 screws. Please refer to the

installation instructions on the particular mounting bracket and details of how to install.

Connecting the display

This display requires a 24V DC power supply. Locate the applicable AC to DC power supply

in a suitable location where there is an AC power source, and access to run the low voltage

cable to the display.

For single unit power supplies, you will need to keep the distance from the power supply

to the display less than 25 ft. For multiple unit power supplies, the power supply can be

located at further distances from the displays at a central location. Please refer to the specific

power supply installation instructions for recommended wire size and distances.

Caution: Do not connect the power connector to the display when energized,

doing so may damage the electronics inside the display. Connect power supply

to unit, then to 120v wall outlet.

POWER

AUTO

DOWN

SD Card

POWER

AUTO

DOWN

SD Card

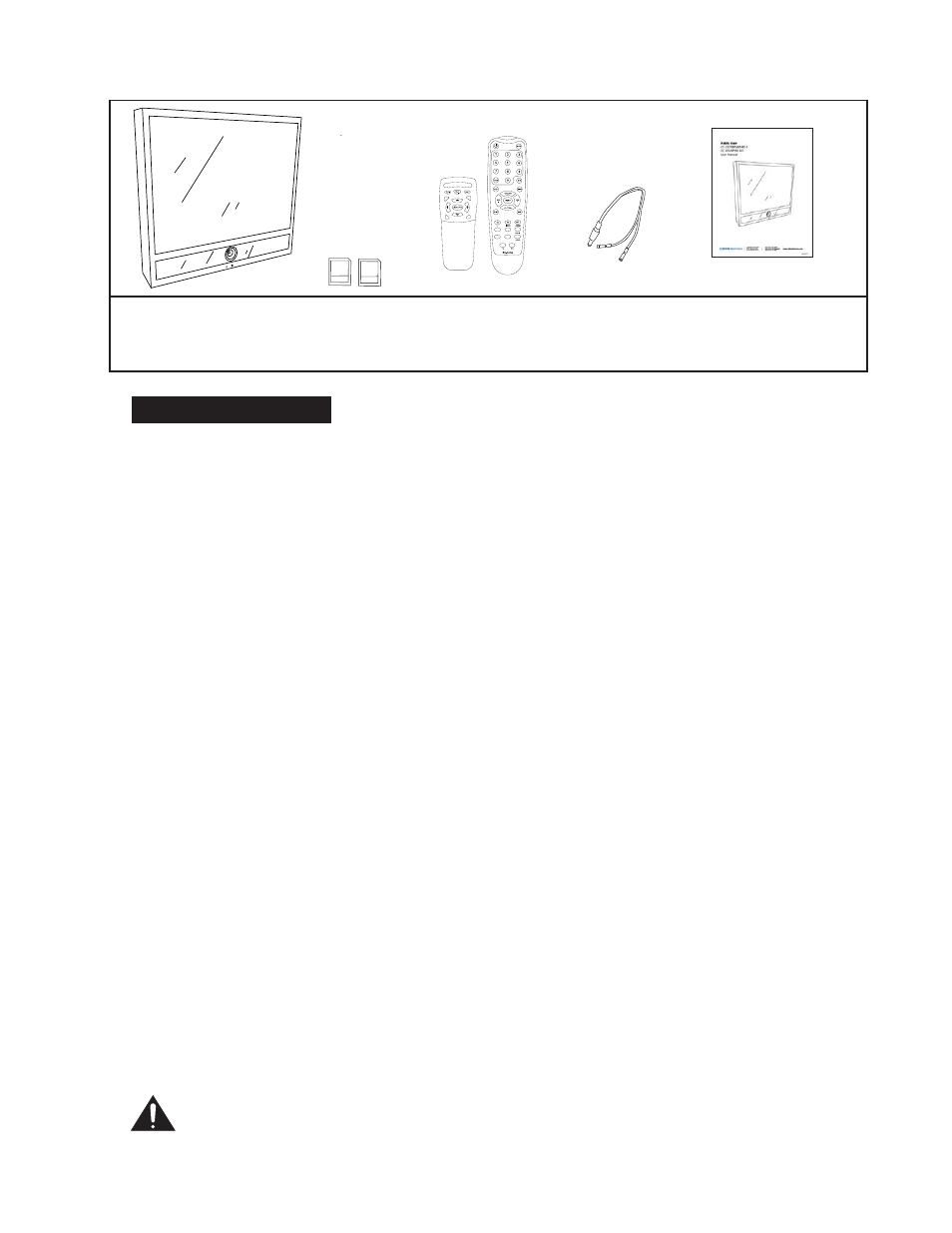

CE-DVRPVM

2 SDHC Cards

• DVR (16GB)

• Video (2GB)

Remote Controls

• DVR

• Display

User Manual

Power Pigtail

(for Hardwiring)

POWER

AUTO

DOWN

SD Card

PACKAGE CONTENTS

POWER

AUTO

DOWN

SD Card
