Lens (selection)

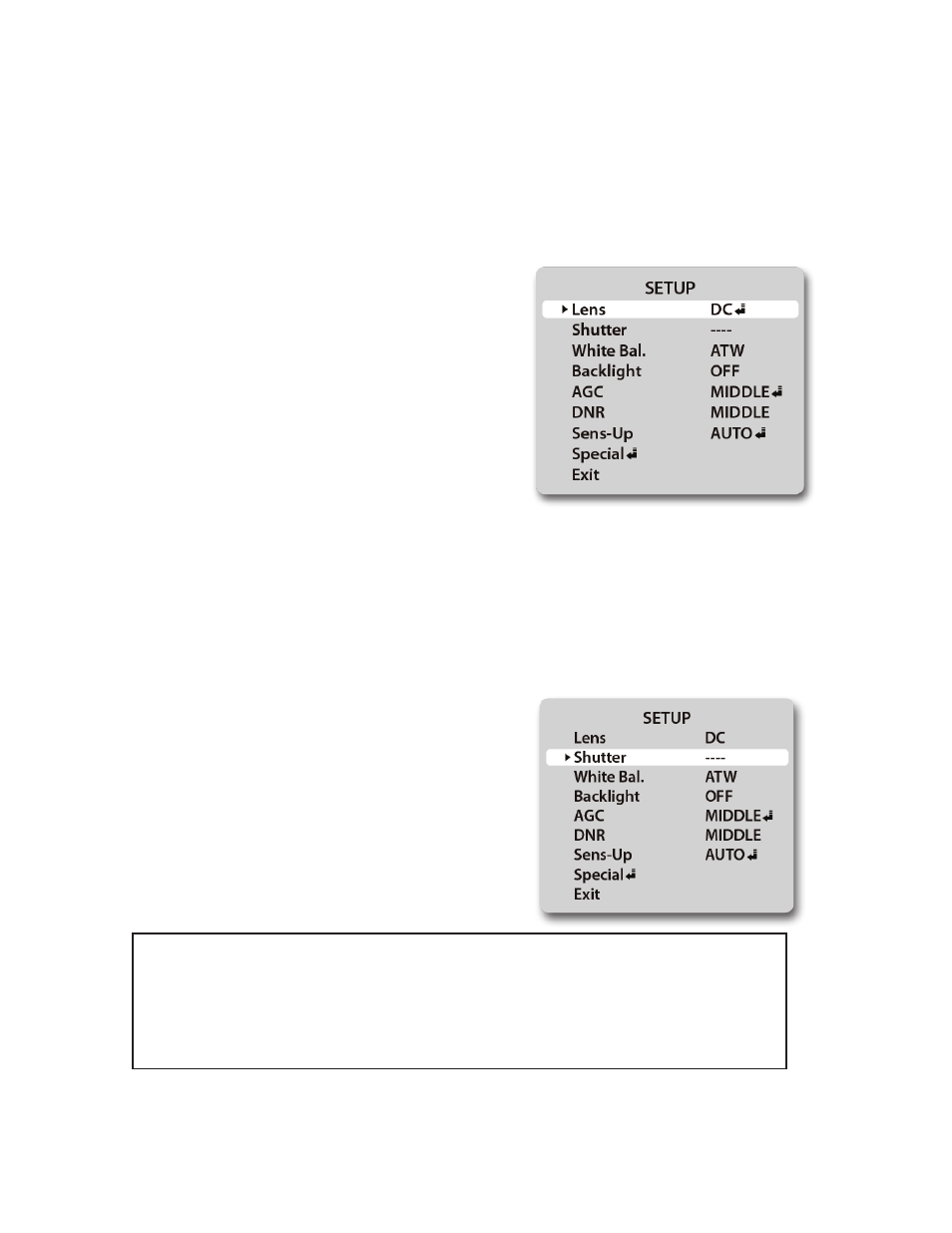

1. When the SETUP menu is displayed on the screen, position the arrow to point to LENS by using the

UP or DOWN button.

2. You may select the type of lens you wish to use by pressing the LEFT or RIGHT button.

3. Press the SET button to return to previous menu.

DC: Auto iris lens selection-

• The optimum level of brightness can be

adjusted within the range of 1 ~ 70.

MANUAL: Manual lens selection-

• If MANUAL mode is selected, the brightness

can be adjusted in ESC mode.

Shutter (condition and speed control)

1. When the SETUP menu is displayed on the screen, position the arrow to point to SHUTTER by

using the UP or DOWN button.

2. Select the shutter mode by pressing the LEFT or RIGHT button.

FLK: Select FLK mode when flickering occurs

on the screen due to an imbalance between

illumination and frequency.

NTSC Model:1/100, PAL Model 1/120

ESC: When ESC mode is on, the shutter speed

is controlled automatically according to the

brightness of the screen.

3. Press the SET button to return to previous menu.

• While using the internal synchronous system, if the shutter setting is on ESC, and

the camera is directly facing a bright fluorescent light, the image on the screen

can be adversely affected. Therefore, choose the installation location with care.

• When MANUAL mode is on, the SENS-UP function does not operate.
