I-155 TS2

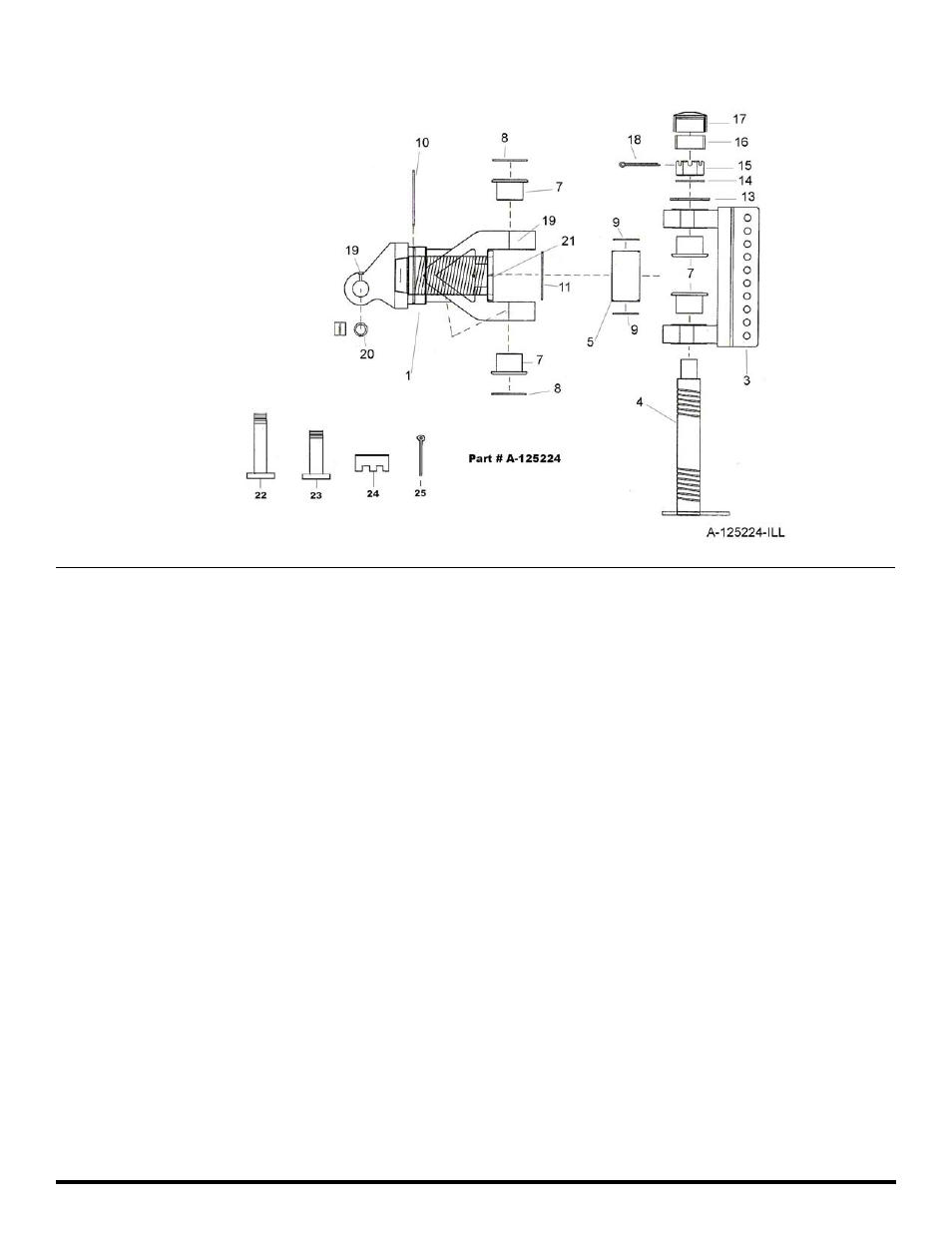

Icon Swivel Hitch (Optional) Part Number A125224
Key Number Part Number Description
01 A125224-01 Yoke: A-Frame swivel
03 A125224-03 Bracket: 10 Hole
04 A125224-04 Pin: Main Vertical
05 A125224-05 Spacer: 6”
07 A125224-07 Bushing
08 A125224-08 Seal: O-ring
09 A125224-09 Seal: O-ring
10 A125224-10 O-ring
13 A125224-13 Spacer: 6”
14 A125224-14 Washer: 2 1/2”
15 A125224-15 Nut: Slotted 2-1/2” NC
16 A125224-16 Sleeve: 2” Rubber
17 A125224-17 Cap: For Vertical Pin
18 A125224-18 Pin: Cotter 3/8 x 5”
19 14505 Grease Fitting Straight
20 A125056-24 Bushing
21 AHF-00027 Zerk 45°
22 A123299-07 Pin: Two Ear Drawbar to Hitch
23 A123299-08 Pin: Four Ear Drawbar to Hitch
24 AFN-00014 1 1/2" Slotted Nut
25 AFP-00001 1/4" X 3" Cotter Pin
Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717
Page #6
