I-155 TS2

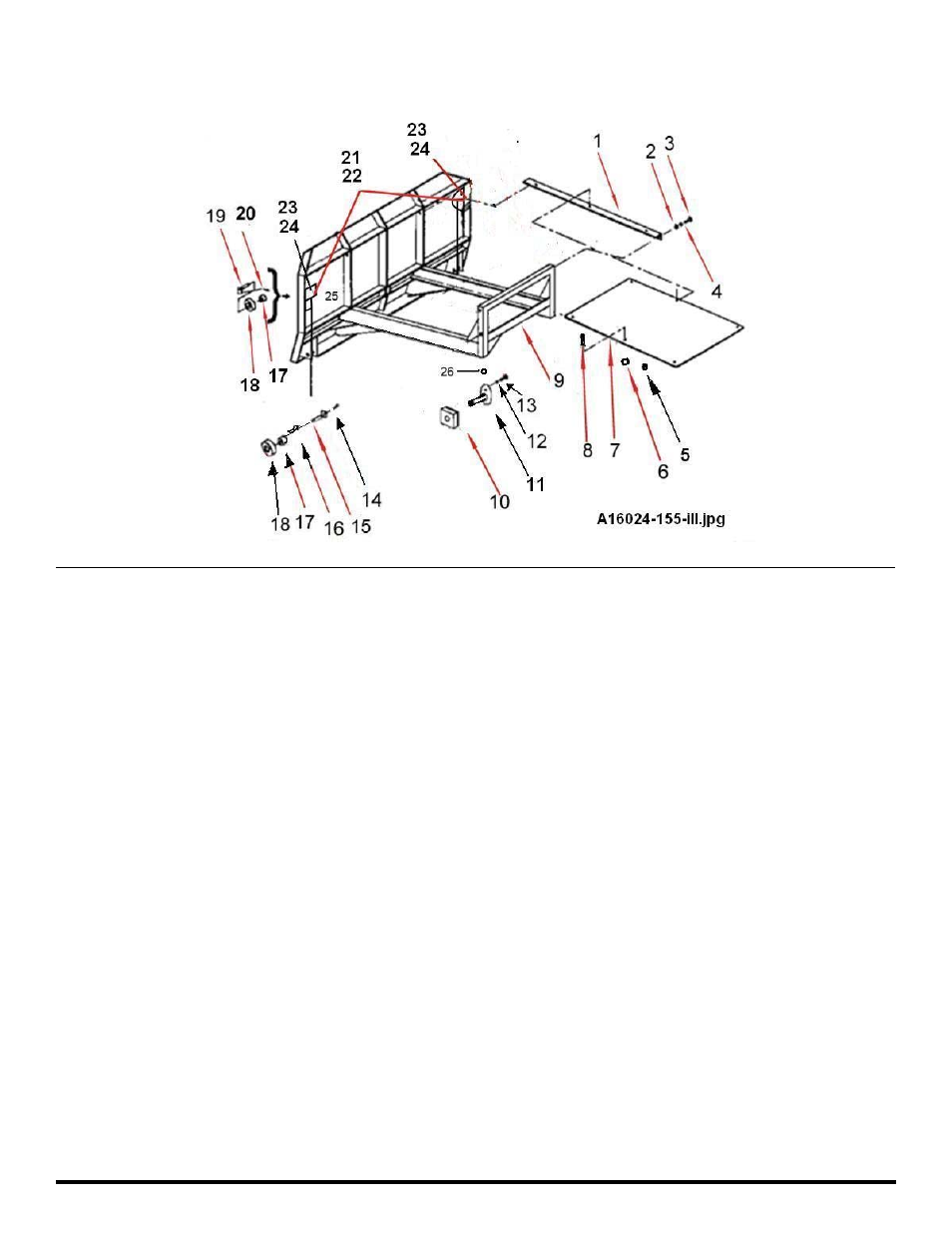

Pushoff Gate Assembly
Key Number Part Number Description
1 A14022 Brace
2 AFN-00006 Nut: 3/4” NC
3 AFB-00037 Bolt: 3/4” NC x 2” Lg.
4 AFW-00002 Lockwasher: 3/4”
5 8100 Lockwasher: 1/2”
6 AFN-00015 Nut: 1/2” NC
7 A14023 Dirt Shield
8 AFB-00015 Bolt: 1/2” NC x 1-1/2”
9 A16024 Pushoff Gate: Model I-150
10 A123353 Wear Pad
11 A123305A Pin: 1-1/4 X 2-3/4” for Wear Pad
12 8100 Lockwasher: 1/2”
13 AFB-00033 Bolt: 1/2 NC X 2-1/2”
14 AHF-00028 Grease Fitting: 1/8” NPT -90 degree
15 A6007A Pin: 1-1/4” x 4-1/8” Lg.
16 AFP-00001 Cotter Pin: 1/4 X 3-1/2”
17 A10163 Bushing: 1-3/4” OD x 1-1/4” ID
18 A10164 Roller: 4-1/4 OD X 1-3/4 ID.
19 A123323-21 Pin: 1-1/4 X 4 1/8” Tab Head
20 7036 Bolt: 1/2 NC X 2”
21 A125020 Remote Grease Lines, 32”
22 A125021 Remote Grease Lines, 54”
23 A125019 Grease Fitting 1/4 x 28.54 Long
24 A125026 BulkHead Nut
25 A123323-40 Double Hole Tab
26 7500 1/2" Nut
