I-155 TS2

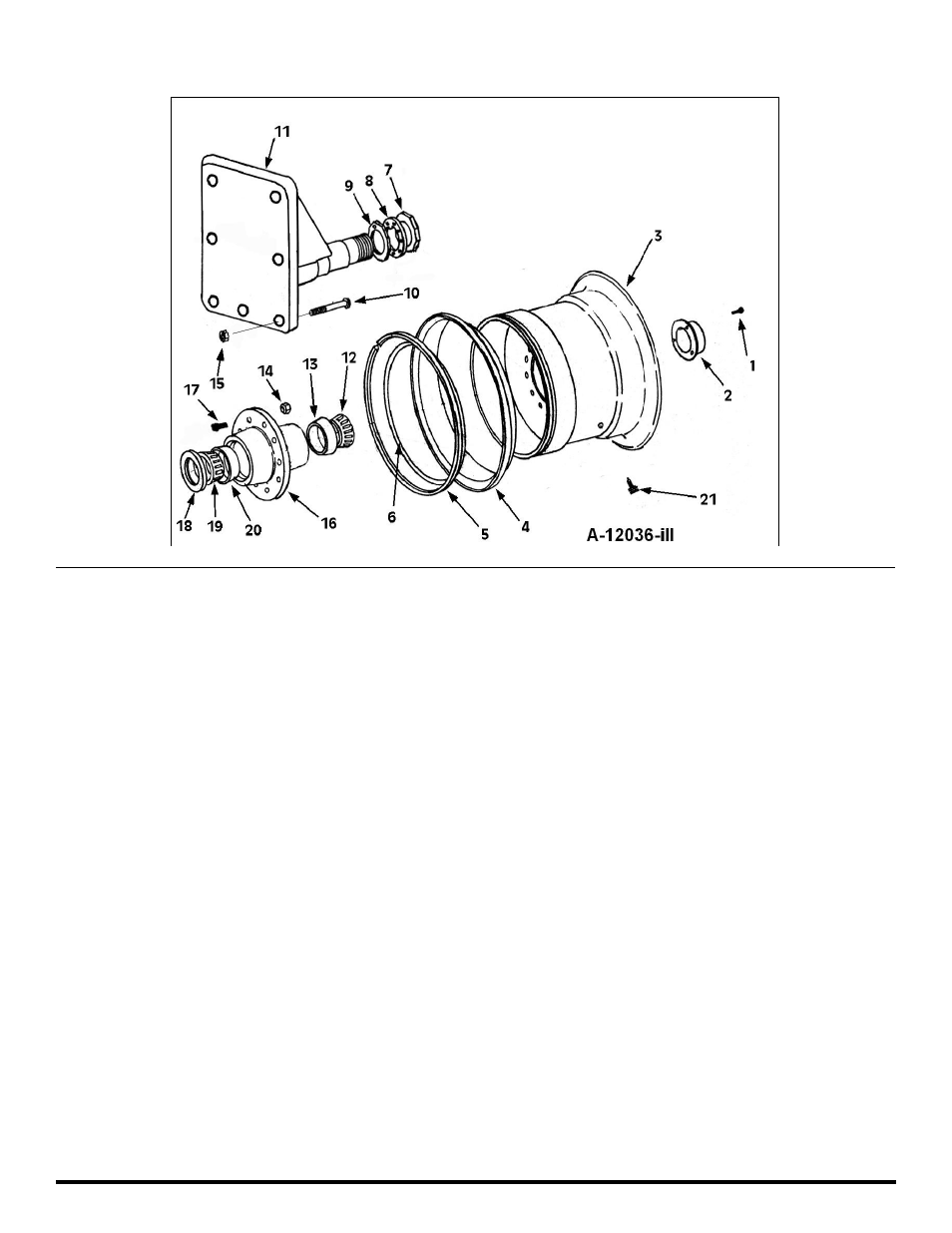

REAR WHEEL and HUB ASSEMBLY - 7 Hole Spindle
Key Number Part Number Description
01 AFB-00080 Bolt 5/16” NC x 1/2” Lg.
2 A14004 Hub Cap
3 A12036 Wheel Ass’y. 25” x 25”
A12036-1 Center Dish Weldment, Flat
A12036-2 Six Gussets for Center Dish
4 A12041 Side Ring
5 A12042 Lock Ring
6 A12047 O-Ring
7 A10048 Spindle Nut
8 A10049A Lock Collar
9 A10172 Nut with Lock Pin
10 AFB-00067 Bolt 1-1/4” NF X 7-1/2” Lg.
11 A123350 Spindle
12 A125001 Bearing Cone
13 A125002 Bearing Cup
14 A12051 Lug Nut
15 AFN-00009 Lock Nut: 1-1/4” NF
16 A12035 Hub
17 A12050 Lug
18 A12037 Grease Seal
19 A125003 Bearing Cone
20 A125004 Bearing Cup
21 A14016 Valve Stem
