I-130 TS2
Bowl & Frame Assembly
Blade Bolts Required:
Qty
A123331 (& Ser) PB9P-NC-088-0275 (12)
A123332L & R
PB9P-NC-088-0275 (4)
PB9P-NC-088-0225 (2)
A123338L & R
PB9P-NC-088-0275 (4)
PB9P-NC-088-0225 (3)

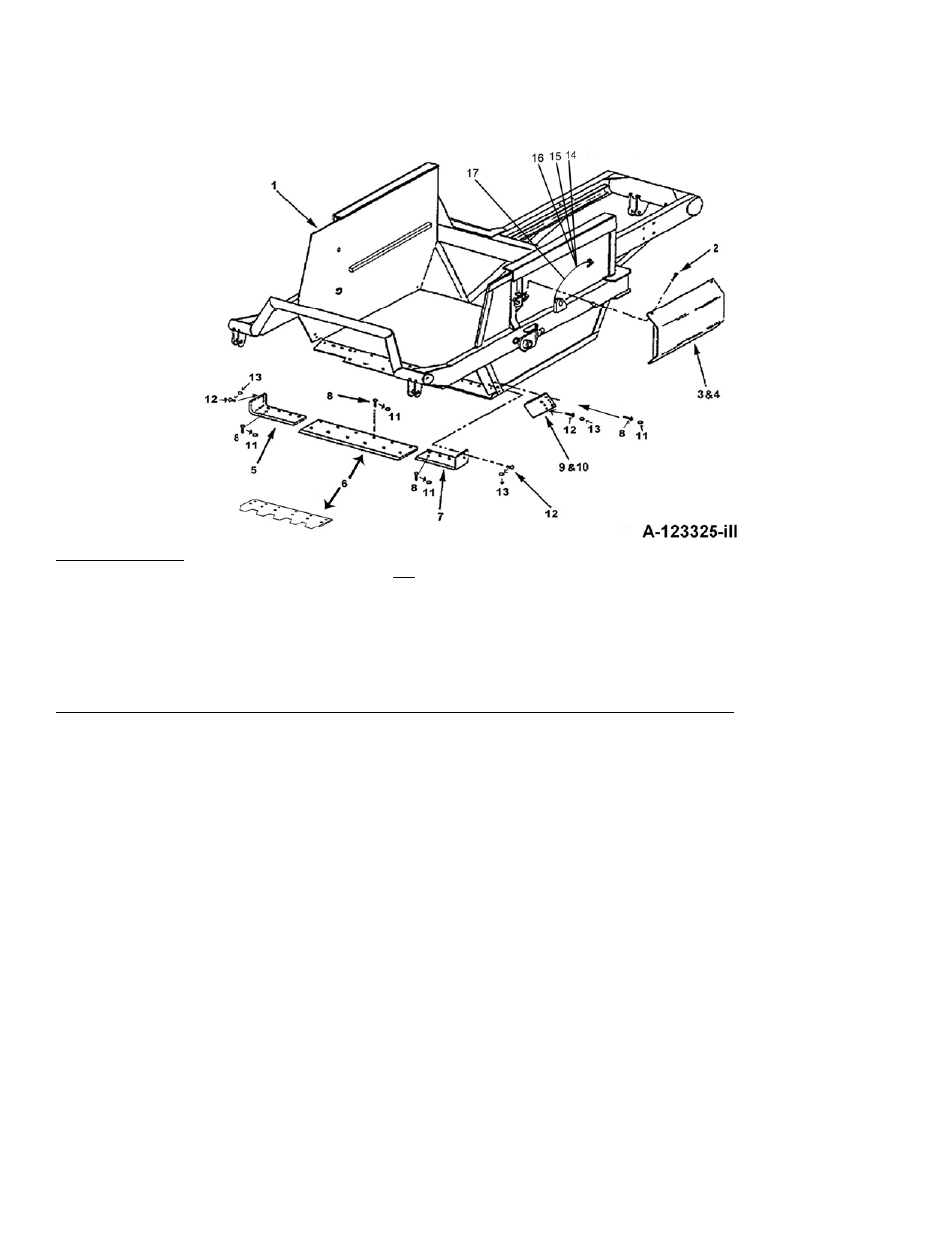

Key Number Part Number Description
1 A123325 Bowl and Frame I-130TS
2 AFB-00094 "Flange Bolt, 3/8” NC x 1”"
3 A123309-62L Left hand cylinder guard
4 A123309-62R Right hand cylinder guard
5 A123332R "Left cutting edge, 8”"
6 A123331 "Center cutting edge, 13” x 54”"
A123331-SER Optional Center Cutting Edge 13" X 54" Hardened
7 A123332L "Right cutting edge, 8”"
8 PB9P-NC-088-0275 "Plow bolt, 7/8” NC x 2-3/4”
9 A123338L (Optional) Left Bank Shaver Side Blade
10 A123338R (Optional) Right Bank Shaver Side Blade
11 AFN-00019 Nut: 7/8” NC
12 PB9P-NC-088-0225 "Plow bolt, 7/8” NC x 2-1/4”
13 AFN-00026 Nut: 7/8” NC Jam
14 A125019 Grease fitting 1/4-28 x .54” long (1 per side)
15 A125026 Bulkhead nut 1/8 n.p.s.m. (1 per side)
16 A123309-89 Single hole tab (1 per side)
17 A125022 18” Grease line (1 per side)
