I-130 TS2

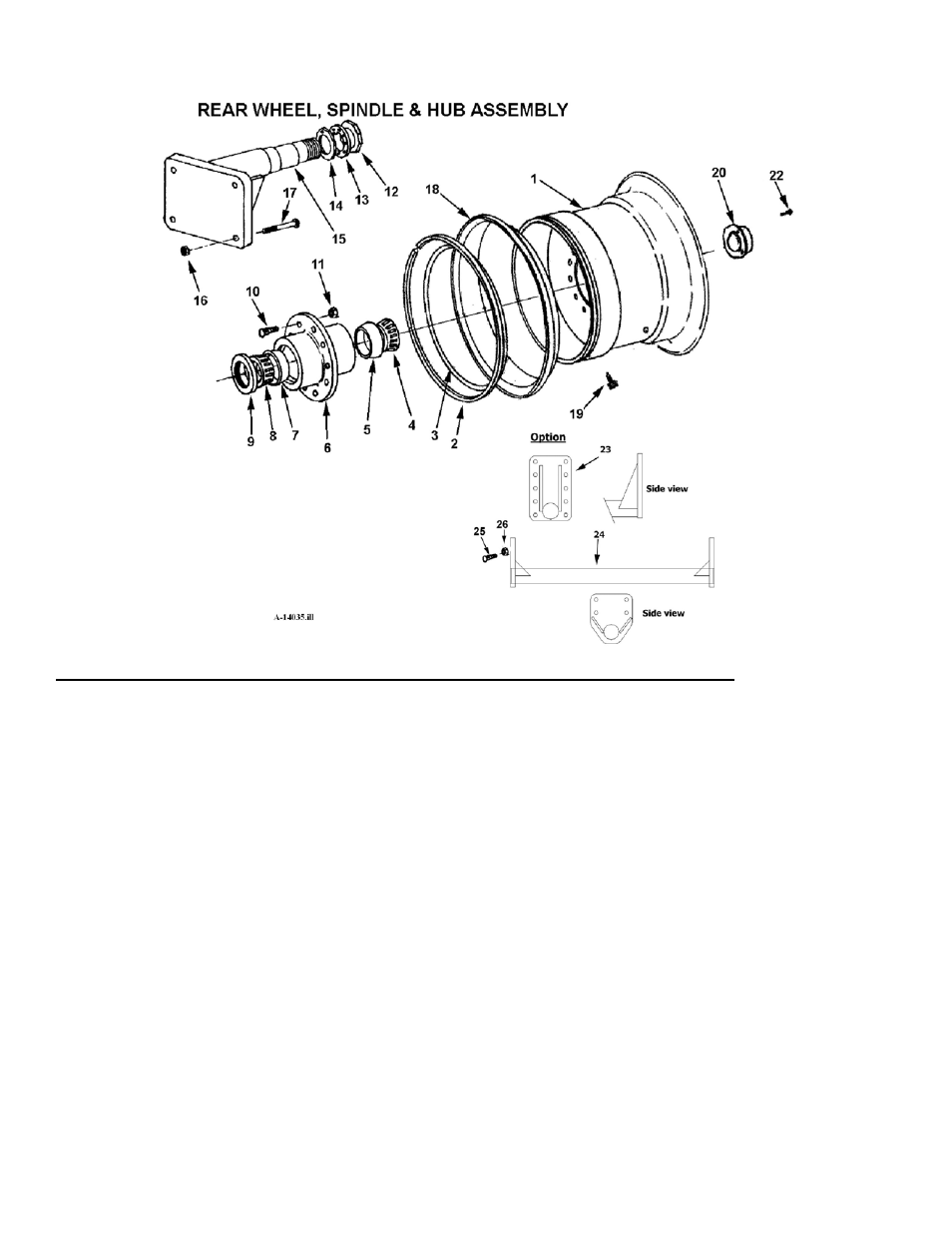

Rear Wheel Spindle & Hub Assembly
Key Number Part Number Description
1 A14035 Wheel - 17” x 25”
2 A14008 Lock Ring
3 A14038 O-Ring
4 A14015 Bearing cone (Timken 644)
5 A14014 Bearing cup (Timken 632)
6 A14010 Hub
7 A14013 Bearing cup (Timken 742)
8 A14012 Bearing cone (Timken 749)
9 A14011 Grease seal (CR 42624)
10 A10176 Stud
11 A10046 Lug nut
12 A10048 Spindle nut
13 A10049A Lock collar
14 A10172 Nut w/ lock pin
15 A14037 Spindle
16 AFN-00001 "Nut, 1” NF Toplock"
17 AFB-00017 "Bolt, 1” NF x 6-1/2” lg."
18 A14036 Slide Ring
19 A14016 Valve Stem
20 A14004 Hub Cap
22 AFB-00080 "Bolt, 5/16” NC x 1/2” lg."
23 A14037E Extended spindle plate (Option)
24 A14037P Cross pipe
25 AFB-00092 "Bolt: 1” X 4" Lg. NF Gr 8
26 AFN-00001 "Nut: 1” NF Top Lock, 8 Reg"
