I-130 TS2

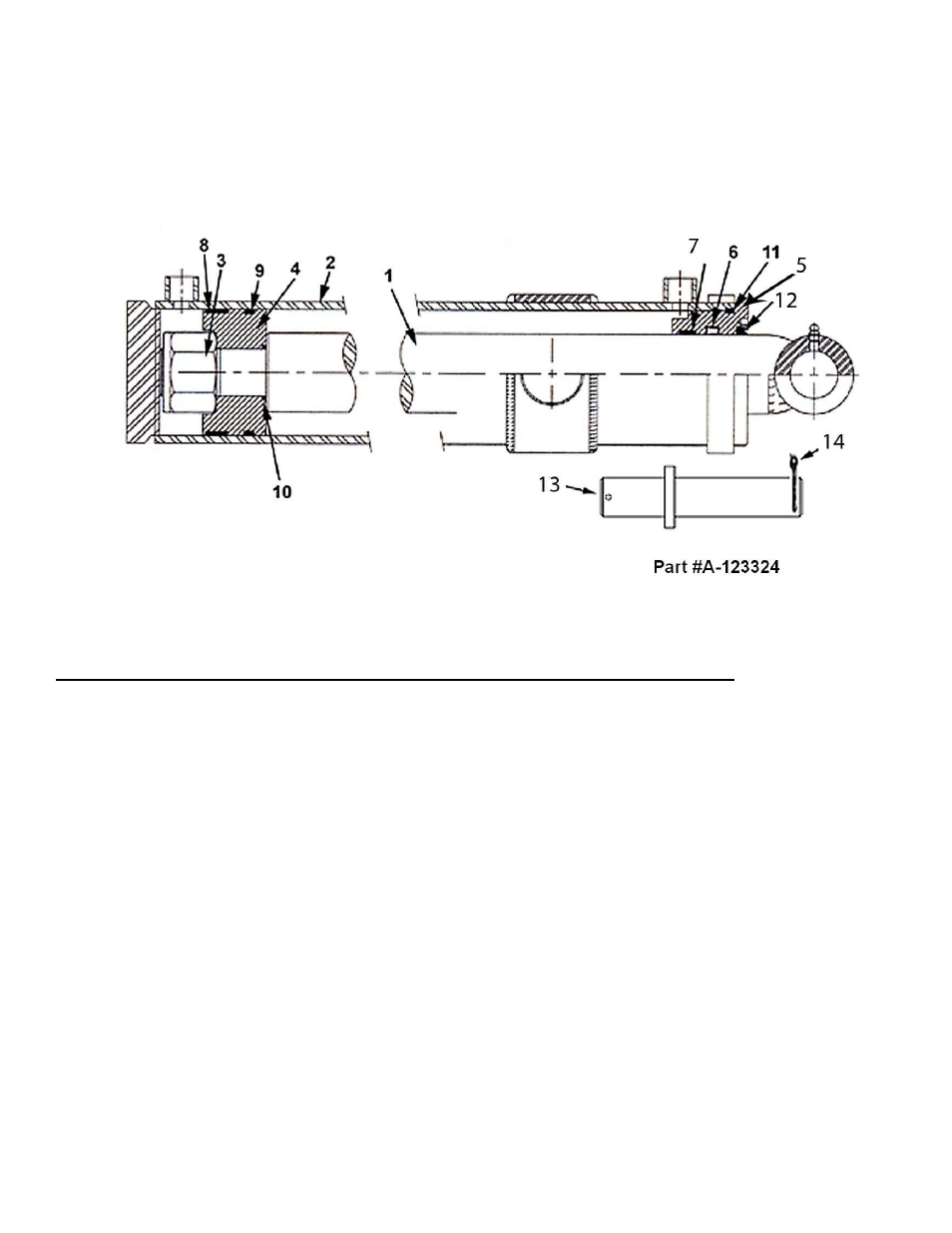

Lift Cylinder Trunion Mount 5 X 16" Part Number A123324
Key Number Part Number Description
1 A123324-1 2-1/2” Rod
2 A123324-2 Barrel Weldment
3 A125159-34 1-3/4 NF Lock Nut
4 A123324-4 Piston
5 A123324-5 Gland
6 A123324-6 Rod Seal
7 A123324-7 Wear Bond
8 A123324-8 Wear Ring
9 A123324-9 Piston Seal (2-pc.)
10 A123324-10 O-ring
11 A123324-11 O-ring
12 A123324-7 Rod Wiper
13 A123381 Pin 1-1/2” x 10-3/4
14 AFP-00001 1/4” x 3” Cotter Pin
AHS-00140 Seal Kit (Items 6-12)
Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717
Page #11
