I-130 TS2

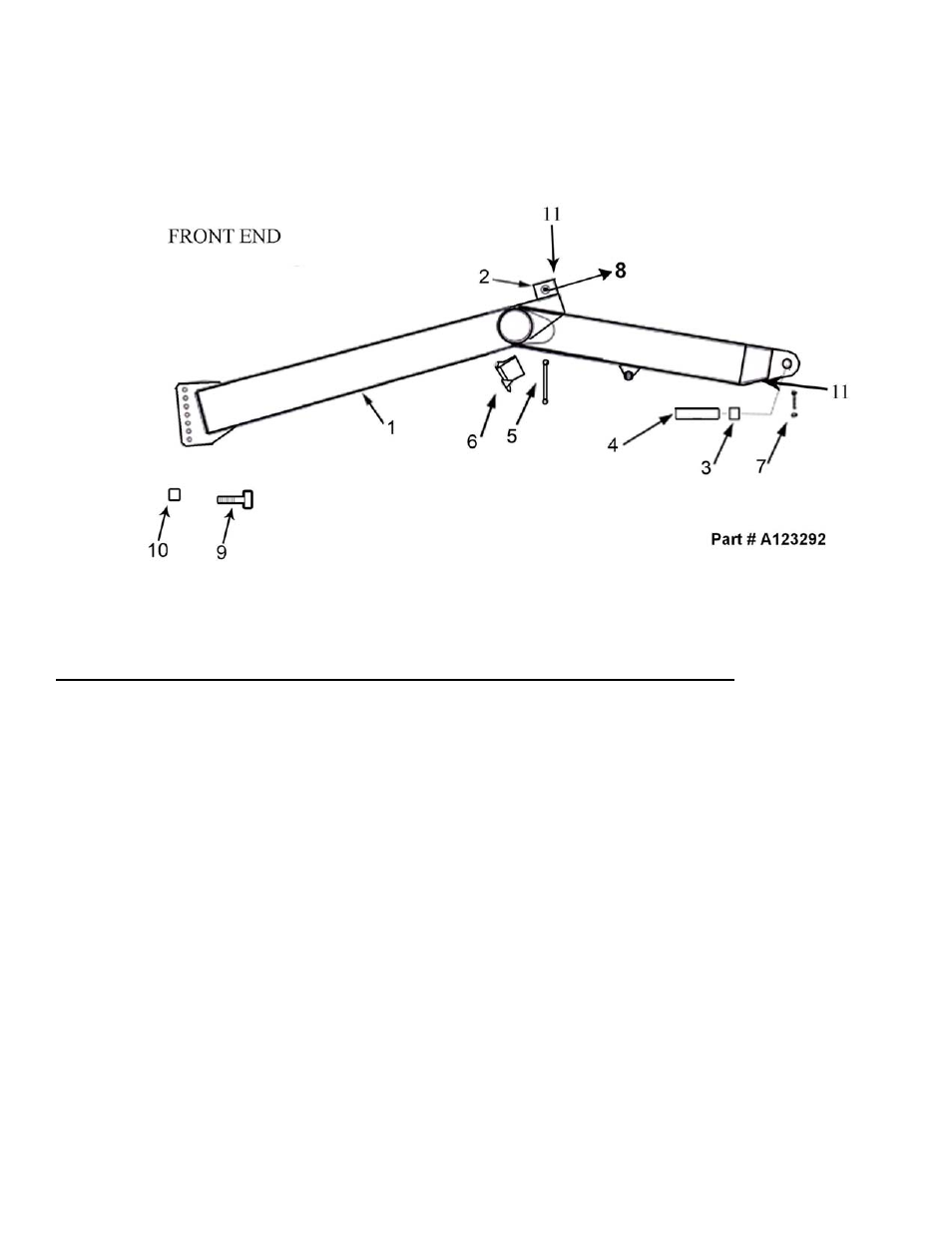

Front End
Key Number Part Number Description
1 A123292 Front End Assembly
2 A123456 Trunion Mount Block
3 A14039 "Bushing, 2-3/8” OD x 2” ID x 2” Long with Grease
passage"
4 A10152A "Frame Attachment Pin, 2” x 8-1/16”"
5 A123292-17 Travel Lock
6 A125006 Safety Snap Pin
7 AFB-00054 Bolt: 1/2” x 3-1/2” x/7500 Nut
8 A125179 Bushing
9 AFB-00021 Bolt 1” x 5-1/2” NC Gr.8
10 AFN-00037 Nut 1” NC Locknut
11 AHF-00028 Fitting Grease 90° 1/8 NPT
