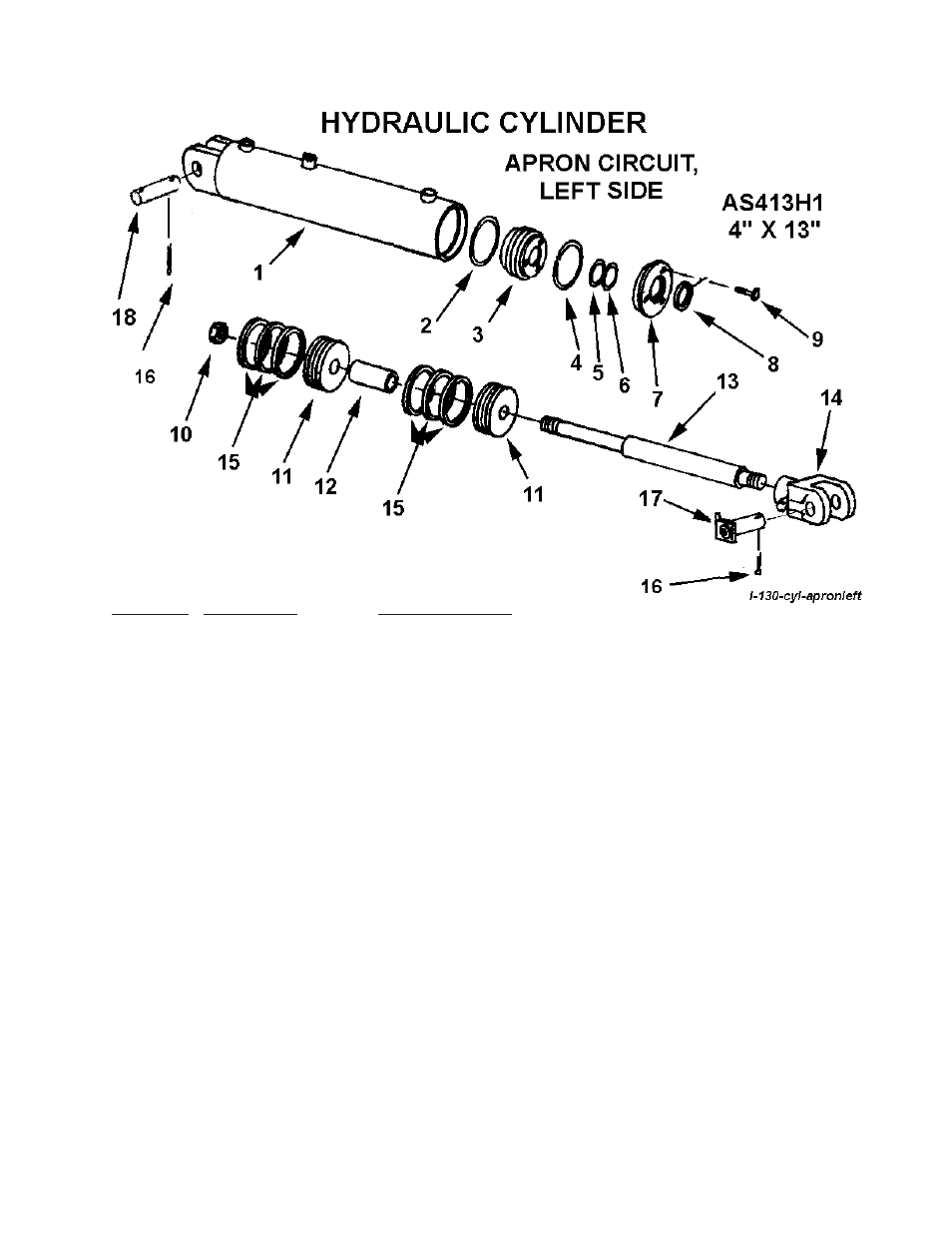

Ashland I-130 - Manual (Page 13)

For s/n 17863 & up
KEY NO. PART NO.
DESCRIPTION
1 A175H13 Barrel
2 A300H06 O-ring, 4" OD x 3/16"
3 A300H11 Head gland
4 A300H12 Retainer ring
5 A22H15 O-ring, 1-1/2" ID x 1/8"
6 A22H15A Backup washer, 1-1/2" ID
7 A300H13 Gland cap
8 A22H17 Wiper seal, 1-1/2" ID
9 A22H18 Capscrew, 1/4" NC x 1"
10 A300H03 Piston nut
11 A450H15 Piston, 4"
12 A130H12 Piston spacer
13 A175H14 Shaft, 1-1/2" diameter
14 A12H03 Clevis end
A12H03HD Clevis end, heavy duty. Requires (pt #) Pin with tab head. (pt #)
15 A300H04 Cast iron rings, 4" OD
16 AFP-00003 Cotter Pin, 3/16” x 1-1/2”
17 A10167 Pin, 1” x 3-1/16”
18 A1217 Pin, 1” x 3-1/2”
A130H23 Packing kit containing:
6 - A300H04 1 - A22H17 1 - A22H15
1 - A22H15A 1 - A300H06
