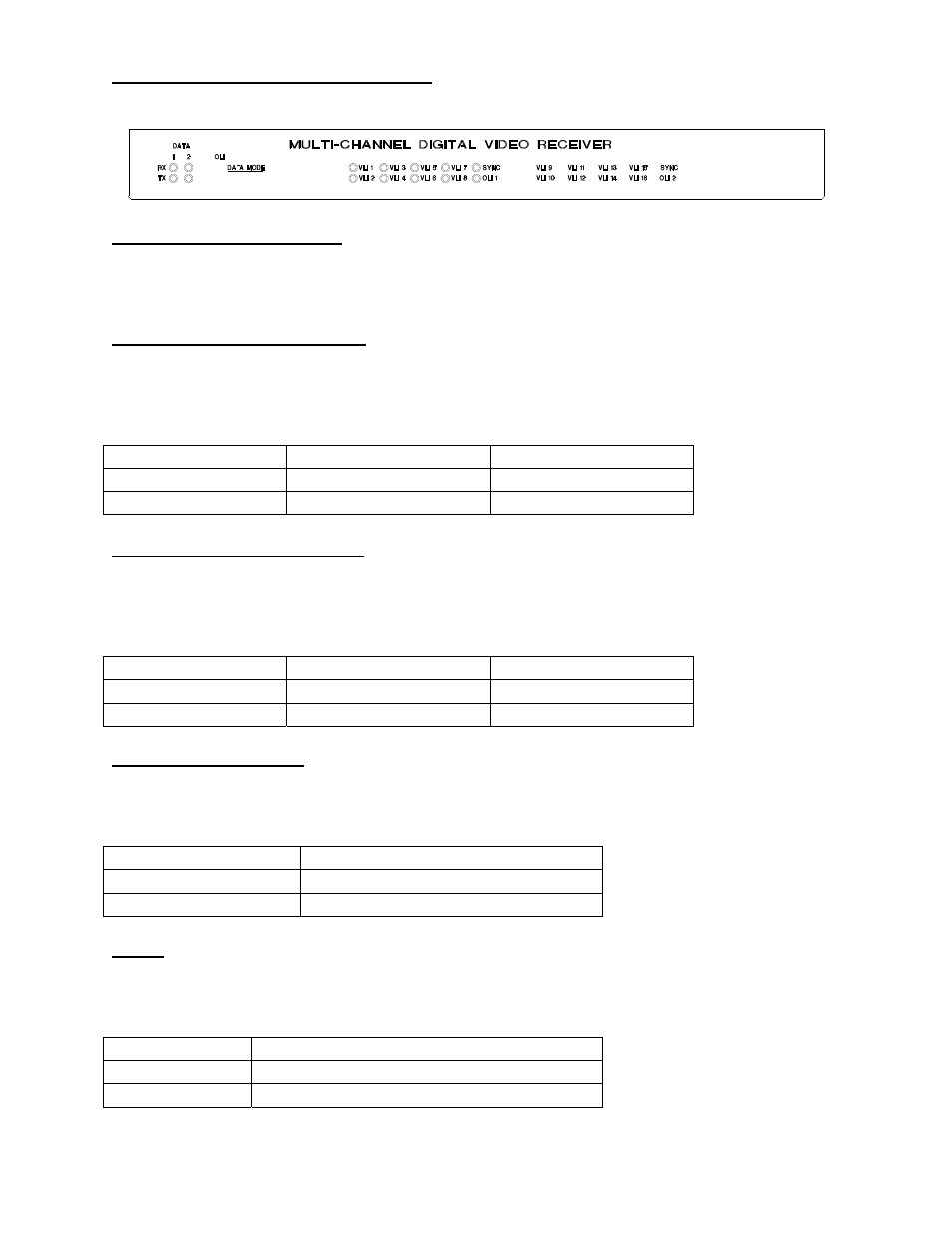

MRX-986C-SL STATUS INDICATORS
The MRX-986C-SL receiver provides the following front panel LED status indicators to aid in
installation and troubleshooting:
af i
american fibertek
DATA RX/TX INDICATORS
DATA RX and DATA TX indicators are provided to monitor each of the two available data
channels. DATA 1 RX and TX correspond with the multi-protocol output/input of DATA CH 1.
DATA 2 RX and TX correspond with the status of the Contact (open/closed).
DATA RX/CONTACT STATUS
A green LED indicator is provided to monitor the data coming in from the fiber, through the
MRX-986C-SL, and out onto the electrical interface. The intensity of this indicator will vary with
input data patterns, however in typical applications it will cycle on and off as data is received.
Data received status associated with this LED is summarized below.
DATA RX LED Data 1 Status Data 2 (Contact) Status
Green Data Flow Present Contact Closed
Off Data Flow Not Detected Contact Open
DATA TX/CONTACT STATUS
A green LED indicator is provided to monitor the data coming in from the electrical interface,
through the MRX-986C-SL, and out onto the fiber. The intensity of this indicator will vary with
input data patterns, however in typical applications it will cycle on and off as data is transmitted.
Data transmitted status associated with this LED is summarized below.
DATA TX LED Data 1 Status Data 2 (Contact) Status
Green Data Flow Present Contact Closed
Off Data Flow Not Detected Contact Open
VLI 1 THROUGH VLI 8
A bi-color LED indicator is provided for the each of the eight video outputs of the MRX-986C-SL.
Video status associated with each of these LED’s is summarized below.
Video Presence LED Video Status
Green Proper Output Video Present
Red Output Video Not Detected
SYNC
A bi-color LED indicator is provided to monitor the proper serialization of the electrical video
data stream through the MRX-986C-SL. Sync status associated with this LED is summarized
below.
Sync LED Sync Status
Green Proper Data Stream Serialization Present
Red Data Stream Serialization Not Detected
