7

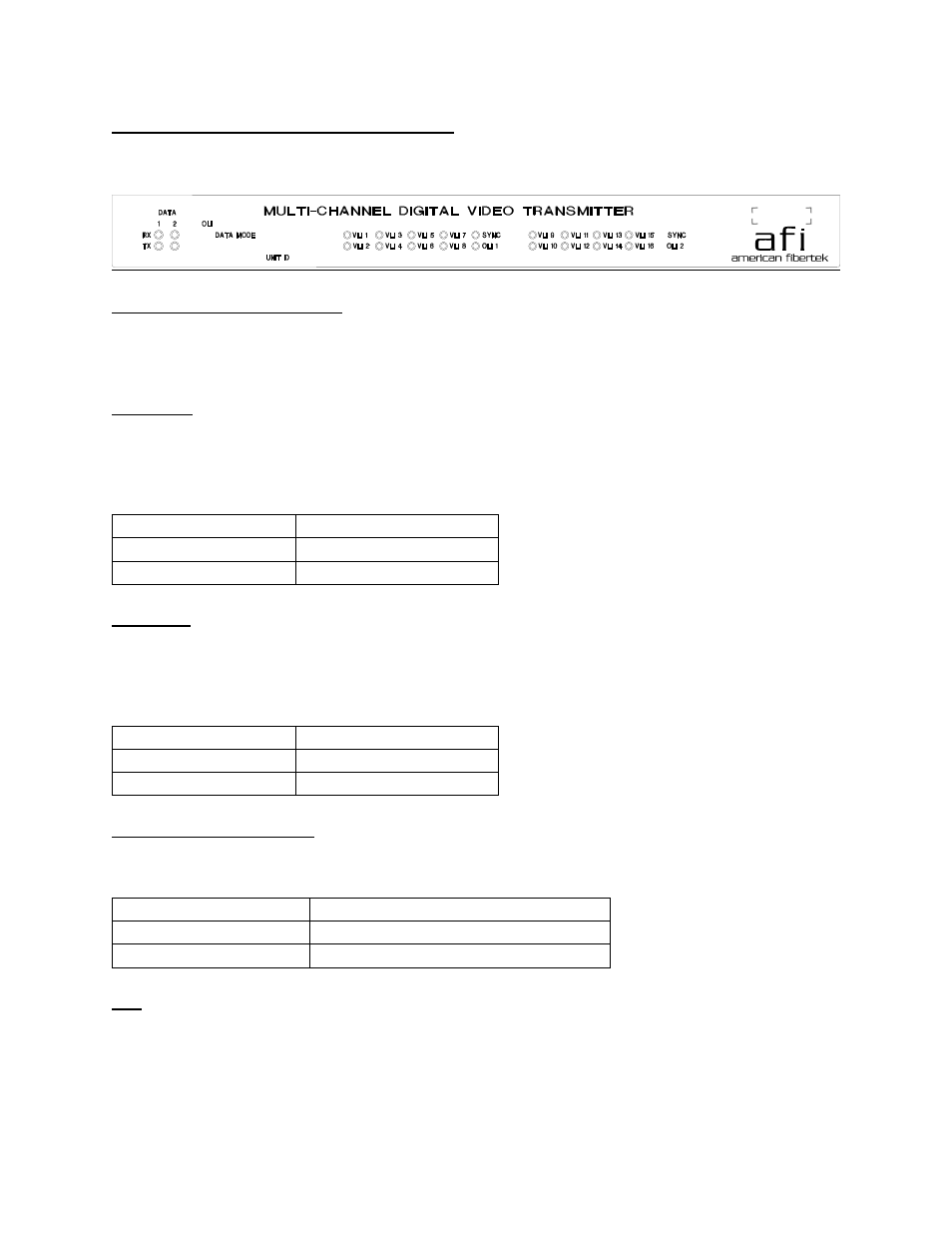

MTX-91685C-SL STATUS INDICATORS
The MTX-91685C-SL transmitter provides the following front panel LED status indicators to aid
in installation and troubleshooting:
DATA RX/TX INDICATORS
DATA RX and DATA TX indicators are provided to monitor each of the two available data
channels. DATA 1 RX and TX correspond with the multi-protocol output/input of DATA CH 1.
DATA 2 RX and TX correspond with the multi-protocol output/input of DATA CH 2.
DATA RX
A green LED indicator is provided to monitor the data coming in from the fiber, through the
MTX-91685C-SLC, and out onto the electrical interface. The intensity of this indicator will vary
with input data patterns, however in typical applications it will cycle on and off as data is
received. Data received status associated with this LED is summarized below.
DATA RX LED Data Status
Green Data Flow Present
Off Data Flow Not Detected
DATA TX
A green LED indicator is provided to monitor the data coming in from the electrical interface,
through the MTX-91685C-SL, and out onto the fiber. The intensity of this indicator will vary with
input data patterns, however in typical applications it will cycle on and off as data is transmitted.
Data transmitted status associated with this LED is summarized below.
DATA TX LED Data Status
Green Data Flow Present
Off Data Flow Not Detected
VLI 1 THROUGH VLI 16
A bi-color LED indicator is provided for the each of the sixteen video inputs to the MTX-91685C-
SL. Video status associated with each of these LED’s is summarized below.
Video Presence LED Video Status
Green Proper Input Video Present
Red Input Video Not Detected
OLI
A bi-color LED indicator monitors the optical input power of the data signal that is being
received at the MRX-91685C-SL from the MTX-91685C-SL. AC power and optical input status
associated with these LED’s are summarized in the following table.
