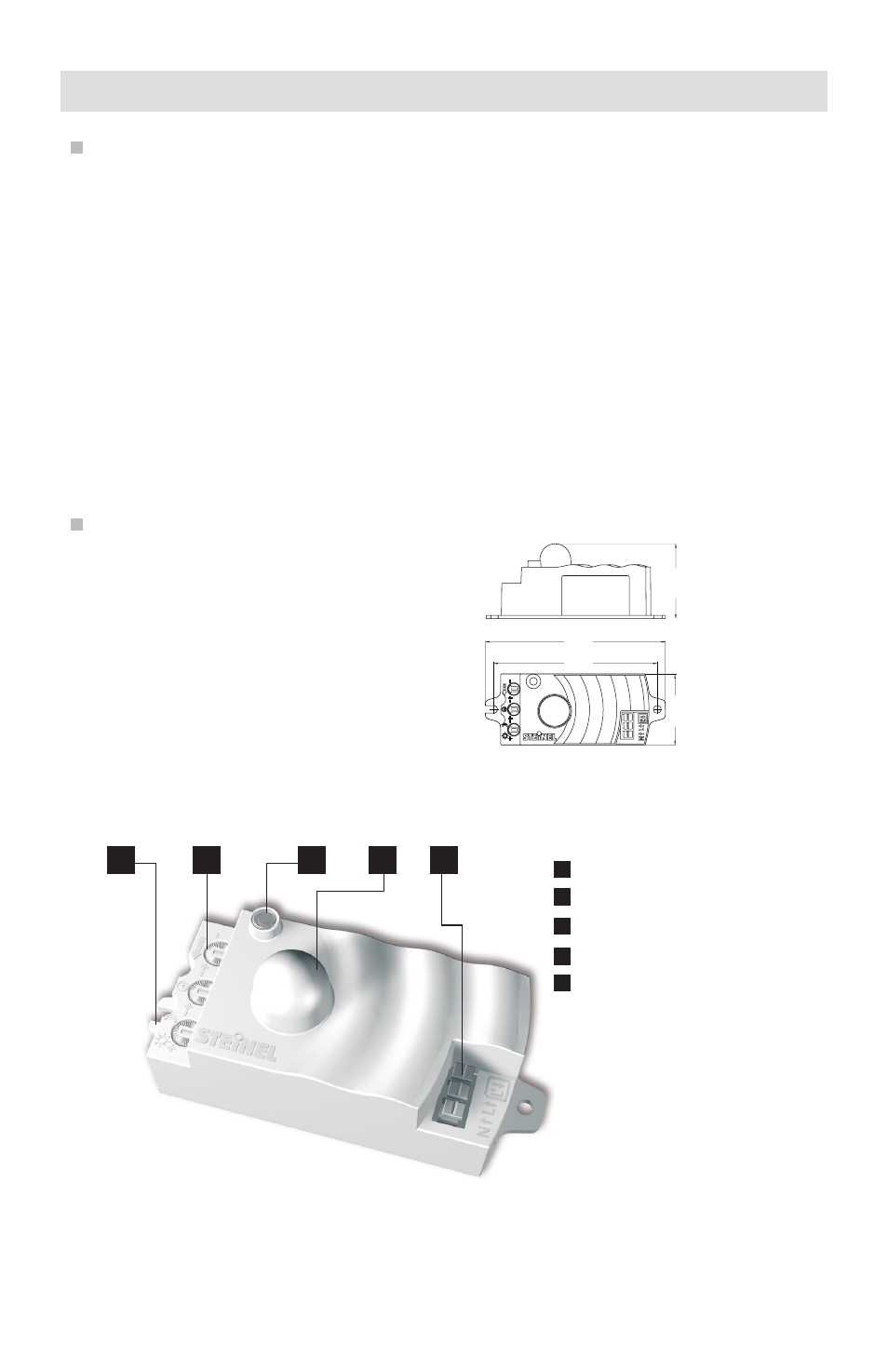

Mounting
• The sensor module is intended to be
installed within a luminaire. Its dome
antenna must face the desired area
of detection (the fixture’s area of
illumination).
• The dome antenna must have an
unobstructed view of the detection
area. The high frequency signal is
not obstructed by materials such as
polycarbonate, plastic or glass. Metal
will obstruct the high frequency signal.
Mounting
Mounting guidelines
4
• Mounting screw holes are 3.8 inches
(97 mm) apart.
• Suitable for wall and ceiling
applications.
• For indoor use only
• For optimal coverage, the dome
antenna must project beyond the
lamps and should not be blocked by
any metal.
• Pay attention to luminaire materials
(interference, reflections, attenuation).
107 mm
4.2”
97 mm
3.8”
44.5 mm
1.75”
42 mm 1.65”
www.steinel.net (800) 852-4343
Mounting tabs (2)
Sensitivity, time, light level adjustments
Photocell
Sensor dome antenna
Wire terminations
1 2 3 4 5
2
1
3
4
5
