Installation
510963
22

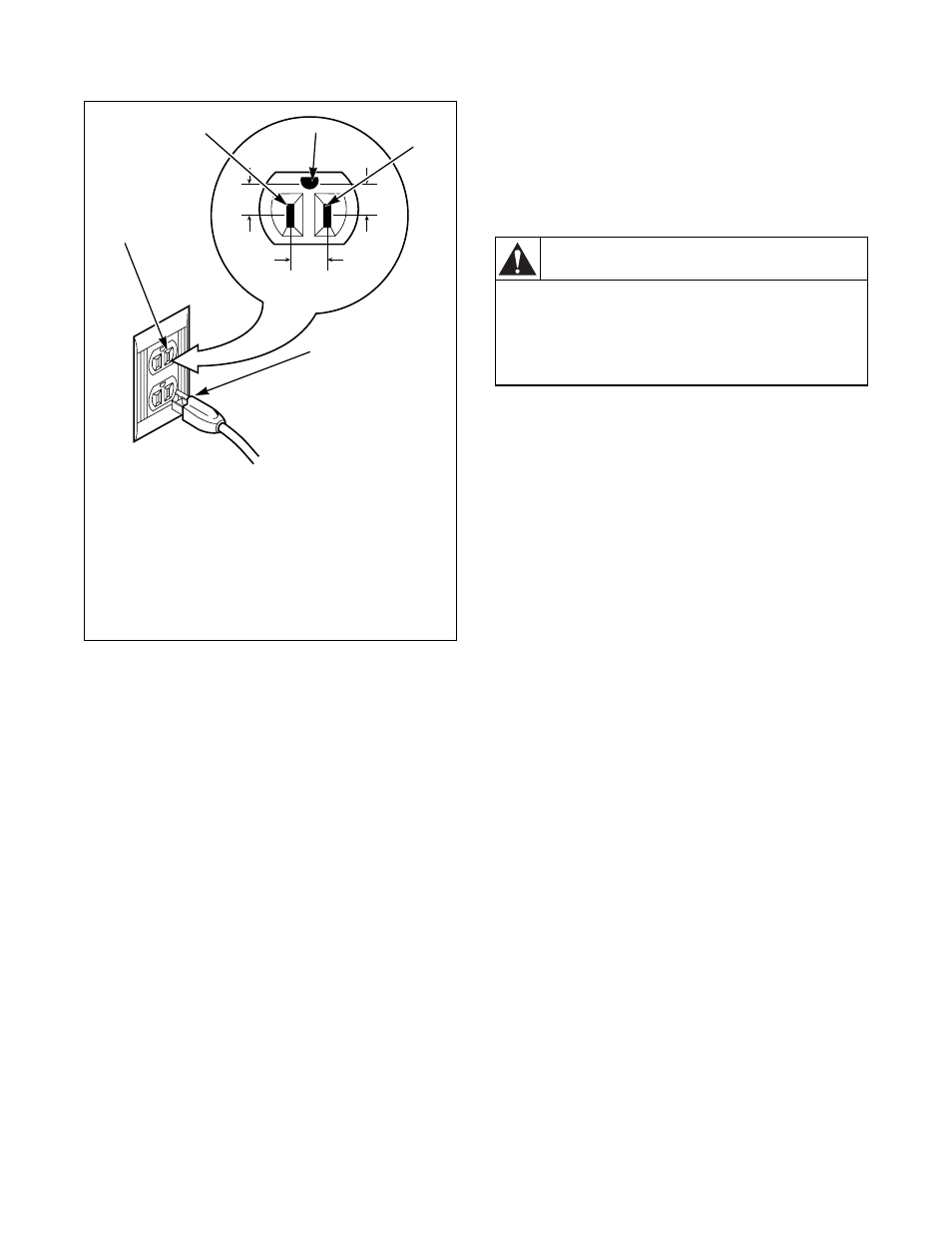

Figure 25
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Do not operate other appliances on the same circuit
when this appliance is operating.
D090I
1
“L1”
2
Ground
3
Neutral
4
Round Grounding Prong
5
Neutral Side
1
2
3
4
5
STANDARD 120 VOLT, 15 AMP, 60 HERTZ, 3 WIRE
EFFECTIVELY GROUNDED CIRCUIT
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0
V.A.C.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the dryer to the electrical
power source.
W037
WARNING
