Installation
510963 12
Figure 9
Step 5: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.

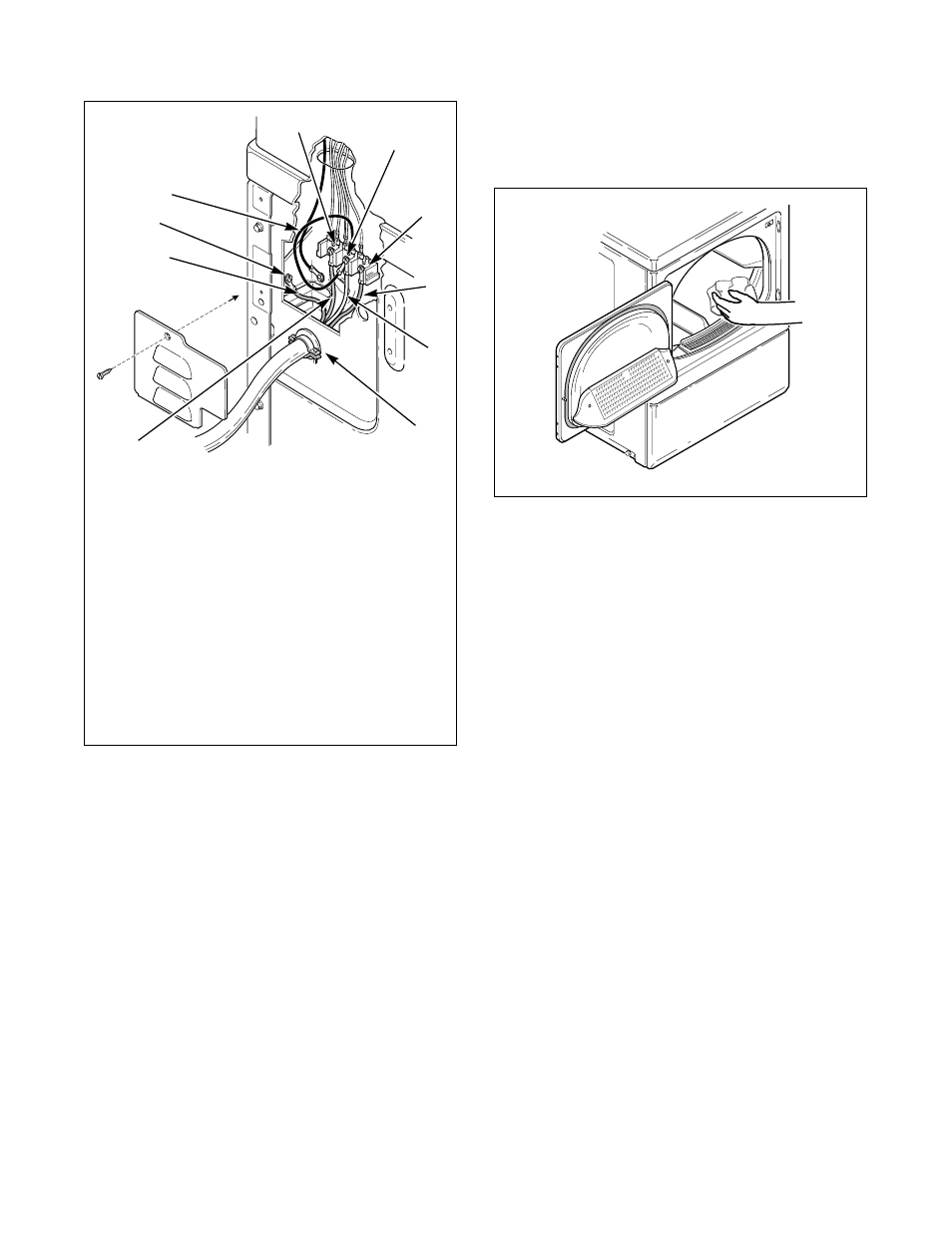

Figure 10
D680I
1 “L1” Terminal
2 Neutral Terminal
3 “L2” Terminal
4 Black Wire
5 White Wire (Neutral)
6 Strain Relief (Not supplied with dryer)
7 Red Wire
8 Ground Wire
9 Ground Screw
NOTE: Dryer is shown with access cover removed for
illustration purposes only. NEVER operate dryer with
access cover removed.
D680I
1
3
2
FOUR-WIRE CONNECTION
4
5
6
7
8
8
9
D618I
D618I
