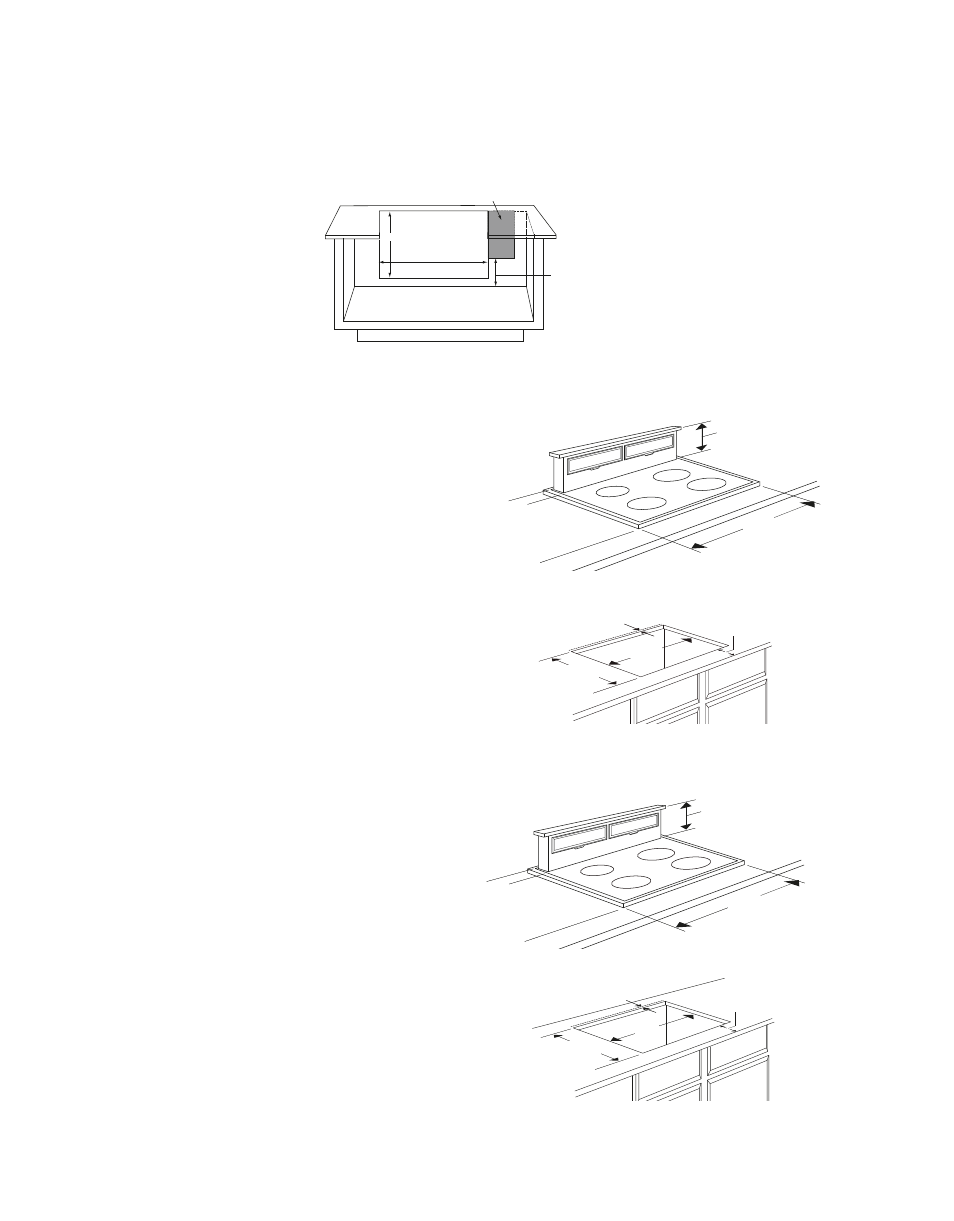

Advance planning for telescopic downdraft vents
Electrical and gas locations
Plan the placement of the electrical
outlet and gas (if used) carefully. gas
or electrical outlets cannot be located
on the back wall of the cabinet
because they may interfere with the
downdraft plenum.
• Install a standard electrical outlet within
reach of the vent’s 2'-long power cord.
Locate the outlet inside the cabinet on the
right side wall.
• If the vent is installed in combination with
a Monogram ® gas cooktop, it may operate
from the same 120V standard duplex outlet.
• If the vent is installed in combination with a
Monogram electric cooktop, the vent must
operate from a separate 120V outlet.
DO NOT Locate
Gas or Electrical
Connections within
this Area
Locate the Gas or Electrical
Connection Only Within the
Shaded Area
34” for 36” Models
28-1/2” for 30” Models
29-1/2”
12” Electrical
Outlet 12”
Above
Cabinet
Floor
30" cooktop/downdraft
IMPORTANT: The countertop cutout requires 23-1/2"
minimum flat countertop surface and 25" minimum total
countertop depth.
NOTE: Before you begin, measure and mark depth to ensure
that adequate flat countertop surface is available.
*For cooktop and downdraft combination depth:
• Follow cooktop installation instructions for cooktop and
downdraft combination installation.
• Otherwise, add 2-3/4" to the cooktop cutout depth.
NOTE: Add 2-7/8" to the cooktop cutout depth for JP328
and JP626.
36" cooktop/downdraft
IMPORTANT: The countertop cutout requires 23-1/2"
minimum flat countertop surface and 25" minimum total
countertop depth.
NOTE: Before you begin, measure and mark depth to ensure
that adequate flat countertop surface is available.
*For cooktop and downdraft combination depth:
• Follow cooktop installation instructions for cooktop and
downdraft combination installation.
• Otherwise, add 2-3/4” to the cooktop cutout depth.
NOTE: Add 2-7/8” to the cooktop cutout depth for JP328
and JP626.
8-1/2"
30"
3/8" Minimum flat countertop
behind cutout required
2-1/2" Minimum**
28-1/2"
**Required to maintain UL or CSA approvals
* Cooktop and
downdraft
combination
depth
8-1/2"
36"
3/8" Minimum flat countertop
behind cutout required
2-1/2" Minimum**
34"
**Required to maintain UL or CSA approvals
* Cooktop and
downdraft
combination
depth
