Installation

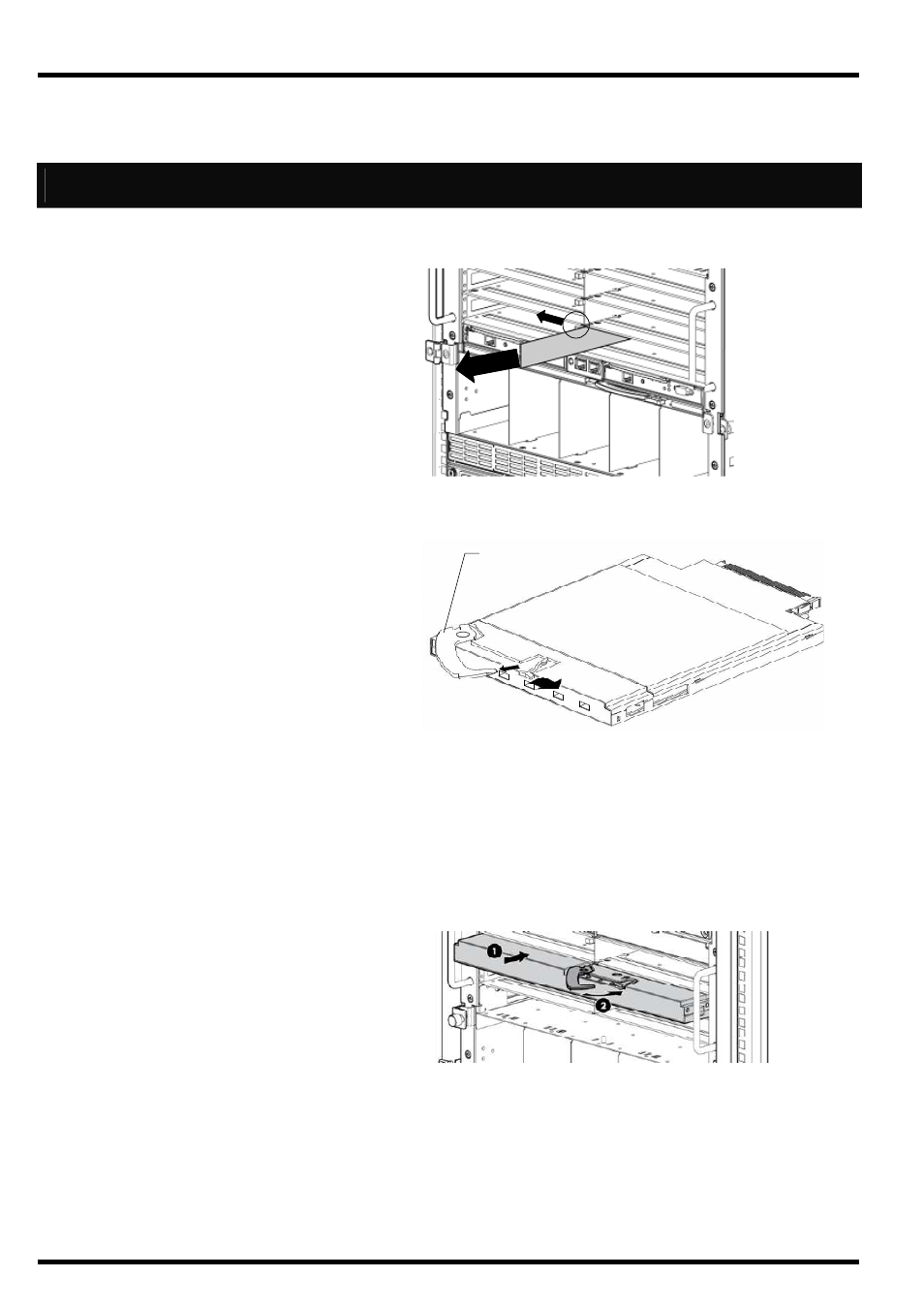

Installing Switch Module

Refer to the Blade Enclosure User

’s Guide for details.

1

Remove the slot cover and divider.

2

Open the ejector of 1Gb Intelligent L3
Switch.

Ejector

3

With the ejector being opened, insert the
Switch Module into the Blade Enclosure.

4

Close the ejector to fix the Switch Module
to the Blade Enclosure.
The Switch Module is locked and fixed.
