Connection with CPU Blade

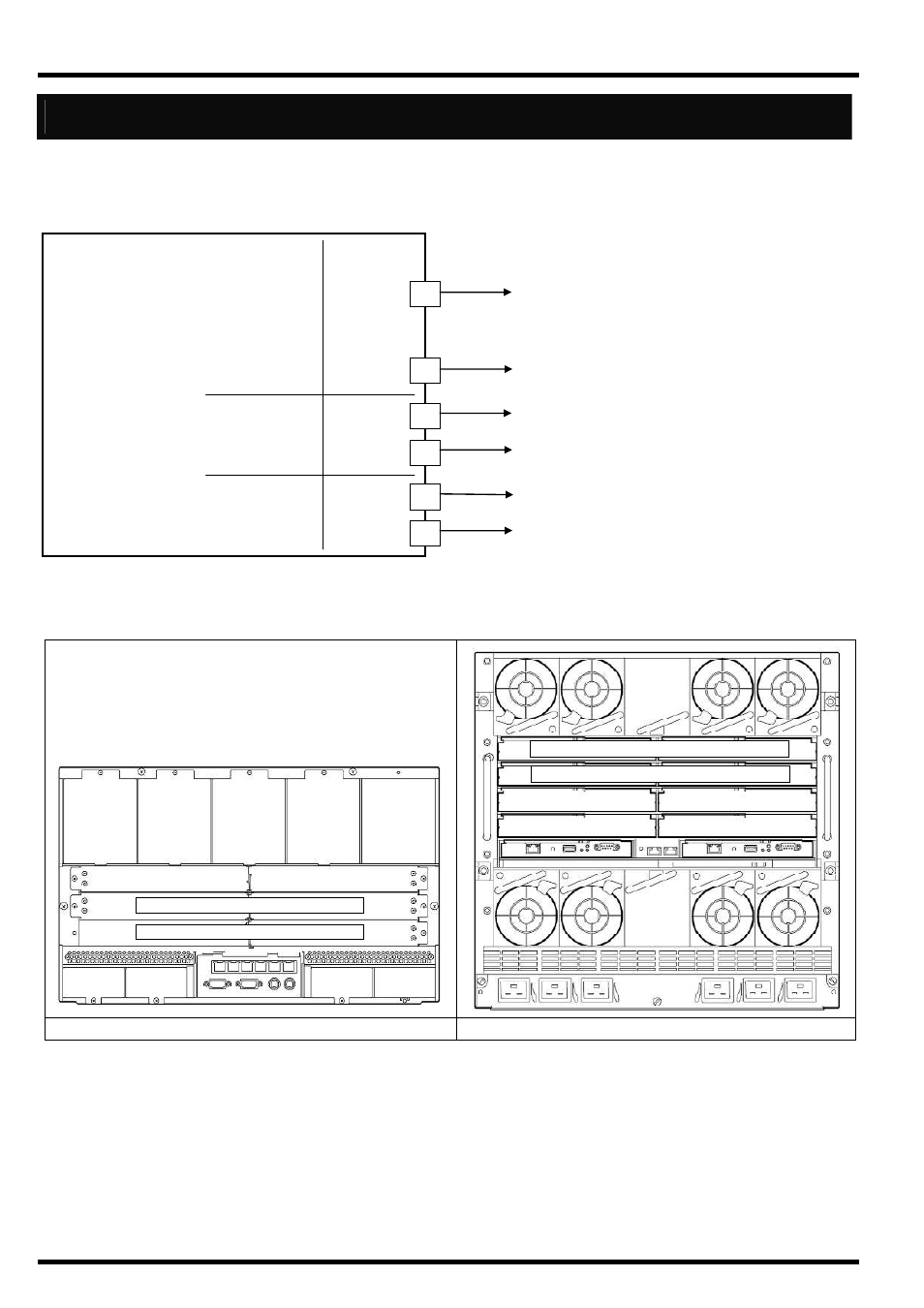

The following figure shows the network connection diagram between CPU Blades and Switch Modules.
CPU Blade
(Express5800/120Bb-6)
on-board LAN
Mezzanine
slot1
(Type-1)
Mezzanine
slot 2
(Type-1,2)
Port1
Port2
Port1
Port2
Port1
To Switch Module slot 5, slot 6
Not connect
Port2
Not connect in Blade Enclosure(6U)
To Switch Module slot 7, slot 8
in Blade Enclosure(10U)
Not connect
Not connect
Not connect
Switch Module slot number in Blade Enclosure
Switch Module slot 6 Switch Module slot 5
Switch Module slot 4 Switch Module slot 3
Switch Module slot 2 Switch Module slot 1 Not Available
Not Available
Switch Module slot 1
Switch Module slot 3
Switch Module slot 5
Switch Module slot 7
Switch Module slot 2
Switch Module slot 4
Switch Module slot 6
Switch Module slot 8
Not Available
Not Available
Blade Enclosure (6U) Blade Enclosure (10U)
Rear View
