Tilt models
32

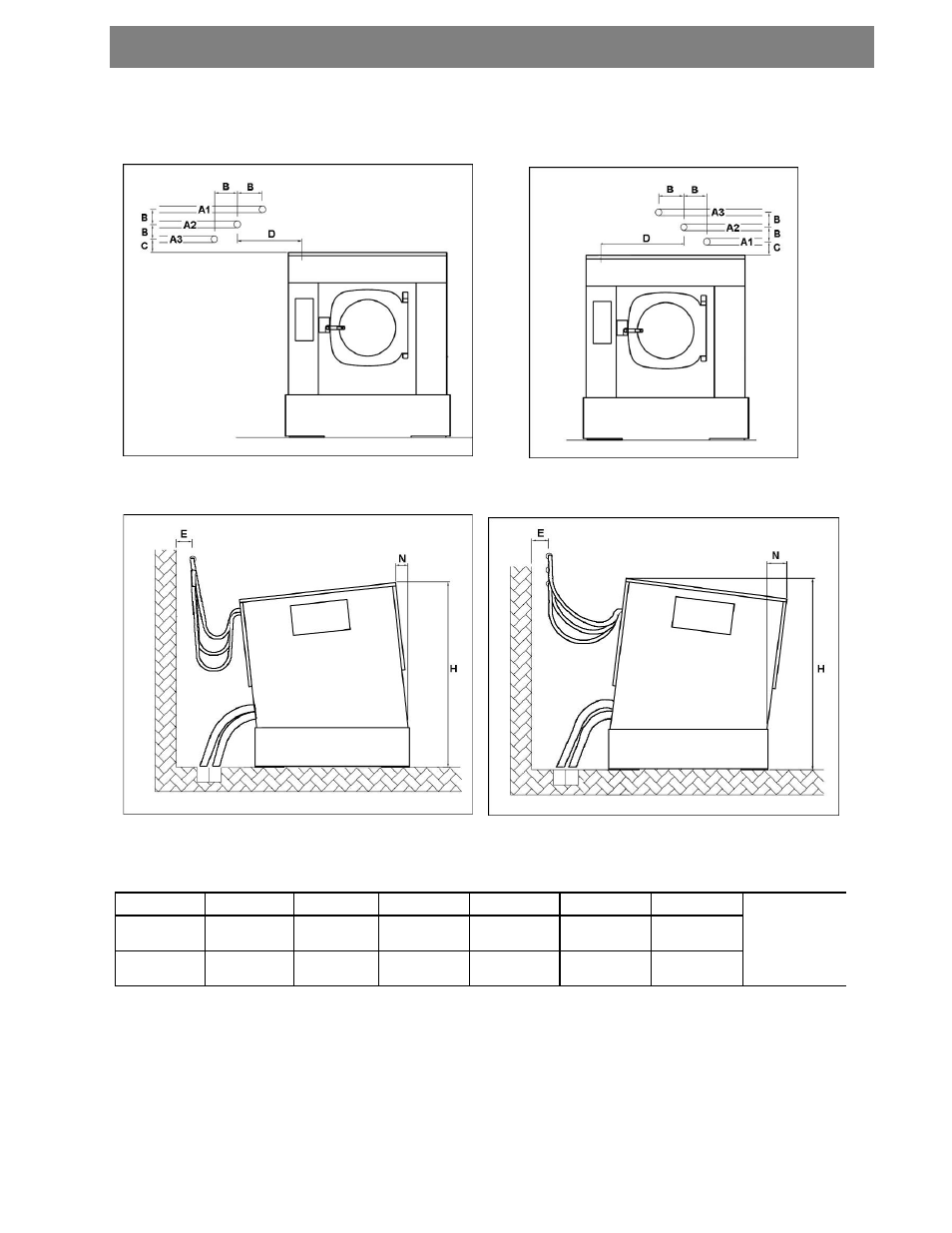

4.5. Water inlet installation proposal
fig. 28
fig. 29
Values and symbols corresponding to the figures
B C D E H (max.) N (max.)
mm
(inch)
200
(8)
100
(4)
650
(26)
300
(12)
2256
(88.8)
296
(11.7)
mm
(inch)
200
(8)
100
(4)
650
(26)
300
(12)
2438
(96)
274
(10.8)
Symbols corresponding to the figures
A1: A1 connection (cold water)
A2: A2 connection (hot or cold water 2)
A3: Independent third inlet connection (option)
