13

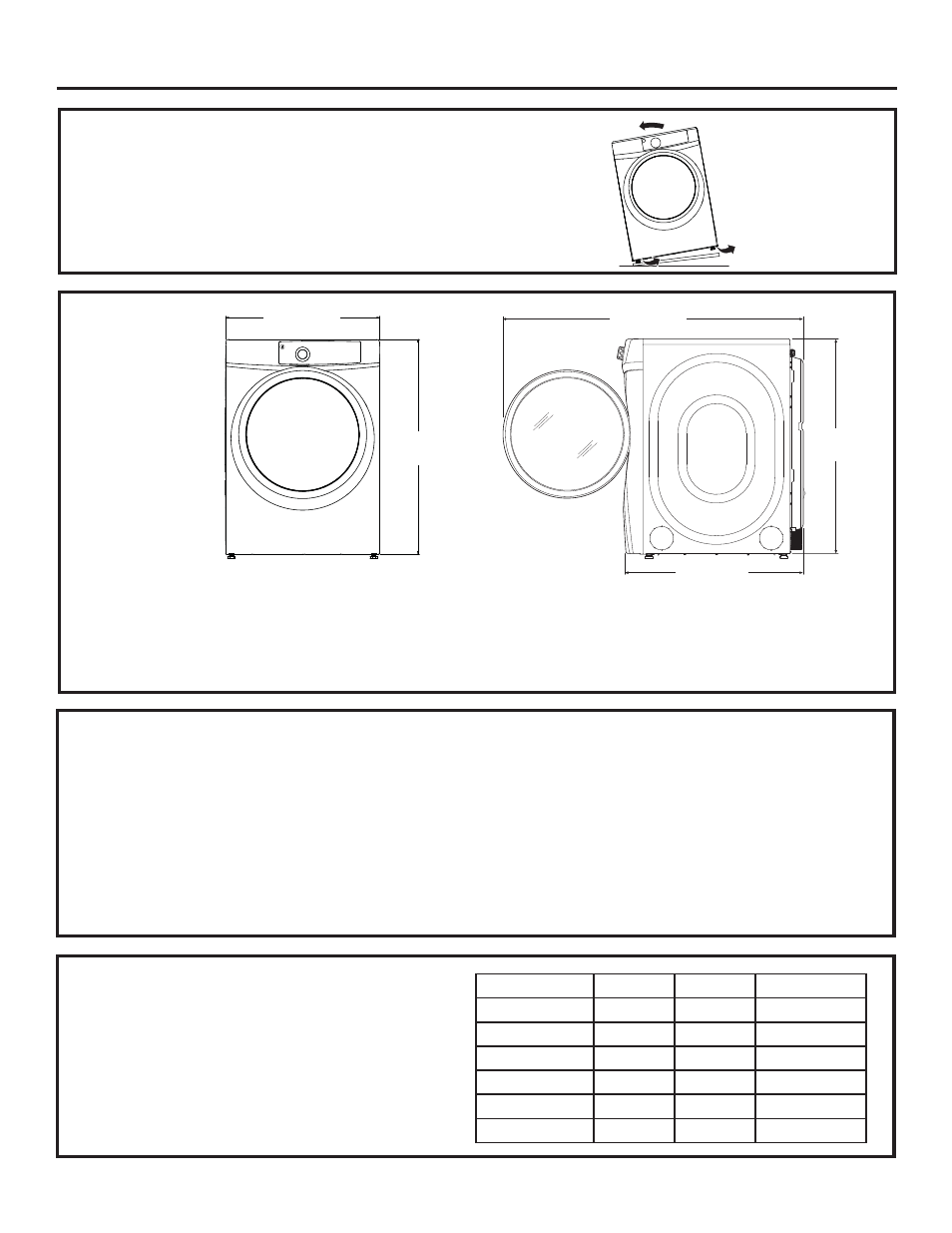

Installation Instructions
Tilt the dryer sideways and remove the foam
shipping pads by pulling at the sides and breaking
them away from the dryer legs. Be sure to remove all
of the foam pieces around the legs.
Remove the bag containing the literature.
39”*
(99 cm)
28”
(71.12 cm)
32 7/8”
(83.5 cm)
39”*
(99 cm)
Side View
Front View
54 3/8”
(138.1 cm)
UNPACKING YOUR DRYER
DRYER
DIMENSIONS
STEAM WATER HOSES:
GE strongly recommends the use of factory specified parts.
These hoses are manufactured and tested to meet GE
specifications.
GE strongly recommends the use of new water supply hoses.
Hoses degrade over time and need to be replaced every 5
years to reduce the risk of hose failures and water damage.
Parts and Accessories
Order on-line at GEApplianceParts.com, 24 hours a day or by
phone at 800.626.2002 during normal business hours.
Part Number Accessory
WE25M53 Complete Kit (hoses, Y-adapter
washers) (included)
OR
WE1M847 Long Hose and
WE1M848 Short Hose
PM14X10056 Dryer door opening vent brush
(not included)
WX14X10007 LintEater™ Dryer rotary tube brush
(not included)
POWER CORDS:
GE strongly recommends the use of factory specified parts.
Select the power cord to fit your installation requirements.
Order on-line at GEApplianceParts.com, 24 hours a day or
by phone at 800.626.2002 during normal business hours.
Part Number Type Length Amperage
WX9X2 3-Prong 4 Feet 30
WX9X3 3-Prong 5 Feet 30
WX9X4 3-Prong 6 Feet 30
WX9X18 4-Prong 4 Feet 30
WX9X19 4-Prong 5 Feet 30
WX9X20 4-Prong 6 Feet 30
*NOTE:
With Legs: 40 1/2” (102.5 cm) - (3/4” (1.9 cm) adjustability)
With Built-In Riser™: 46” (116.9 cm) - (3/4” (1.9 cm) adjustability)
With Optional Pedestal (GFXP1308): 52” (132.1 cm) - (3/4” (1.9 cm) adjustability)
Stacked: 78 1/4” (198.8 cm)
