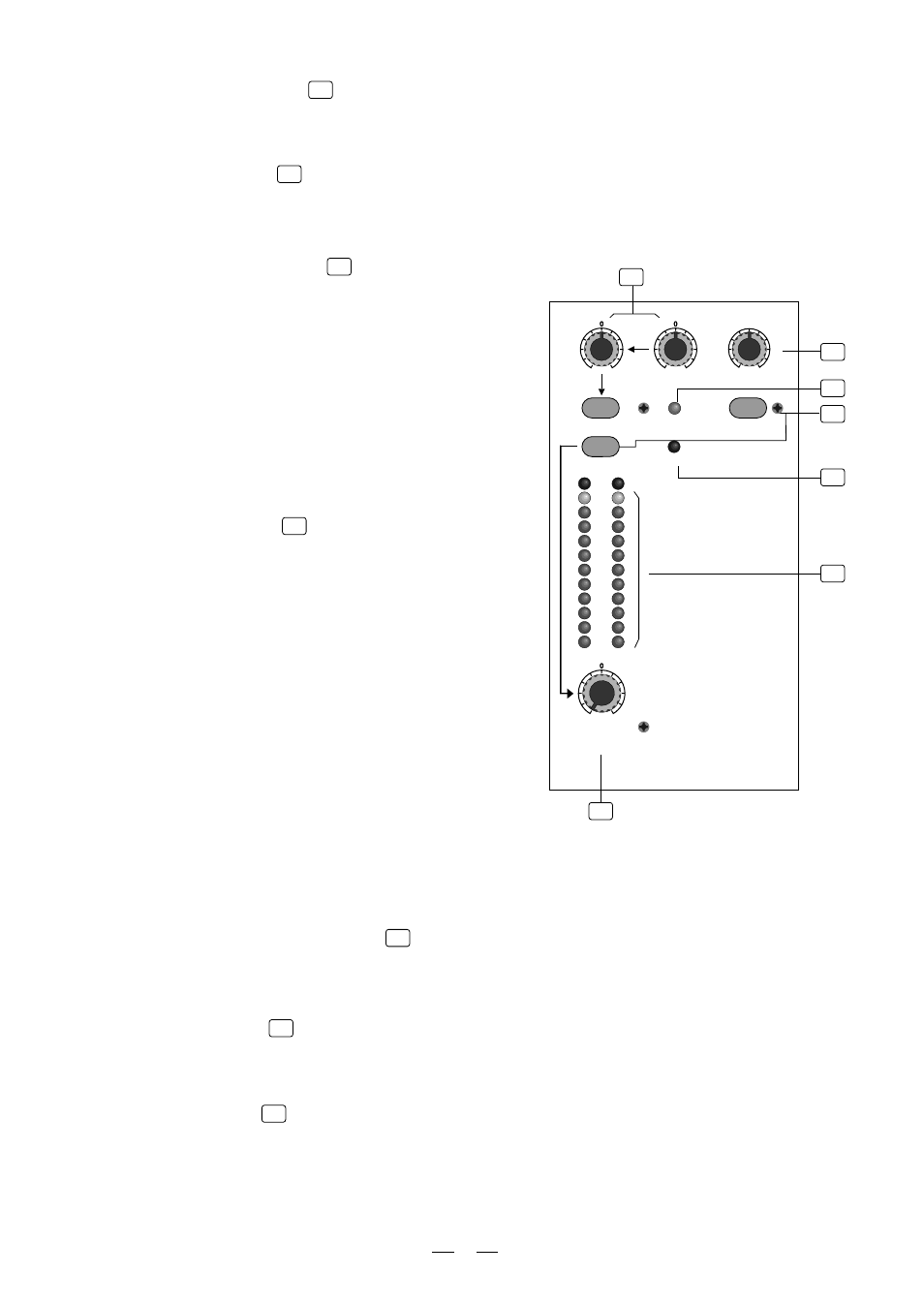

4.11 MASTER SECTION
14
- MAIN MIX LEVEL
This Control set the amount of signal sent either to the Main Out socket or to the Tape Output.
15
- LED METER
This stereo 12 segments Led Meter will indicate the level of the overall output signal.
16
- 2 TRACK signal path
If you push down the 2TK TO CONTROL ROOM
button, the 2 TRACK IN signal will be routed
into the Control Room output and the level will
be adjusted by the Control Room knob nearby
the Main MIX LEVEL knob.
If you push the 2TR TO MIX button the 2 TRACK
IN signal will be routed into the MAIN output
and will be adjusted by the MAIN MIX LEVEL
knob.
17
- AUX RETURN
The Auxiliary Returns 1 and 2 are in fact 2 add-
itional stereo Line inputs.
AUX RETURN 1 is configured to be assigned
permanently to the Main Mix. (It operates in Mono
Mode if you connect only the left jack).
16
18
17
15
14
AUX
RETURN
1
-
+15
-
+15
8
8
-
+15
-
+15
8
8
MAIN MIX
LEVEL
-4
-4
-10
-10
-30
-30
-20
-20
-7
-7
0
0
-2
-2
2
2
4
4
7
7
10
10
OUTPUT LEVEL
OUTPUT LEVEL
CLIP
CLIP
PHANTOM
PHANTOM
POWER
POWER
2TK TO
CONTROL ROOM
2TK TO
CONTROL ROOM
EFX TO AUX1
EFX TO AUX1
2TK TO MIX
2TK TO MIX
2
-
+15
-
+15
8
8
L
L
R
R
-
-
8
8
MAX
MAX
PHONES /
PHONES /
CONTROL
ROOM
CONTROL
ROOM
18
- PHONES/CONTROL ROOM
This Control set the amount of signal sent to the Control Room and headphone.
19
- PHANTOM
This LED indicated when the Phantom Power is switched on.
20
- POWER
This LED indicates when the Power is on in your S-8.
20
19
The EFX TO AUX1 button is used to swtiched the signal
from AUX RETURN 2 between MAIN MIX and AUX
SEND 1.
If a signal is routed to AUX RETURN 1 and no
signal is connected to AUX RETURN 2, the signal
will be switched to AUX SEND 1 via depressing
the EFX TO AUX1, then the signal will be controlled
in level by AUX RETURN 2.
Without doubt, this feature will be very useful for
you.
