Avalon Stoves Astoria Bay - Manual (Page 2)

#98800206
Your Authorized Avalon Dealer Is:
*Heating capacity may vary depending on degree of home insulation, floor plan and ambient temperature zone of the area in which you live.
Contact your local building or fire officials about installation requirements in your area.
Hopper Capacity
Adjustable
Min 48 lbs
Max. 89 lbs.
Heating Capacity*
800 to 2,250 Sq. Ft.
Burn Times
Depending on Hopper Capacity
On Low -28 -52 Hours
On High -8-16 Hours
BTU Range
Low - 13,940
High - 45,100
9. Auger Motor. A heavy-duty gear motor with metal gears, low r.p.m. and
2. high torque, ensures long life and reliability.
11. Variable Speed Convection Blower. This quiet blower draws cool room
10. air around the firebox and two-stage heat exchanger to deliver heated air
10. to your home.
12. Standard Ignitor. Reliable ignition system to make firestarting easy as
10. the flip of a switch, or automatic with the wall thermostat.
13. Ash Dump. No tools required, the ash drop makes ash clean-up in the
10. firebox a simple, mess free operation.
14. Convenient Ash Pan. Designed for ease of removal and disposal.
15. State-of-the-Art Circuit Board Operation. Operate your pellet insert
10. manually or automatically with the use of a wall thermostat for the
10. ultimate in hands free operation.
1. Easy Fuel Loading. Insert top lifts up and locks open to allow
1. easy access for pellet loading.
2. Adjustable Hopper. Hopper is adjustable to accommodate fireplace
2. height. The higher the fireplace, the larger the hopper pellet capacity.
3. Heavy-Duty Auger. Precision auger feeds pellet fuel to the firepot
2. on the automatic or manual feed rate settings.
4. Two-Stage Heat Exchanger. Combination of 10 heat exchange 2.
2. tubes and rear heat exchange plenum gains maximum heat transfer
2. from the insert to your home.
5. Air Tube Scraper. Concealed under the loading door, this easy-to- 2.
2. use, pull rod removes ash from the air exchange tubes with no mess
2. or special tools.
6. Super-Quiet Combustion Blower. Variable speed control allows you
2. to turn the blower down in conjunction with the feed rate.
7. Low Profile. Designed to fit into fireplaces only 20” tall.
8. 4” Pellet Vent. Exhaust uses convenient low cost pellet vent.

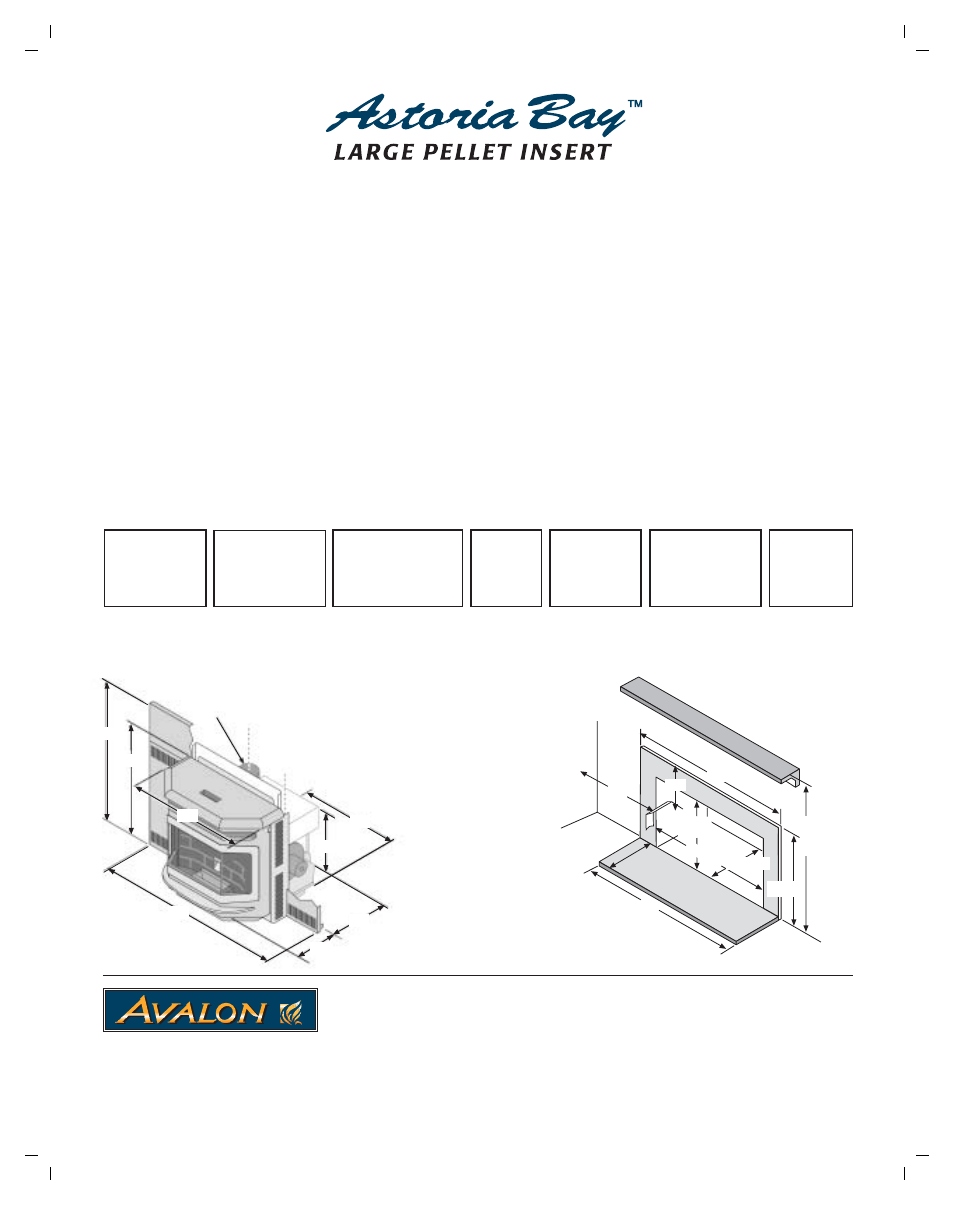

Pellet Insert Dimensions
Efficiency
Up To
82%
Burn Feed Rate
Per Hour
1.7 lbs. on Low
5.5 lbs. on High
10. Exhaust Vent Designed Into Hopper Corner. Vertical vent is designed
10. to be hooked up without requiring additional space in the rear of the
16. Wall Thermostat. Standard with unit.
Glass Viewing
Area
321 Sq. In.
33” to 38”
Depending on
Mantle Depth
36”
Minimum
32 3/4”
42” Min.
**Sidewall and Top Facing
Clearance to Combustible
measured from hopper lid.
20” to
25 3/4”*
36” Min.
14” Min.
6”**
*Depending
on hopper
height
Minimum Fireplace & Clearances
28”
26 1/2”
32”
45”
12”
13 1/4”
25 1/2”
20” to 25 3/4”
Flue is 16 7/8” high
and 7 1/2” left of center
Use these illustrations as a guide only.
For installation instructions please contact your
Avalon Dealer or go to www.avalonstoves.com
NOTE: Improper installation of your pellet
appliance or failure to operate it according
to the guidelines detailed in the
Owner's Manual may negate your
warranty and endanger your home
and family.
8" x 10" Panels:
Maximum Coverage
32" H x 45" W
Tested by
OMNI-Test Laboratories, Inc to
ASTM E 1509-95. This pellet fired
appliance has been tested and listed
for use in manufactured homes in
accordance with Oregon Administrative
Rules 814-23-900 through
814-23-909.
www.avalonstoves.com
™
17. Seven Year Warranty. Lifetime on stainless steel burn pot
8 3/4”**
18
” M
in.
© 2004 T. I.
AVALON reserves the right to improve our product at any
time without prior notice. Photos are for aesthetic purposes
only and may not reflect actual installation requirements.
