To ensure adequate lubricant level:
1. Remove filler plug (Figure 12). Lubricant
must be at least up to bottom of lubricant
filler hole with unit resting on a level-
surface.
2. Add lubricant if required. Allow oil to
drain to level of plug and replace plug.
IMPORTANT: Use only Ariens special gear
lubricant L-2 (Part Number 00008000).
Gearcase filler plug may require an
application of Loc-Tite® 565 thread sealant
with repeated servicing.
GENERAL LUBRICATION
IMPORTANT: Wipe each fitting clean before
and after lubrication. Do not wipe gearcase
filler plug; wiping the gearcase filler plug may
remove thread sealant and cause leaks.
IMPORTANT: DO NOT allow grease or oil to
get on friction disc, friction plate or belts.
NOTE: Apply Ariens Hi-Temp Grease or
equivalent to the lubrication fittings. See
SERVICE PARTS on page 27.
The unit should be lubricated (Figure 13) at
beginning of season or every 25 operating
hours.
Auger Shaft
NOTE: To grease auger shaft, remove shear
bolt nuts, and shear bolts. Apply grease at the
grease zerks and then turn the auger
assemblies on the auger shaft. Replace
shear bolts per instructions in Shear Bolts on
page 19.
SCRAPER BLADE
IMPORTANT: Damage to auger/impeller
housing will result if blade wears down too
far.
Scraper blade is adjustable to compensate
for wear.
To adjust scraper blade:
1. Tip unit back onto handlebar, support
housing and loosen nuts retaining blade.
2. Adjust skid shoes to fully raised position
(housing closest to ground).
3. Reposition scraper blade flush with skid
shoes and tighten lock nuts.
SKID SHOES
Skid Shoes should be adjusted as conditions
require (Figure 14).
1. Position unit on a hard, flat, smooth level
surface.

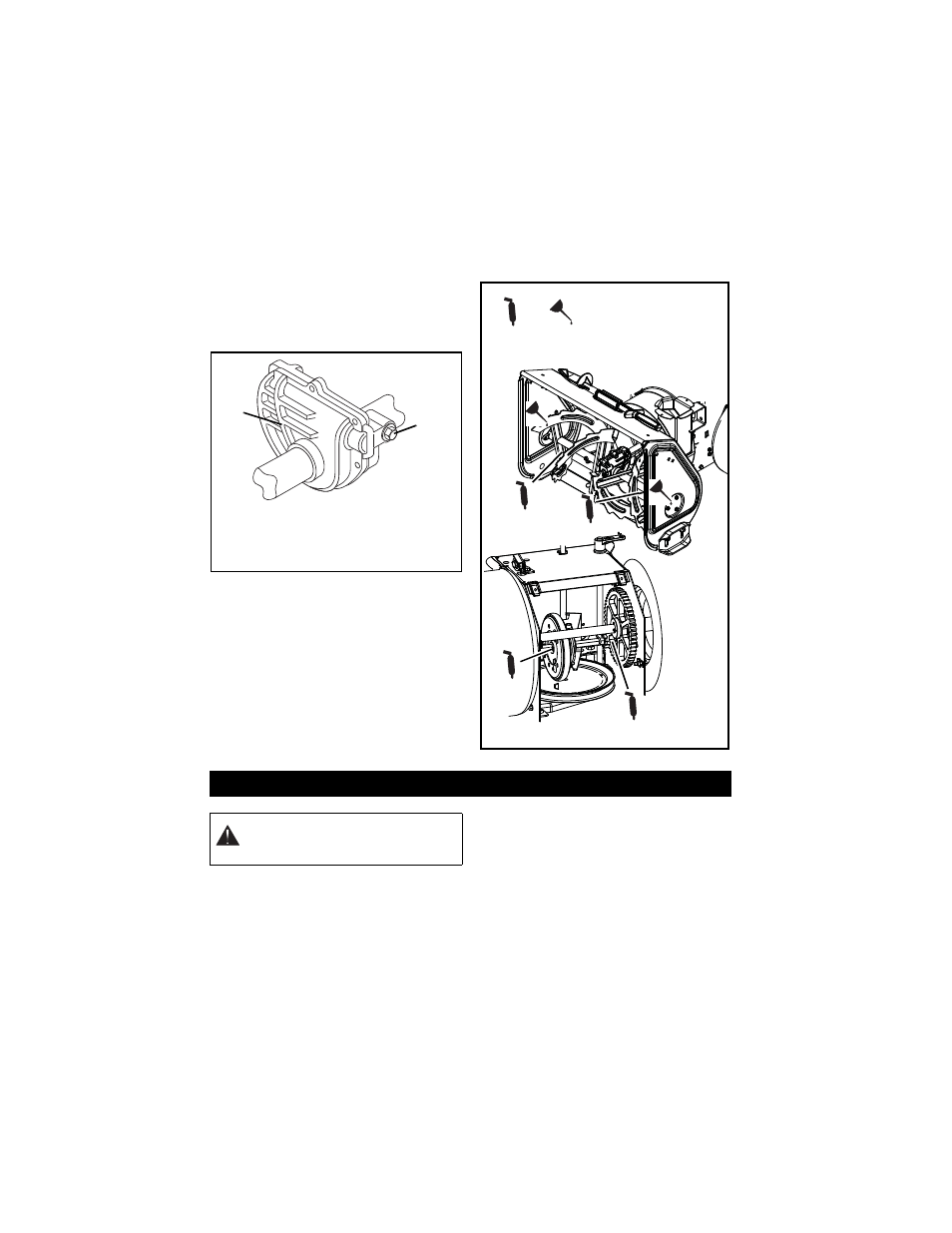

Figure 12
1. Auger Gearcase
2. Filler Plug
1
2
OS1870
OS8051
Grease
Figure 13
Oil
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
