GB - 20

DISCHARGE CHUTE

If discharge chute does not stay in position
while operating, tighten nut on carriage bolt at
pivot point to increase tension on spring
(Figure 17).

SPEED SELECTOR
ADJUSTMENT

To adjust (Figure 18):

1. Disconnect adjustment pivot pin from

speed selector arm. Save hardware for
reinstallation.

2. Place the speed selector on dash panel

in the fastest forward speed position.

3. Turn the speed selector arm straight

down towards the ground as far as it will
go.

4. Thread the adjustment pivot pin along

the shift rod until it aligns with the mating
hole on the speed selector arm, and
then turn it up the shift rod 3 turns. Insert
the pivot pin into hole.

5. Connect the pivot pin to the speed

selector arm with the hardware removed
in step 1.

6. Check forward and reverse speeds:

a. Start unit.
b. Shift speed selector into the first

forward speed.

c. Engage the traction clutch. Unit

should move forward.

d. Stop unit.
e. Shift speed selector into first

reverse speed.

f. Engage the traction clutch. Unit

should move backward.

g. Shut off unit.

7. Adjust pivot pin on the shift rod as

necessary so unit travels forward when
speed selector is in first forward position
and travels backward when speed
selector is in first reverse position.

8. Connect the pivot pin to the speed

selector arm with the hardware removed
in step 1.

NOTE: If first forward speed is too fast,
disconnect adjustment pivot pin from speed
selector arm. Rotate pivot pin to move it up
the shift rod a maximum of two turns and
reconnect pivot pin to speed selector arm.

ATTACHMENT DRIVE BELT
REPLACEMENT

Remove Attachment Drive Belt

(Figures 19, 20 and 21)

1. Shut off engine, remove key, disconnect

spark plug wire and allow unit to cool
completely.

2. Remove two screws securing belt cover

to unit and remove belt cover.

3. Remove spring pin from chute crank and

separate.

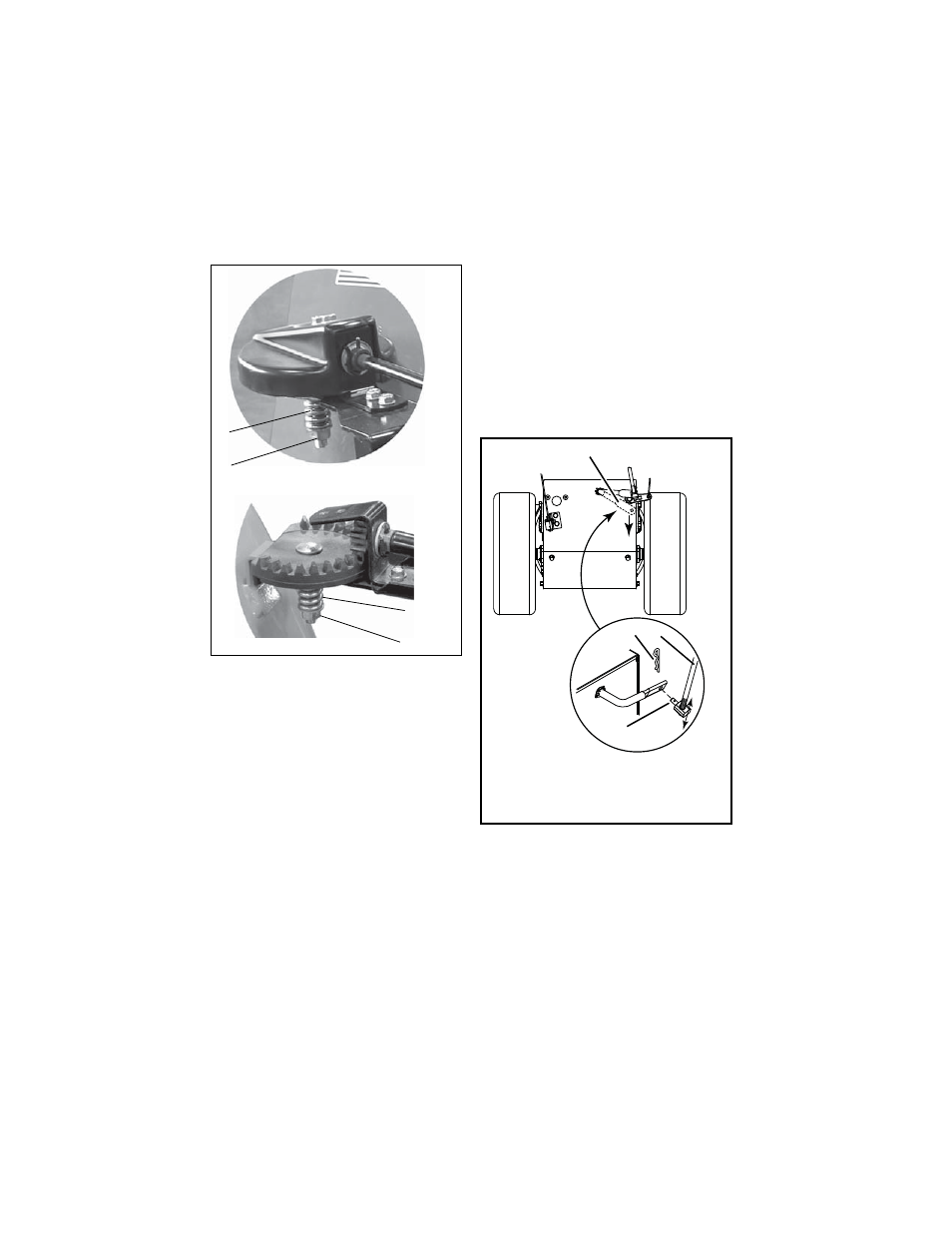

Figure 17

OS7177

1. Spring
2. Nut

1

2

1

2

Figure 18

1. Shift Rod
2. Adjustment Pivot Pin
3. Speed Selector Arm
4. Hairpin

2

4

1

3

OS8060
