Hardware features 6

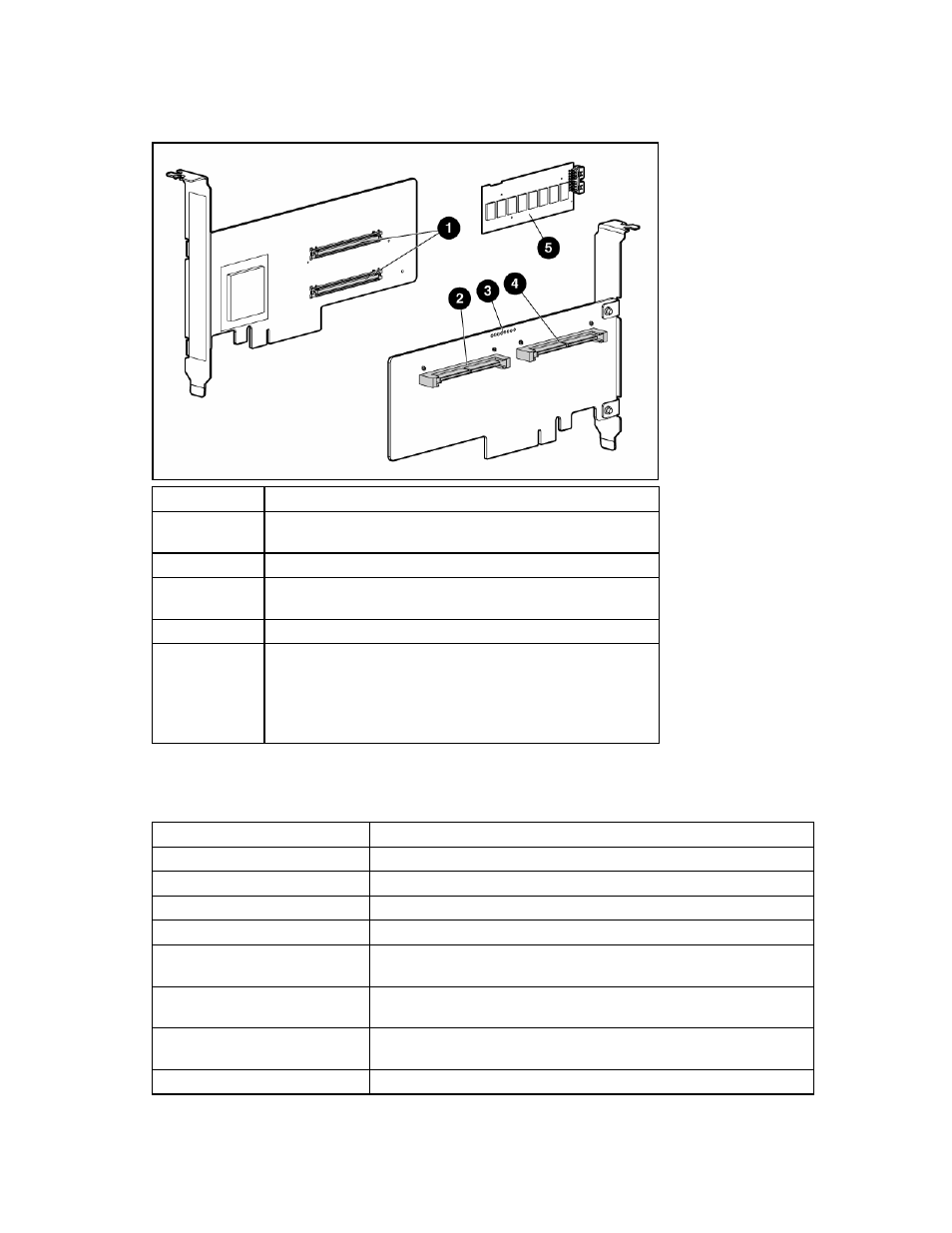

SAS/SATA connectors on the back of the board
Item ID Description
1 Connectors for the cache module (also known as BBWC or
array accelerator).
2 SAS or SATA port 1I (internal), 4x wide SFF8484 connector.
3 Runtime LEDs. To interpret the illumination pattern of these
LEDs, see "Controller board runtime LEDs (on page
32 )".
4 SAS or SATA port 2I (internal), 4x wide SFF8484 connector.
5 Cache module, showing the connector for the cable to the
optional battery pack.
The cache module must be installed on the controller before
the controller is installed in a server, or the controller will not
boot.
Controller specifications
Feature Details
Card type Low-profile PCI Express
Dimensions (excluding bracket) 16.8 cm × 7.0 cm × 1.8 cm (6.61 in × 2.75 in × 0.7 in)
Drive types supported 3.0 Gb/s SAS or 1.5 Gb/s SATA
Maximum power required Approximately 14 W
Temperature range Operating, 10° to 55°C (50° to 131°F)
Storage, -30° to 60°C (-22° to 140°F)
Relative humidity
(noncondensing) Operating, 10% to 90%
Storage, 5% to 90%
RAID levels supported 0, 1, 1+0, and 5; also RAID 6 (ADG) if the battery kit option (next
entry) is used
Battery kit option part numbers Battery pack 390936-001; battery cable 399034-001
