HP DreamColor Z24x Professional Display User Manual
Page 17
3.
Depending on your configuration, connect either the DisplayPort, DVI, or HDMI video cable
between the PC and the monitor.
NOTE:
The video mode is determined by the video cable used. The monitor will automatically
determine which inputs have valid video signals. The inputs can be selected through the On-
Screen Display (OSD) feature by pressing one of the five front bezel buttons to activate the
buttons, and then press the bottom Open Menu button to open the OSD. In the OSD select
Video Input and choose the desired input source.
●

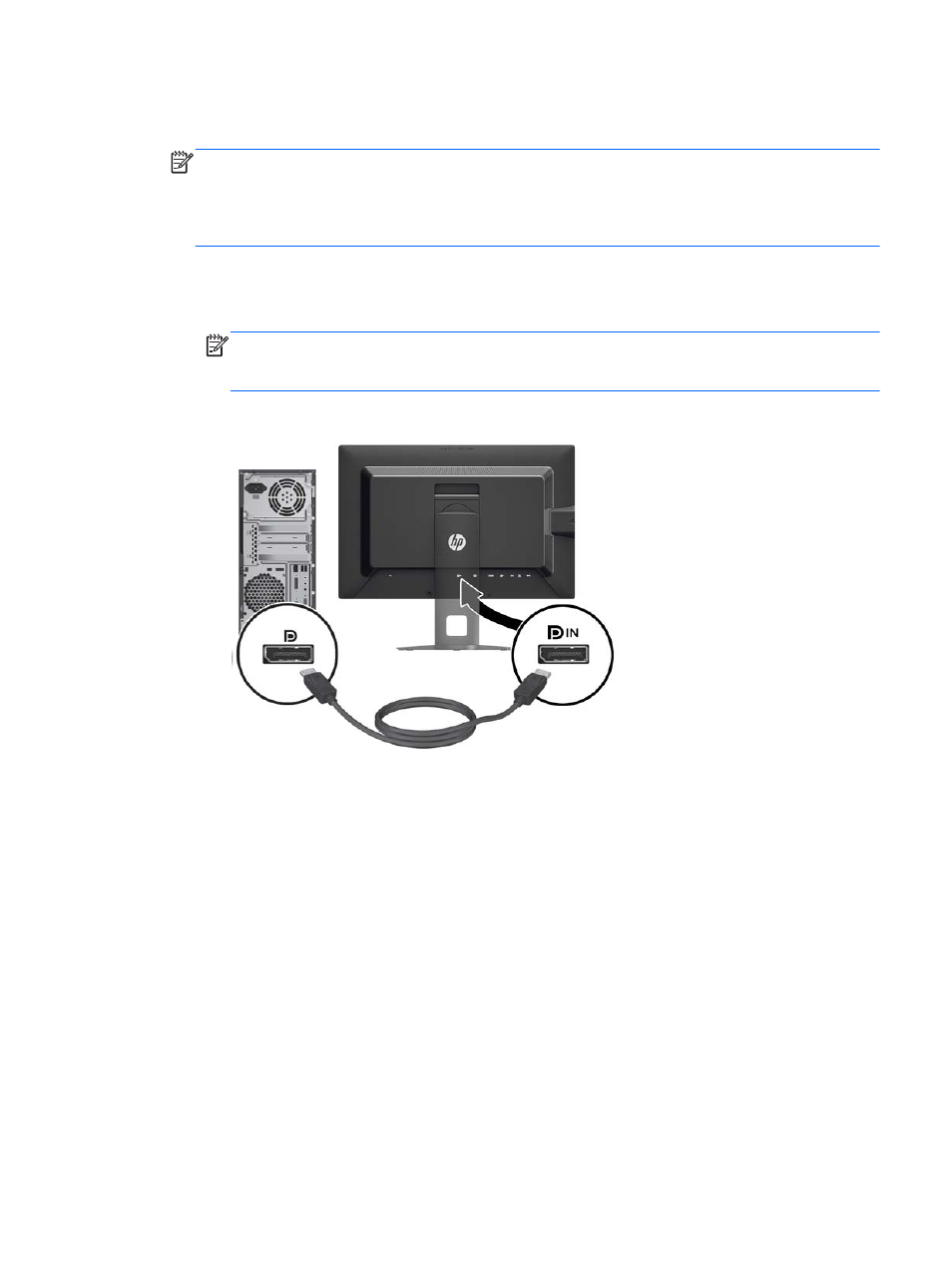

For DisplayPort digital operation, connect the DisplayPort signal cable to the DisplayPort IN
connector on the rear of the monitor and the other end to the DisplayPort connector on the
computer (cable provided).
NOTE:
You must connect the DisplayPort cable to the DisplayPort IN connector, not the
DisplayPort OUT connector. The monitor will not function if you connect the cable between
the DisplayPort OUT connector and the computer.
Connecting the Cables
9
