HP LE2001w 20-inch Widescreen LCD Monitor User Manual
Page 18

CAUTION:
Before beginning to disassemble the monitor, be sure the monitor is turned off and the
power and signal cables are both disconnected.
1.
Disconnect and remove the signal and power cables from the back of the monitor.
2.
Lay the monitor face down on a flat surface.
3.
Remove the four screws on the back of the monitor that connect the monitor panel to the pedestal
base (1) and slide the pedestal base from the monitor panel (2).

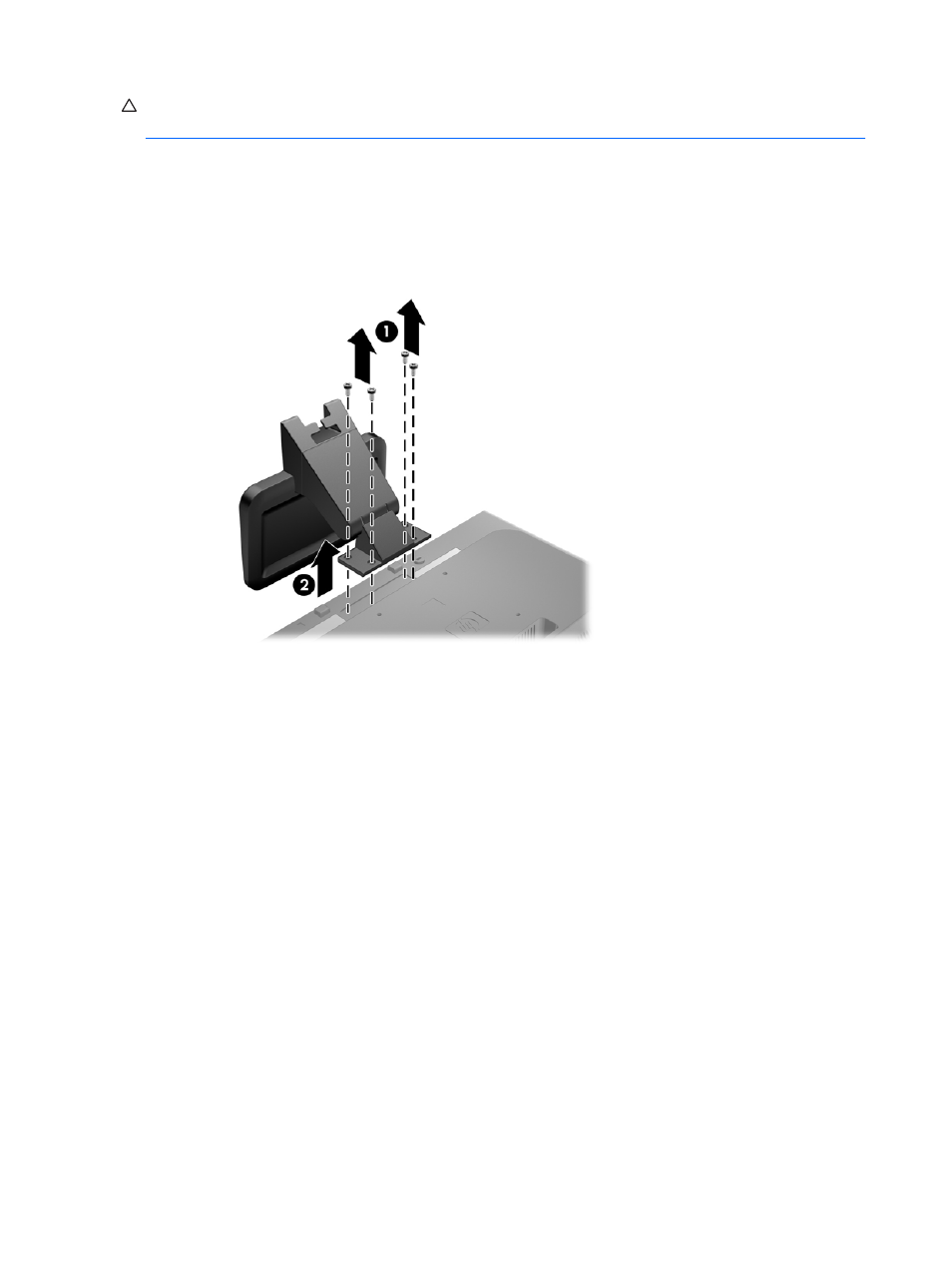

Figure 3-8
Removing the Pedestal Base
10
Chapter 3 Setting Up the Monitor
ENWW
