HA-Fabric Manager user guide 47
To display only products on the Product List:
1. Click View All.
2. Select Levels > Products Only.
Zooming in and out of the Physical Map
You can zoom in or out of the Physical Map to view products and ports.
Zooming in
To zoom in on the Physical Map, use one of the following methods:
1. Click the zoom-in icon ( ) on the HAFM toolbox.
or
Select View > Zoom.
The Zoom dialog box is displayed (
Figure 13 ).

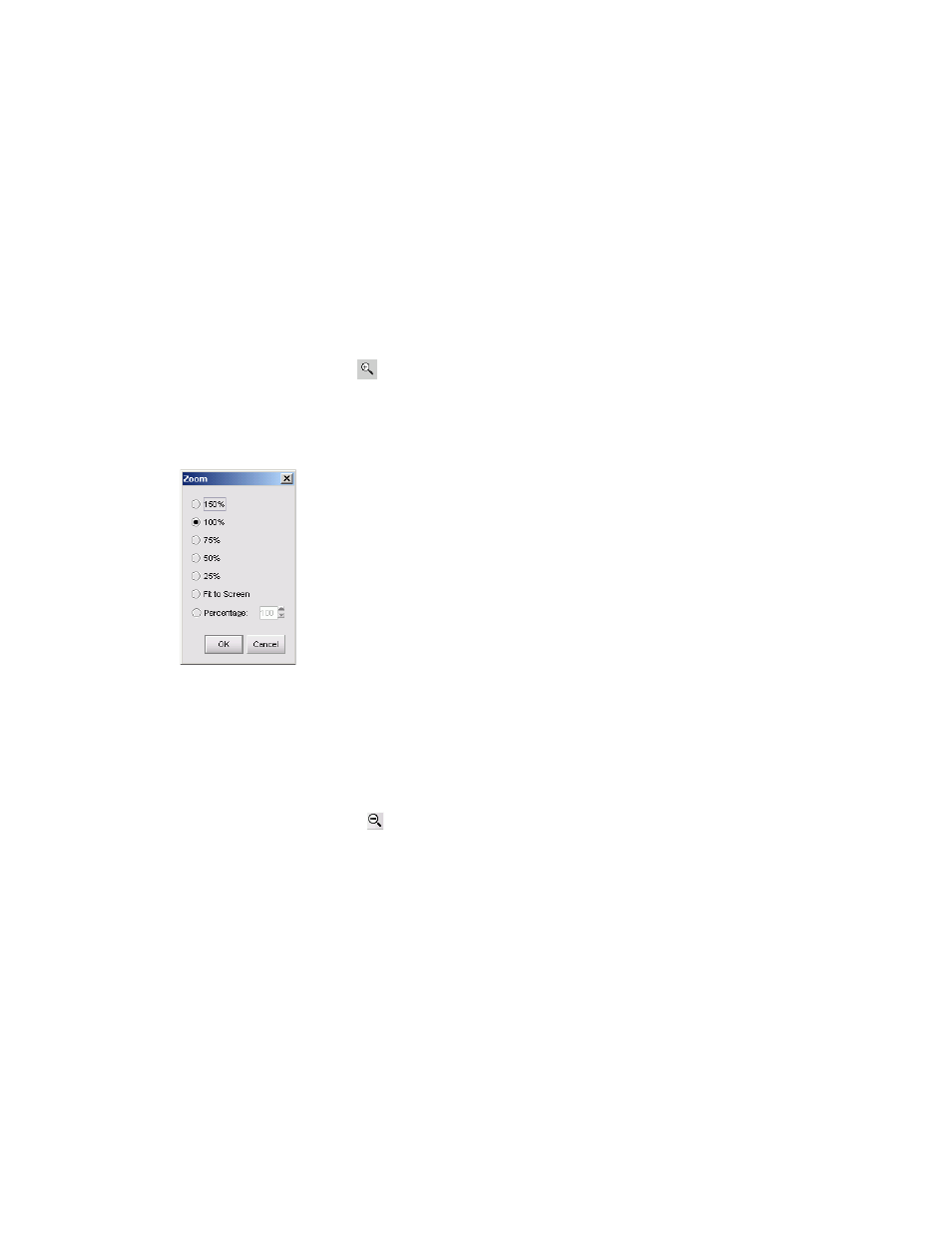

Figure 13 Zoom dialog box
2. Select a zoom percentage.
3. Click OK.
Zooming out
To zoom out of the Physical Map, use one of the following methods:
1. Click the zoom-out icon ( ) on the toolbox.
or
Select View > Zoom.
The Zoom dialog box is displayed (
Figure 13 ).
2. Select a zoom percentage.
3. Click OK.
Changing view options on the Physical Map
To change the view of the Physical Map, select View > Show from the HAFM menu bar, and then
select one of the available view options.
