HP StorageWorks 2.140 Director Switch - Manual (Page 147)

HA-Fabric Manager user guide 145
2. Select Plan > Set Rules from the Planning window menu bar.
The Planning Rules dialog box is displayed (
Figure 90 .)

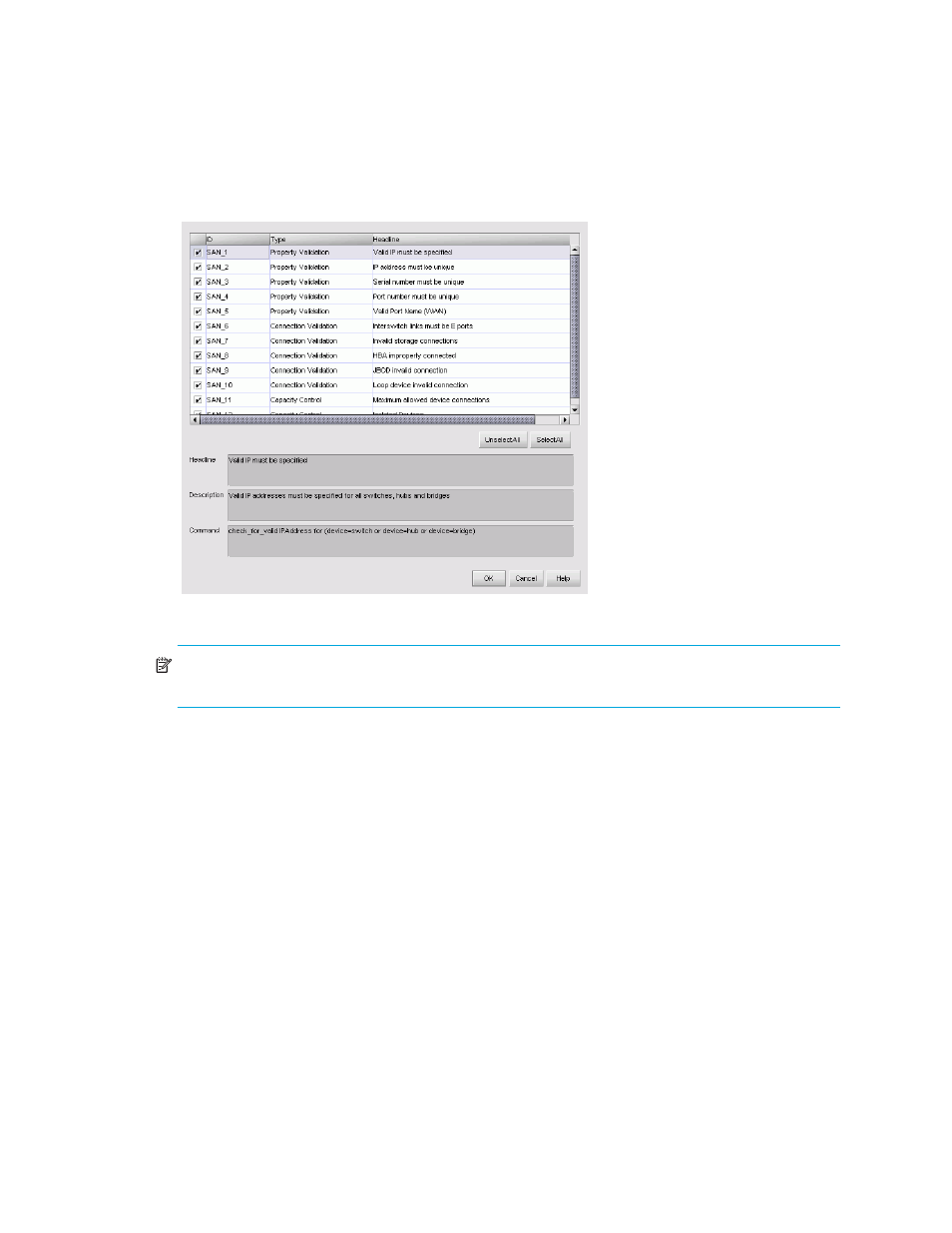

Figure 90 Planning Rules dialog box
NOTE: If spelling or syntax errors are detected, the rule cannot display in the Planning Rules dialog
box.
3. Select the rules you want to apply when evaluating the plan.
4. Click OK.
Plan evaluation
To evaluate a plan:
1. Select SAN > Open plan from the Planning window menu bar to open the plan.
2. Select Plan > Evaluate.
The application evaluates the plan and shows the results in the SAN Evaluation Report window.
3. Review the report. Click the hyperlinks to jump to devices and view the tips to determine
resolutions.
4. Resolve the issues.
5. Select Plan > Evaluate to revaluate the plan.
6. Repeat step 2 through step 5 if more problems are identified.
