Connecting the Fibre Channel Components for the
CTL700 Tape Library
L700 (CTL700) Installation and User’s Guide — 527338-004
A- 7
Connecting the CT9800FC Fibre Channel Converter
to the CTL7FC Fibre Channel Interface Card
Connecting the CT9800FC Fibre Channel
Converter to the CTL7FC Fibre Channel
Interface Card
Figure A-7 shows how a CT9800FC Fibre Channel converter is configured with
a CTL700 tape library and a NonStop Himalaya server. The CTL7FC Fibre
Channel interface card is located inside the front right access door of the
CTL700 tape library. The example in
Figure A-7 is an illustration of how the
converter is configured for the CTL700 tape library’s control path.

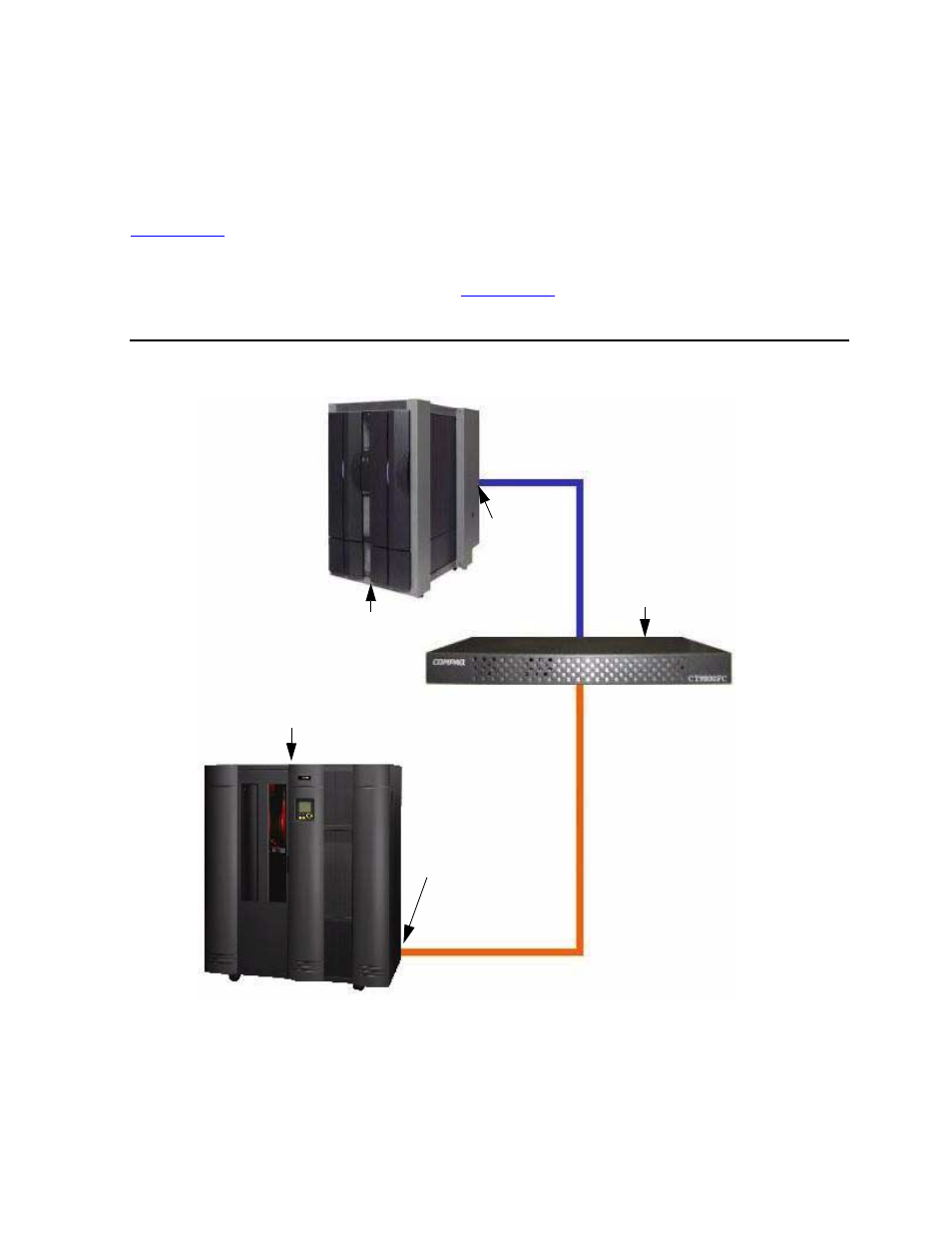

Figure A-7. Example of the CT9800FC Fibre Channel Converter Configuration
With a CTL700 Tape Library and a Nonstop Server
SCSI
(23 Meters Max.)
ServerNet/DA
PMFC
IOMF
NonStop
CT9800FC
Fibre Channel
CTL700
Tape library
Fiber
(500 Meters Max. with 50/125
CTL7FC
Fibre Channel
interface card
converter
server
micro meters optical fiber)
