Switch Explorer View
48 Web Tools Version 3.1.x/4.1.x User Guide
Fabric Tree
The Fabric Tree displays a list of all the switches in the fabric. When you select a
switch from this view it is displayed in the Switch View. You can display switches
in the Fabric Tree list by Name, IP address, or WWN. An example of the Fabric
Tree is shown in
Figure 7 .

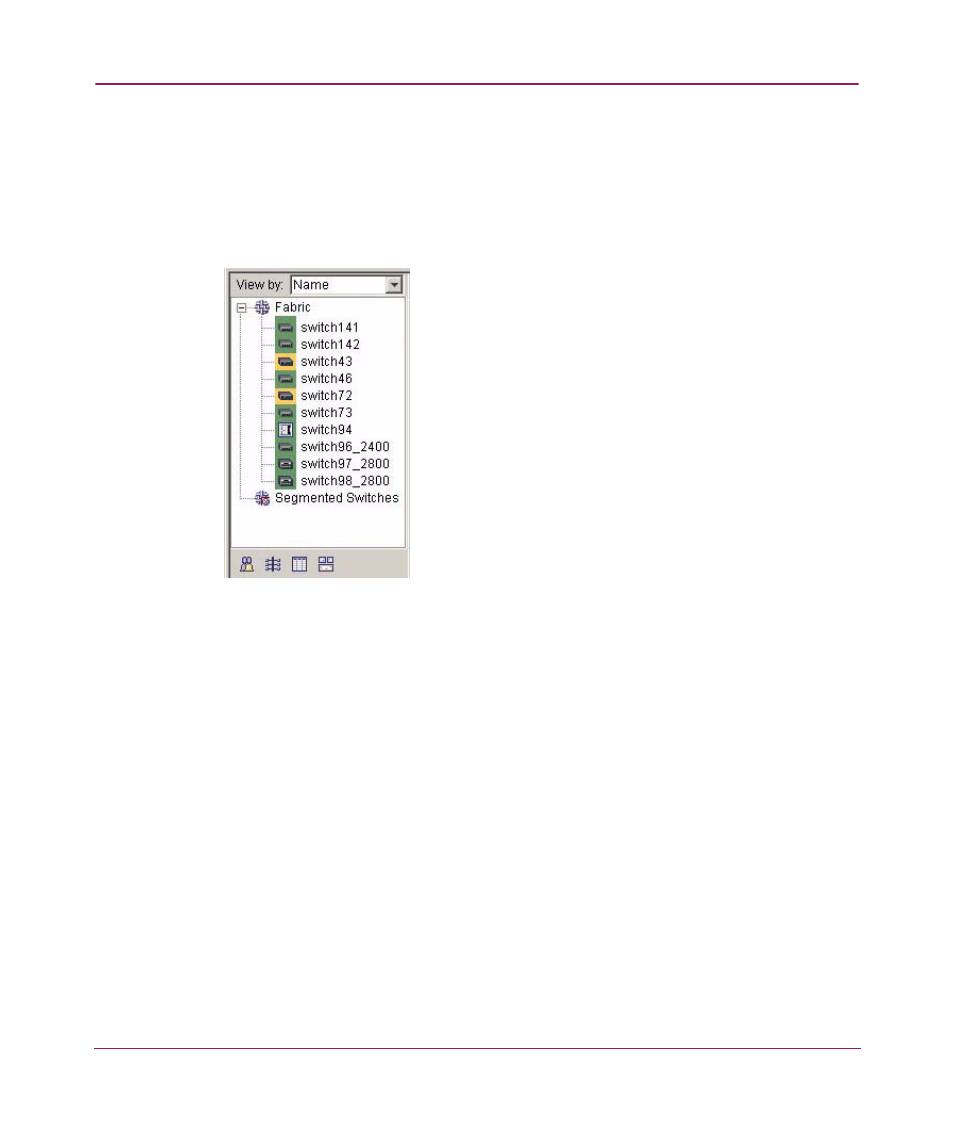

Figure 7: List of Switches in the Fabric Tree View
The fields available in the Fabric Tree are described in Table 5 .
