Port Management
256 Web Tools Version 3.1.x/4.1.x User Guide

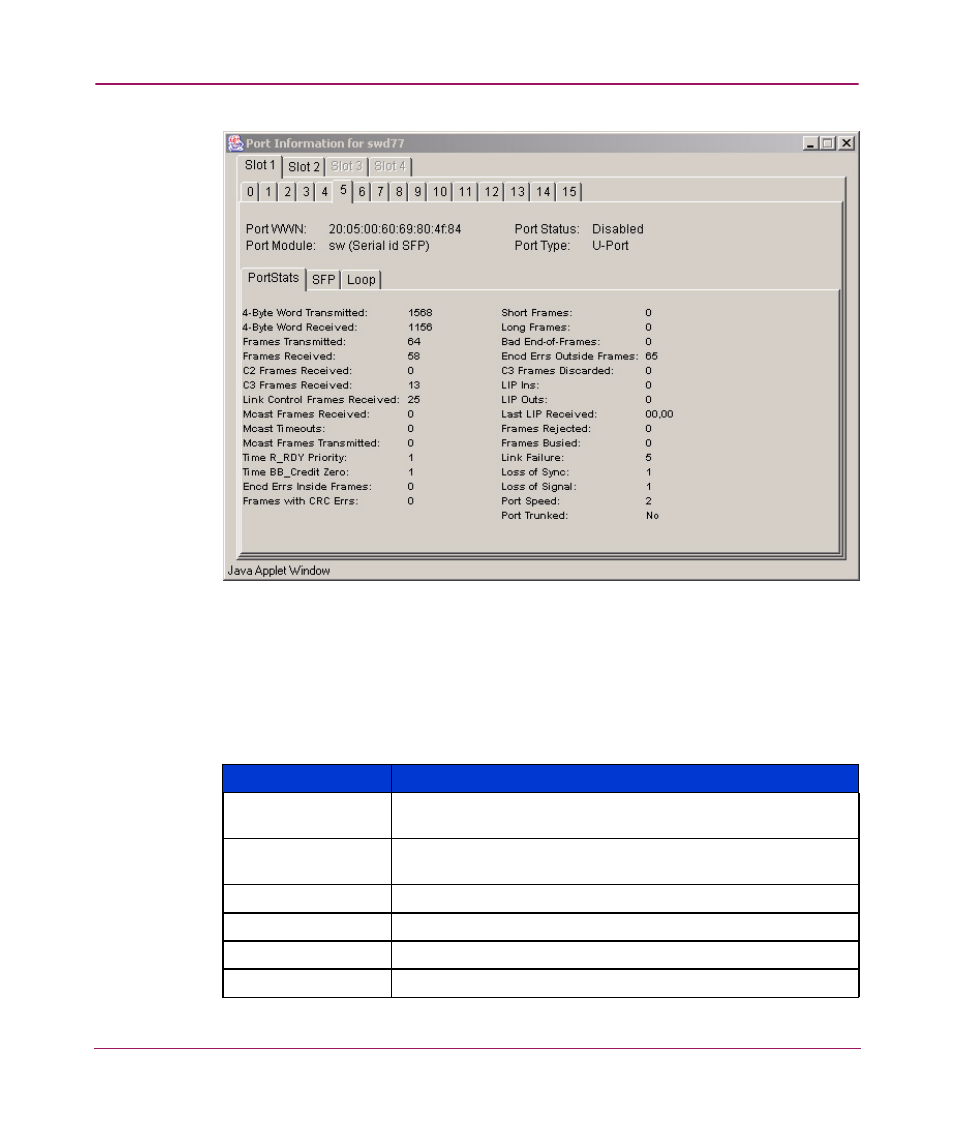

Figure 58: PortStats tab of the Port Information window
PortStats Tab Descriptions
The fields in the Port Information view > PortStats tab are described in
Table 63 .
Table 63: Port Information Window PortStats Tab Field Descriptions
Field Description
4-Byte Word
Transmitted
Displays the number of four-byte words transmitted.
4-Byte Word
Received
Displays the number of four-byte words received.
Frames Transmitted Displays the number of frames transmitted.
Frames Received Displays the number of frames received.
C2 Frames Received Displays the number of class 2 frames received.
C3 Frames Received Displays the number of class 3 frames received.
