Fabric Watch
177 Web Tools Version 3.1.x/4.1.x User Guide
About the Threshold Configuration Tab
Use the Threshold Configuration tab to view and configure Fabric Watch
thresholds for the Fabric Watch class currently selected in the Navigation tree on
the left side of the window.
The Threshold Configuration tab has the following sub-tabs:
■ Area Configuration ( Table 42 ).
■ Element Configuration ( Table 43 ).
■ Configuration Report ( Table 44 ).
Threshold Configuration Tab Example
The Threshold Configuration Tab > Area Configuration Tab is shown in
Figure 42 .

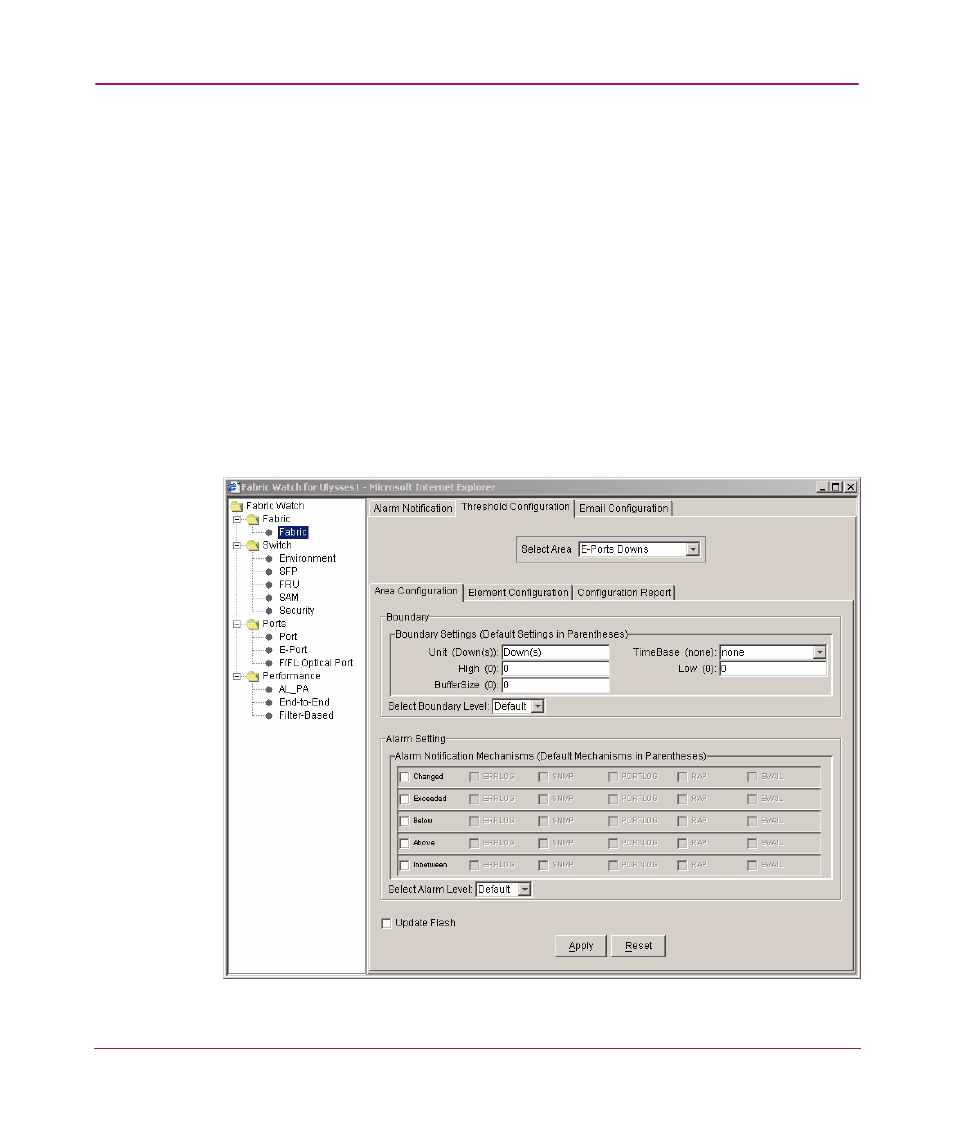

Figure 42: Threshold Configuration Area Configuration Tab
