HA-Fabric Manager user guide 91
Exporting log data
You can export HAFM log data in tab-delimited format. This feature is useful if you want to provide
the data to a third party or include it in a report.
1. On the View Logs dialog box ( Figure 55 ), select the log you want to export.
2. Click Export.
The Save dialog box appears.
3. Browse to the folder where you want to save the file.
4. Enter a file name in the File Name box.
5. Click Save.
To view the exported file in table format, open the file in Microsoft Excel.
See ”
Exporting and importing data ” on page 44 for more information.
Filtering events in the master log
To filter the events that appear in the master log:
1. Click the Define link in the Master Log.
The Define Filter dialog box appears (
Figure 56 ).

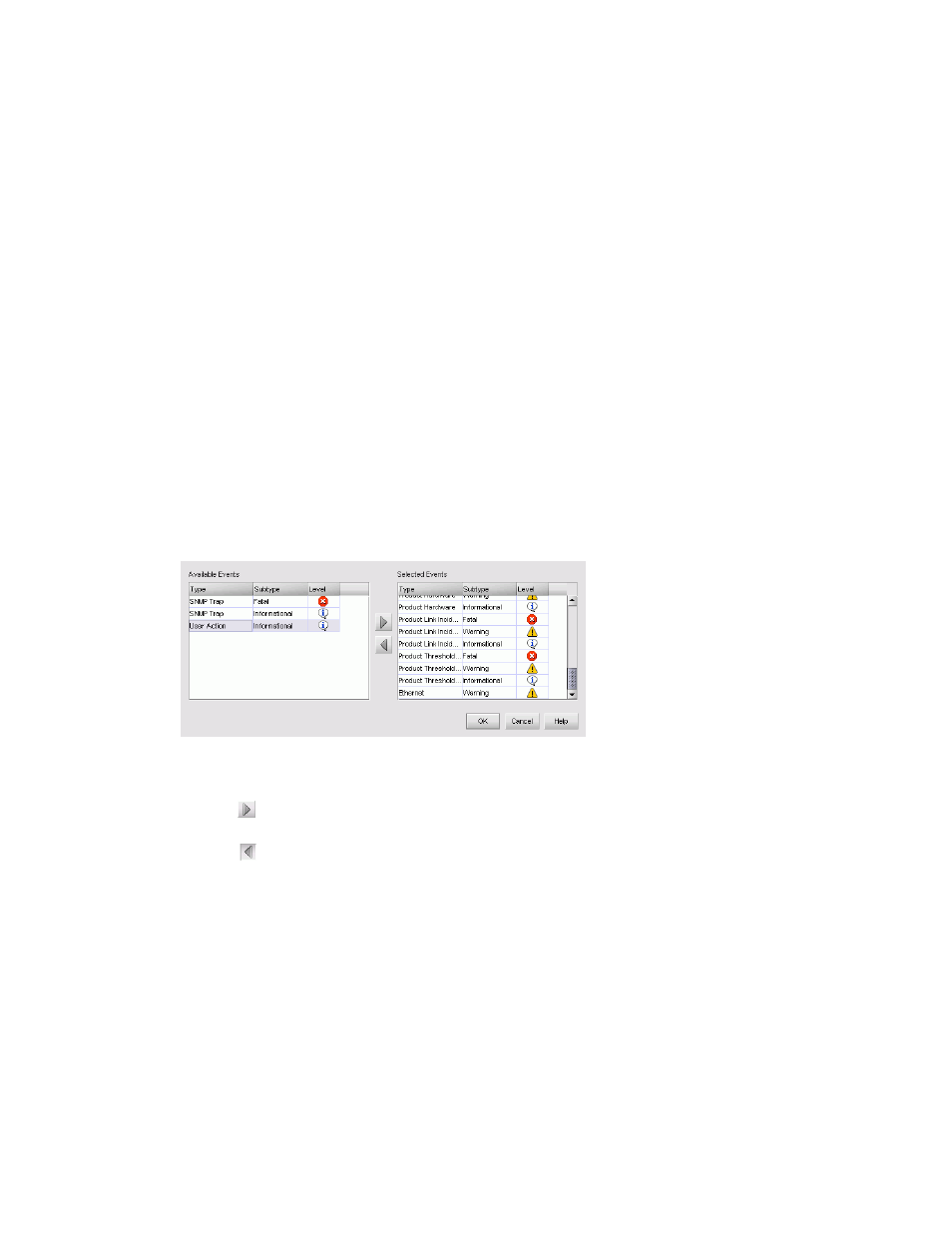

Figure 56 Define Filter dialog box
2. Select the events from the Available Events list that you want to include in the master log.
3. Click .
4. Scan the Selected Events list and select any event you want to exclude from the master log.
5. Click .
6. Click OK.
Copying log entries
Use the cut (Ctrl-C) and paste (Ctrl-V) features to copy data and column headings from logs to other
applications. Use the copy all (Ctrl-A) feature to select all from the menu.
