HA-Fabric Manager user guide 55
The Remote Access dialog box opens ( Figure 22 ).

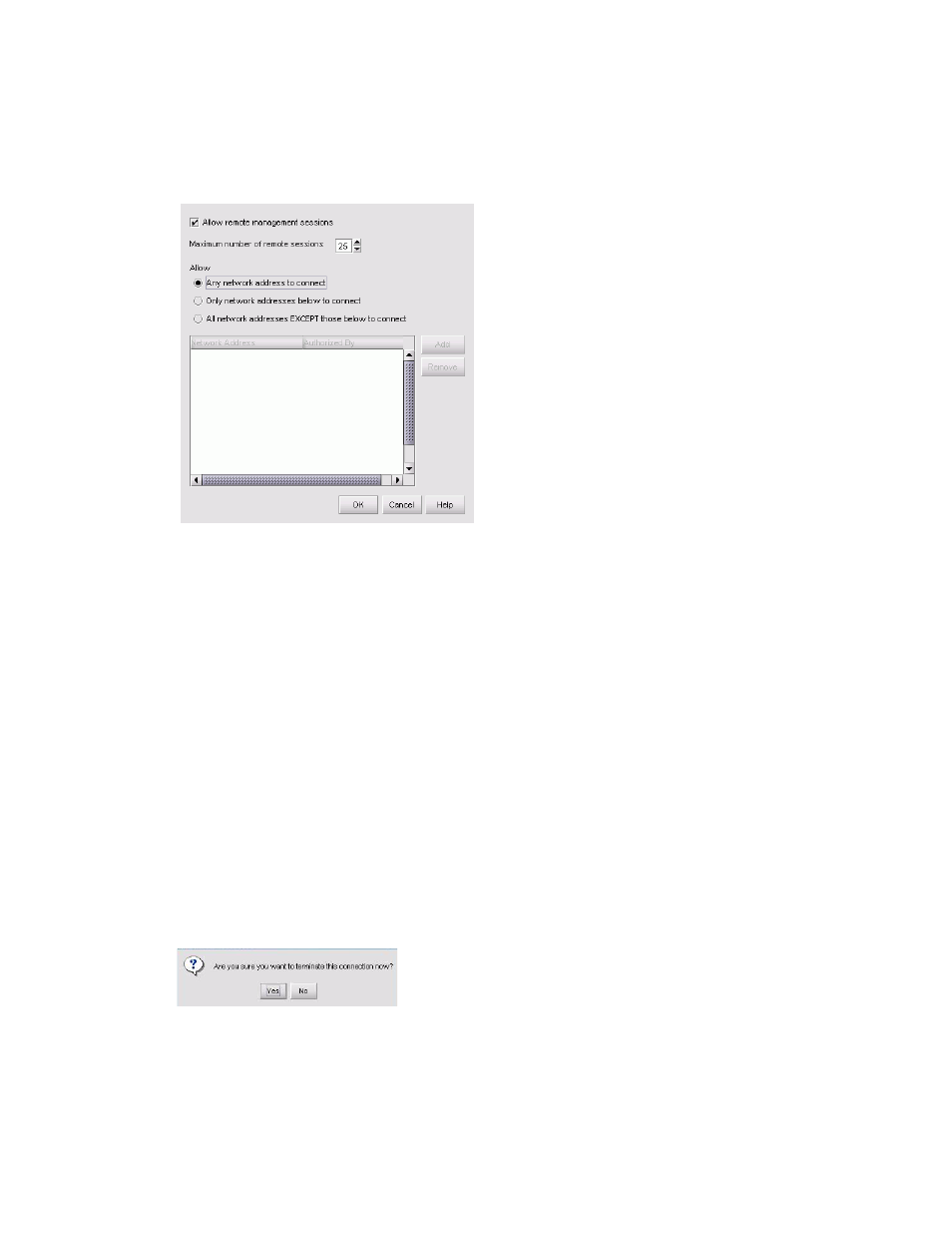

Figure 22 Remote Access dialog box
2. Select the Allow remote management sessions check box to allow others to access the
appliance remotely.
3. Enter the maximum number of remote sessions you want to allow.
4. Select whether to allow all or some network addresses to connect.
5. If you select Only network addresses below to connect or All network addresses
EXCEPT those below to connect, enter the appropriate addresses in the Network Address
box.
• To add an address, click Add, enter a network address, and click OK.
• To remove an address, highlight the address in the table and click Remove.
6. Click OK.
Disconnecting a user
To disconnect a user, an administrator can:
1. Select SAN > Active Sessions at the HAFM menu bar.
The Active Sessions dialog box opens.
2. Select the user that you want to disconnect and click Disconnect User.
A message box opens (
Figure 23 ).
Figure 23 Disconnect User message box
