HA-Fabric Manager user guide 43
Zooming in and out of the Physical Map
You can zoom in or out of the Physical Map to view products and ports.
Zooming in
To zoom in on the Physical Map, use one of the following methods:
1. Click the zoom-in icon ( ) on the HAFM toolbox.
or
Select View > Zoom from the HAFM menu bar.
The Zoom dialog box opens (
Figure 14 ).

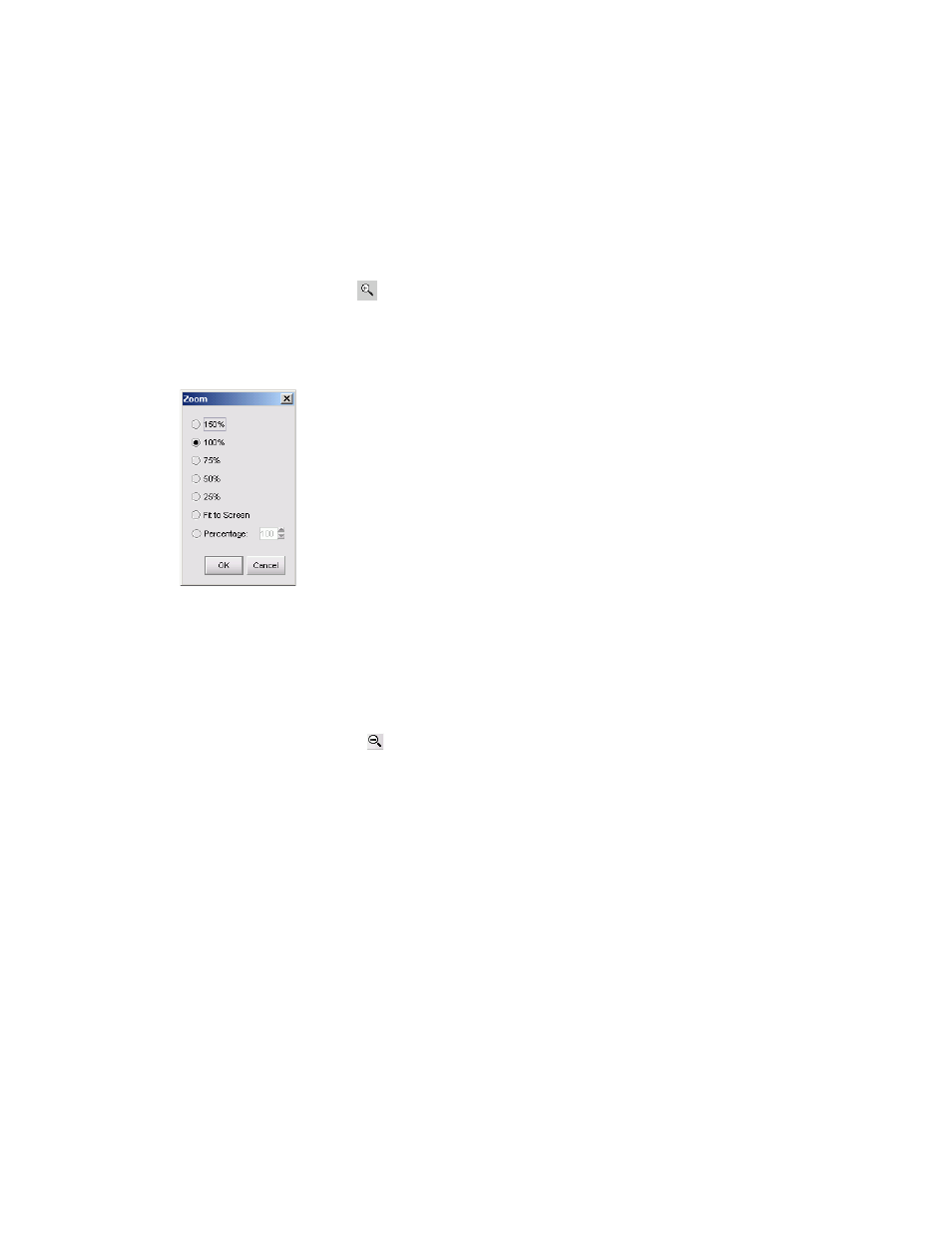

Figure 14 Zoom dialog box
2. Select a zoom percentage.
3. Click OK.
Zooming out
To zoom out of the Physical Map, use one of the following methods:
1. Click the zoom-out icon ( ) on the toolbox.
or
Select View > Zoom from the HAFM menu bar.
The Zoom dialog box opens (
Figure 14 ).
2. Select a zoom percentage.
3. Click OK.
Changing view options on the Physical Map
To change the view of the Physical Map, select View > Show from the HAFM menu bar, and
then select one of the available view options.
Turning flyovers on or off
Flyovers appear when you place the cursor on a product. They provide a quick way to view a
product’s properties. To turn flyovers on or off, select View > Enable Flyover Display from the
HAFM menu bar, and then select On or Off.
