HA-Fabric Manager user guide 41
Selecting Action tab with Create Group Event Log selected
Select Create Group Event Log and the following tabs display:
• Select Action
• Select Switches
• Create Log
Displaying Select Action tab
Displays the Select Group Action options.
• Run data collection
• Install E/OS firmware
• Create Group Event Log
See figure ( Figure 12 )
Displaying Select Switches tab
Displays all switches and directors that are discovered by the appliance and lets the user select any
set of those products for use in the group manager.

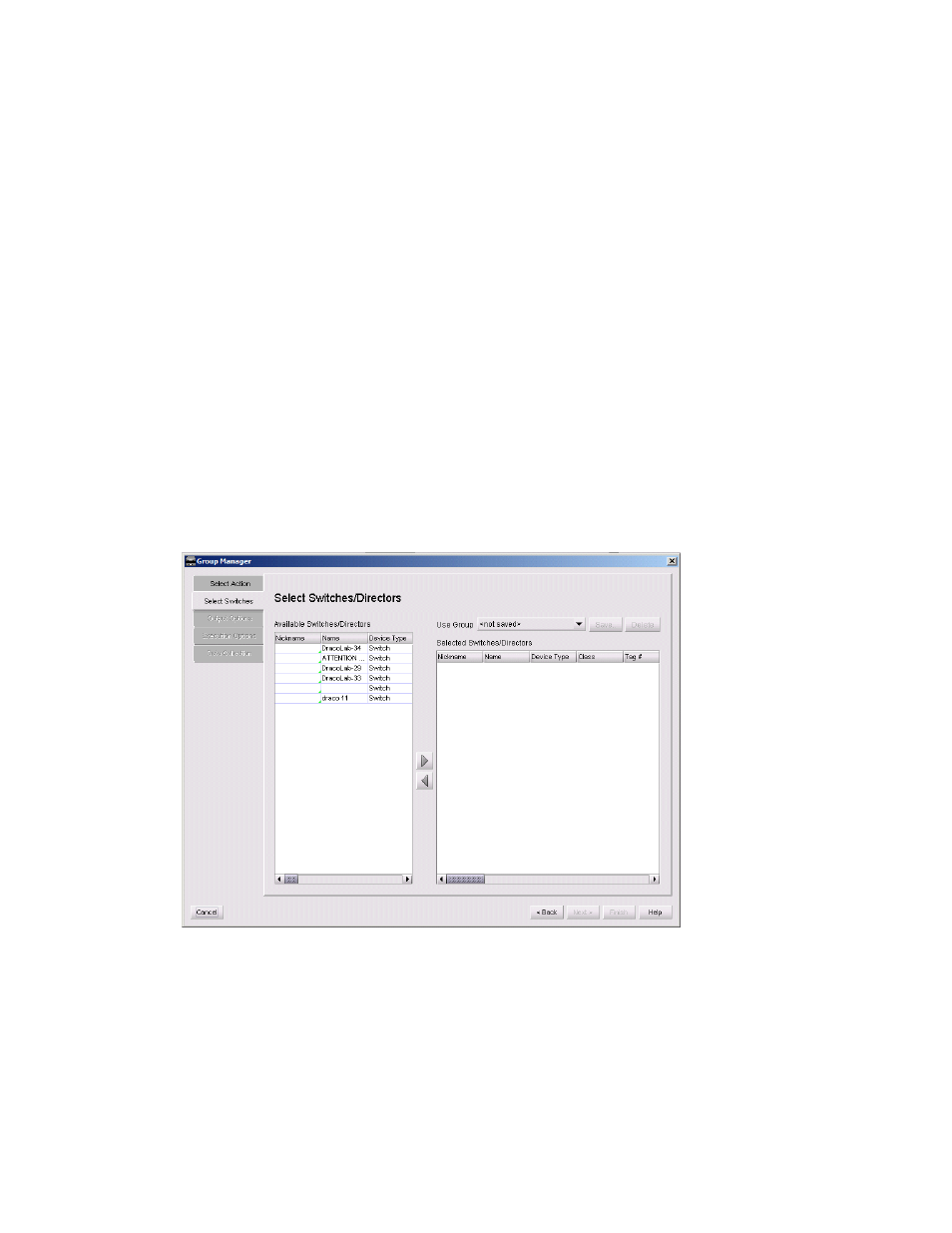

Figure 13 Select Switches/Directors dialog box
Select switches and directors in the Available Switches/Directors table and move them to the
Selected Switches/Directors table or to remove them from the Selected list using the arrows.
