Using the HAFM application
40

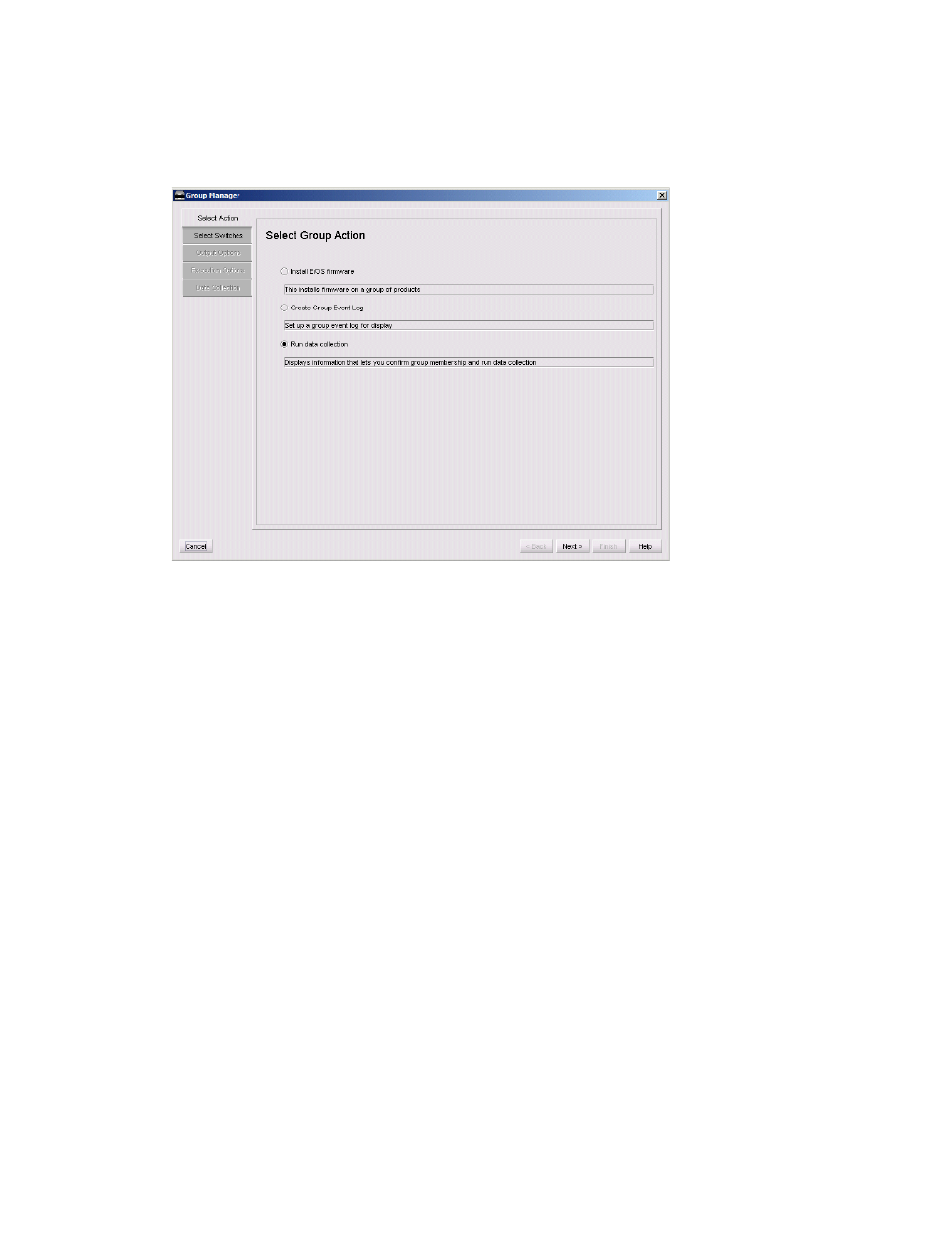

Figure 12
Select Group Action dialog box
Select Run data collection and the following tabs display on the left side. The tabs correspond to
the steps for the action. The options that cannot be selected initially, can be selected as previous
tabs are completed.
•
Select Action
•
Select Switches
•
Output Options
•
Execution Options
•
Data Collection
Selecting Action tab with Install E/OS selected
The Install E/OS firmware option installs firmware on a group of products. Select Install E/OS
firmware and the following tabs display on the left side:
•
Select Action
•
Select Switches
•
Select Firmware
•
Execution Options
•
Install
•
History
