Using the HAFM application 38
You can determine the discovery status of products by looking at the status column in the Product
List. Table 6 shows the list of operational statuses and their equivalent discovery states.
Grouping on the Physical Map
To simplify the Physical Map, devices appear in groups ( Figure 11 ). Groups appear with
background shading and are labeled as a group. You can expand and collapse groups to easily
view a large topology.

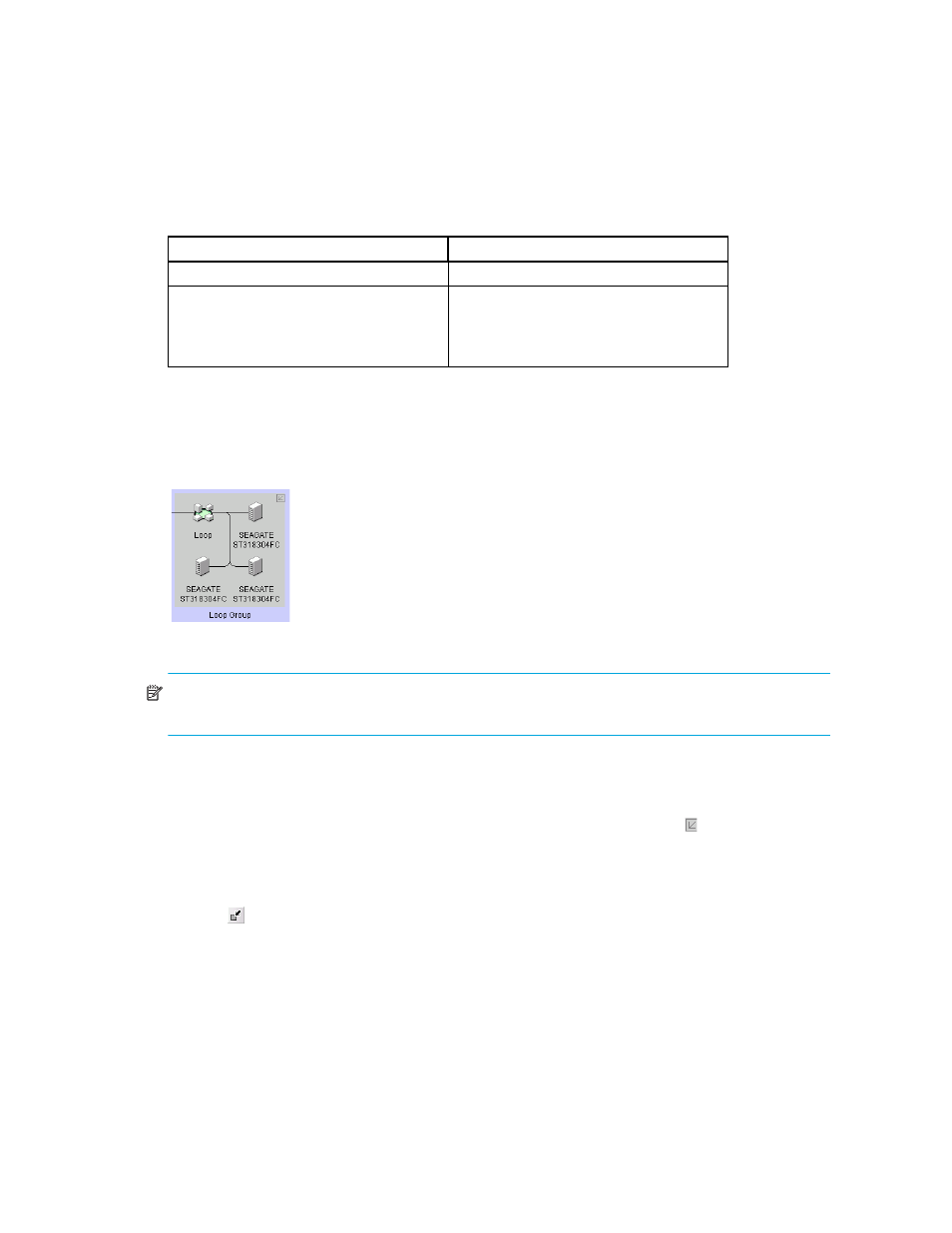

Figure 11 A group on the Physical Map
NOTE: Zonable fabrics are true fabrics. Fabric groups are a set of connected devices that may
or may not be fabric devices.
Collapsing groups
To collapse a single group on the Physical Map:
• Double-click the icon at the top right corner of the group on the topology ( ).
• Double-click in the group, but not on a device.
• Right-click in a group, but not on a device, and select Collapse.
To collapse all groups on the topology by one level, click the Collapse icon on the HAFM
toolbox ( ).
Expanding groups
To expand a group on the Physical Map:
• Double-click the group icon.
• Right-click the group icon and select Expand.
Table 6 Discovery state equivalent
Operational status Discovery state
Unknown Offline
Operational
Degraded
Failed Online
