HA-Fabric Manager user guide 117
The planned device’s Properties dialog box appears ( Figure 75 ).

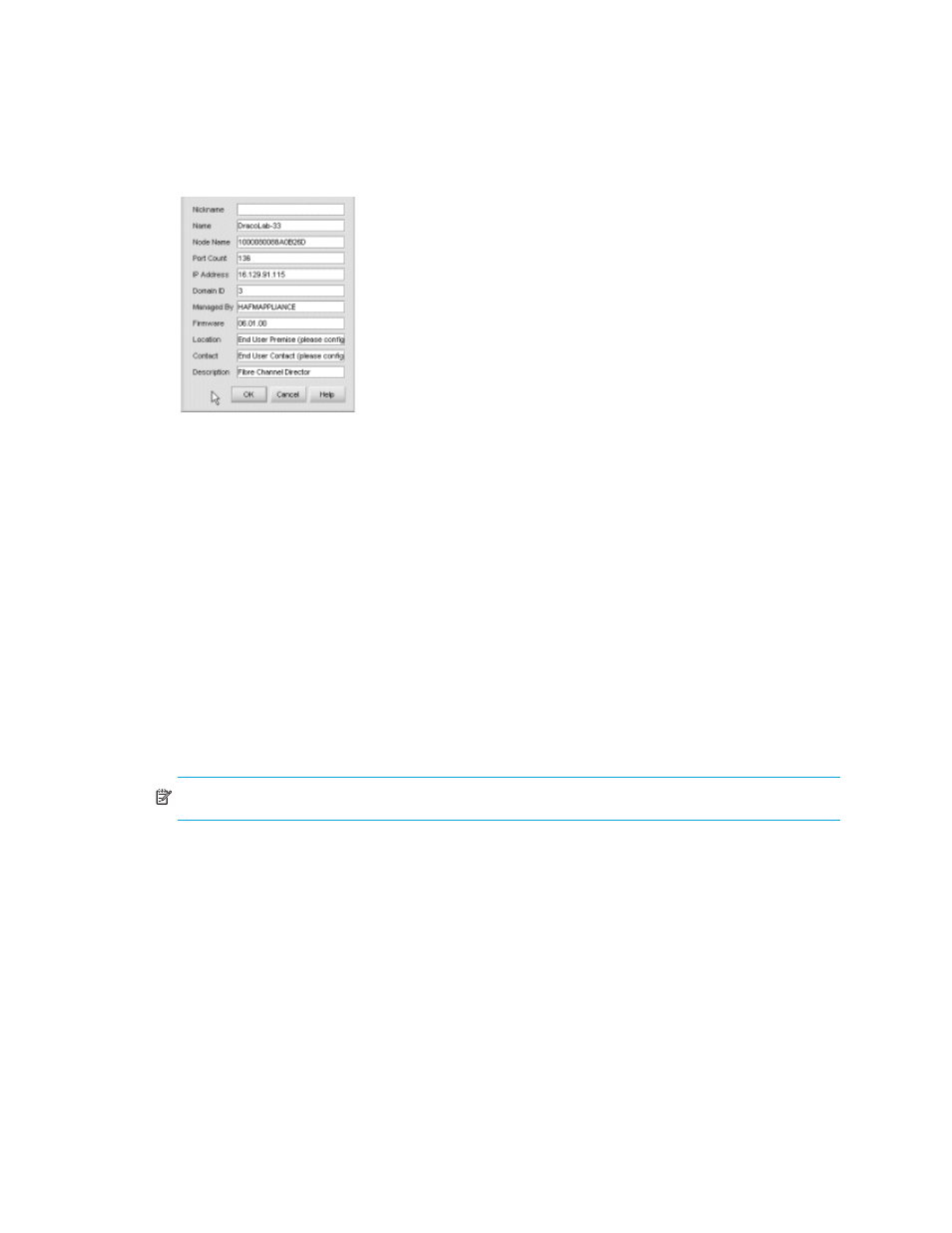

Figure 75 Planned device Properties dialog box
2. Enter a nickname for the device in the Nickname box (optional).
3. Enter or edit information.
4. Click OK.
Deleting devices
To delete planned devices right-click on the planned device icon on the Physical Map and select
Delete.
Displaying a planned device as an installed device
Right-click on a planned device icon on the Physical map and select Planned Device.
• If the Planned Device option is selected, the device icon appears inside a box icon.
• If the option is not selected, the device icon appears without a box.
Editing port types
You can arrange devices and edit a planned device’s port types:
NOTE: You can perform this task only in the Planning window.
1. Select View > Planned SAN from the Planning window menu bar.
2. Add devices as necessary.
3. Rearrange devices as necessary.
4. Connect the devices.
5. Right-click a planned device icon and select Ports to view the device’s ports.
6. Click the black arrow next to the port number.
