HA-Fabric Manager user guide 109
1. Select Configure > Open Trunking from the HAFM menu bar.
The Configure Open Trunking dialog box appears (
Figure 67 ).

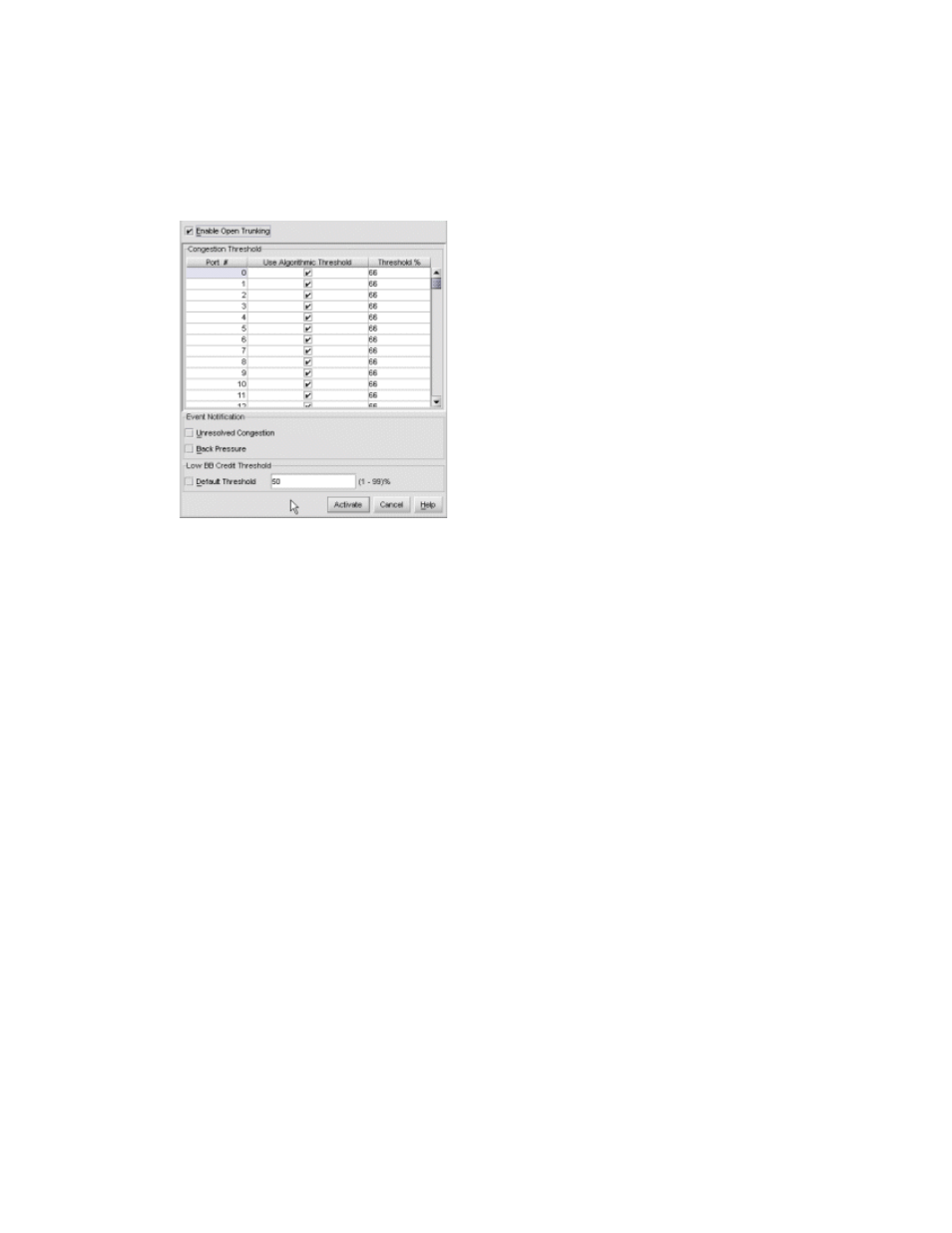

Figure 67 Configure Open Trunking dialog box
2. Select the Enable Open Trunking check box.
3. Specify the congestion threshold value.
If you do not specify a threshold value for a port, open trunking uses a default value that is
based on port type (1 Gb/s or 2 Gb/s) and channel bandwidth.
4. Select the Event Notification options, as appropriate.
5. Set the low BB Credit threshold value.
6. Click Activate to enable these values on the switch and close the dialog box.
Global threshold changes
In the Configure Open Trunking dialog box, right-click on a column in the Configuration Threshold
table to display menu options that globally change values.
• Use Algorithmic Threshold—Right-click this column to display these options:
• Set All to Default—Adds check marks to all check boxes in this column and sets all cells
of Threshold % column to default values
• Clear All—Clears all check boxes in this column and restores values in cells of Threshold %
column with previous values
• Threshold %—Right-click this column to display these options:
• Set All To xx—Sets all cells in this column to the value (xx) that you clicked
• Restore All—Sets all cells in the column to the previous values
