HP StorageWorks 2.32 Edge Switch - Manual (Page 101)

HA-Fabric Manager user guide 101
The Add Rule dialog box appears ( Figure 63 ).

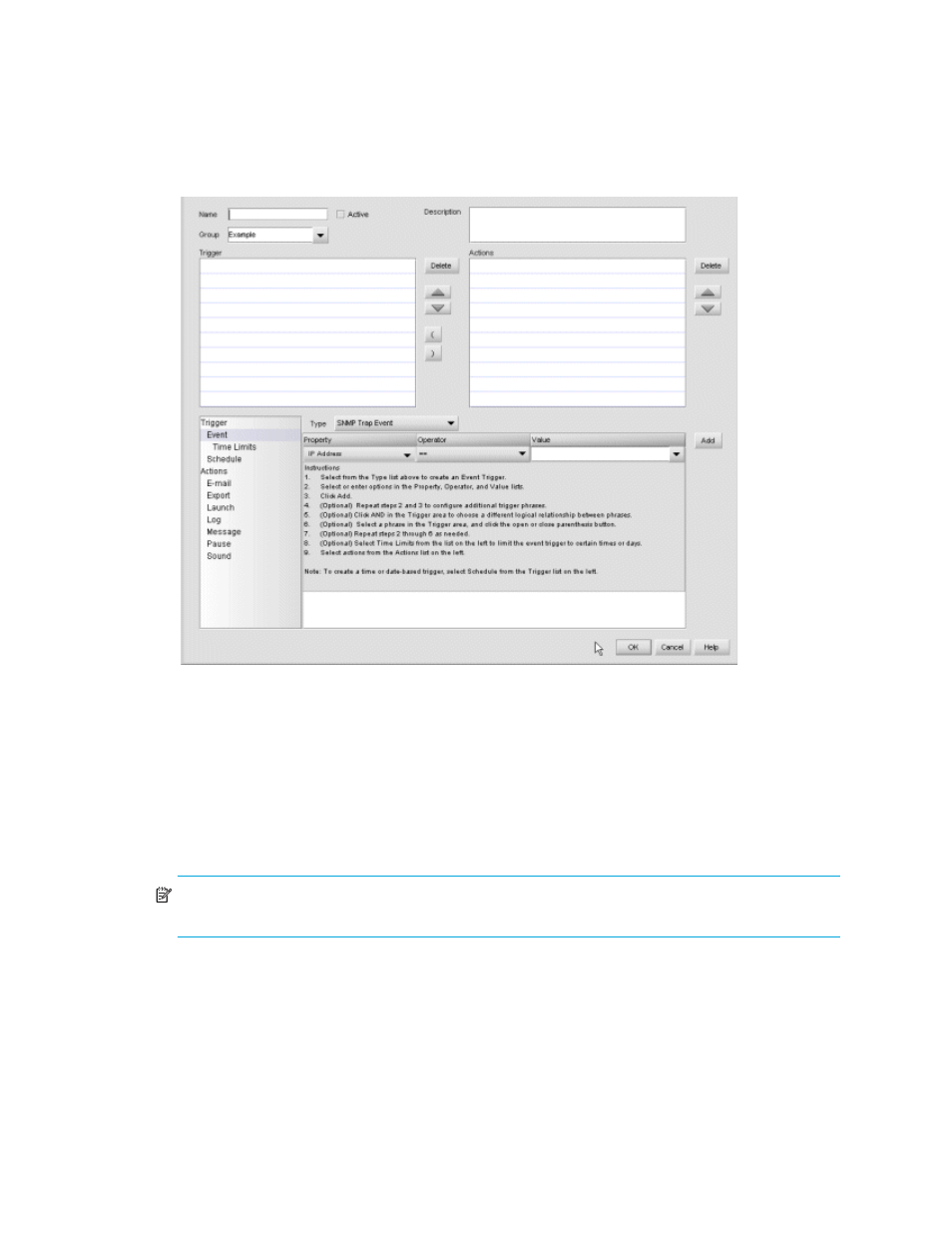

Figure 63 Add Rule dialog box
3. Enter information in the following boxes:
• Name
• Group
• Description
4. Select the Active check box to make the rule active after you are finished creating it.
5. Select the type of trigger from the trigger list.
6. Follow the instructions on the screen.
NOTE: Each selection on the Trigger list or Actions list shows a different dialog box with
instructions. Follow the instructions on each dialog box to create rules.
Managing Event Management
You can turn Event Management on or off by clicking the on or off button on the top right corner or
the Event Management tab.
