Installing and Configuring the ACL Tape Drive for the
NonStop S-Series Server
N1528A and N1529A ACL Tape Drive Installation and User’s Guide— 544594-002
3 -5
Installation Procedure for Old Model
Installation Procedure for Old Model
1. Check that the power switch on the tape drive is set to the off position. See
2. Connect the power cord to the tape drive’s AC power receptacle. See
.
3. Make sure the power cord is fully seated.
4. Connect the 68-pin to 68-pin SCSI cable to the top SCSI port on the SCSI
Converter card. See
.
5. Connect the other end of the SCSI cable to a supported SCSI port on the server.
You can attach the tape drive to a NonStop S-series server using one of the
following:
Note. Do not attach the male end of the power cord to a power outlet at this time.

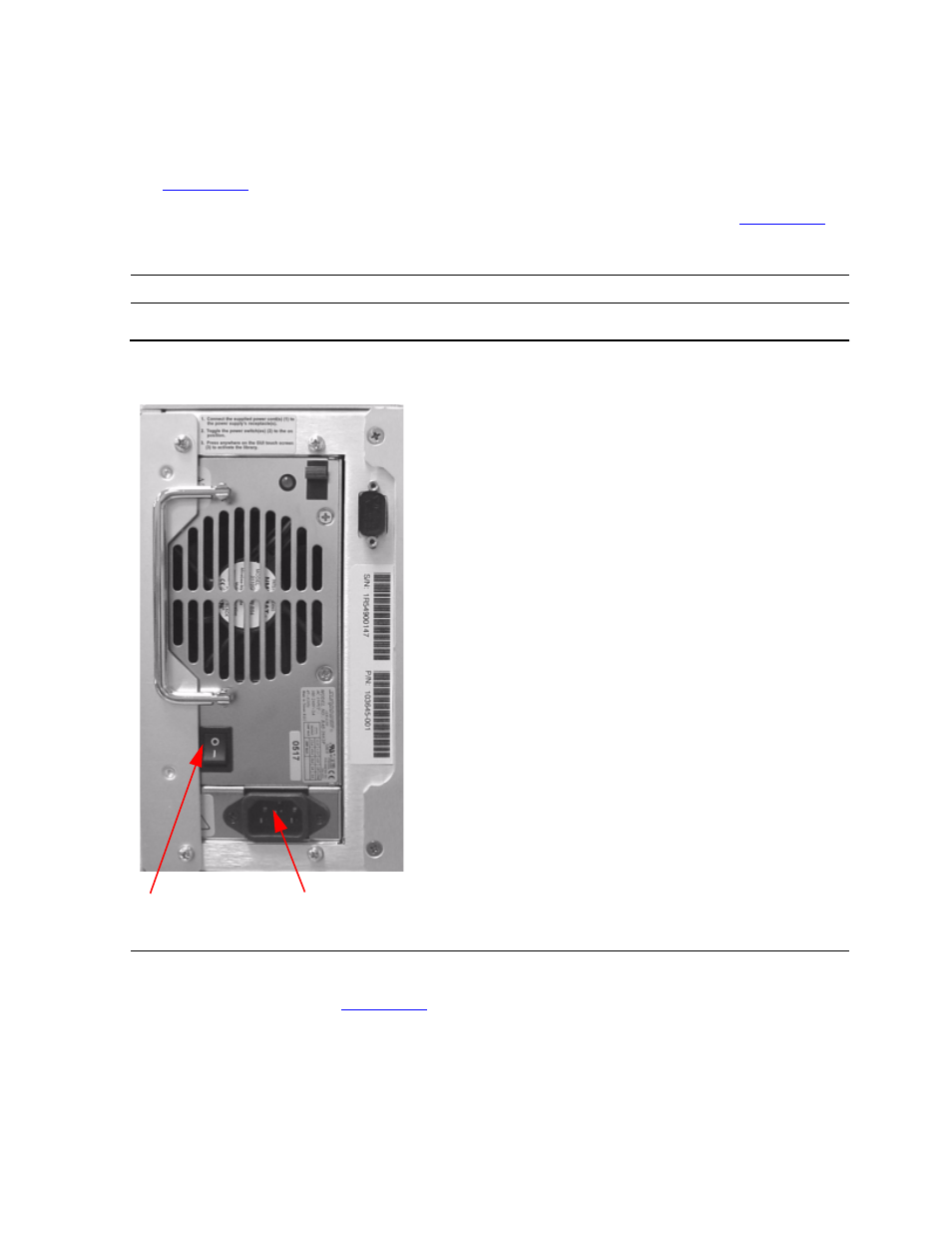

Figure 3-3. View of Power Switch and Power Receptacle
Power Switch AC Power Receptacle
